IR Dome Camera 1/3 SONY CMOS 1200TVL 3.6mm lens 1 LED Array 82ft IR

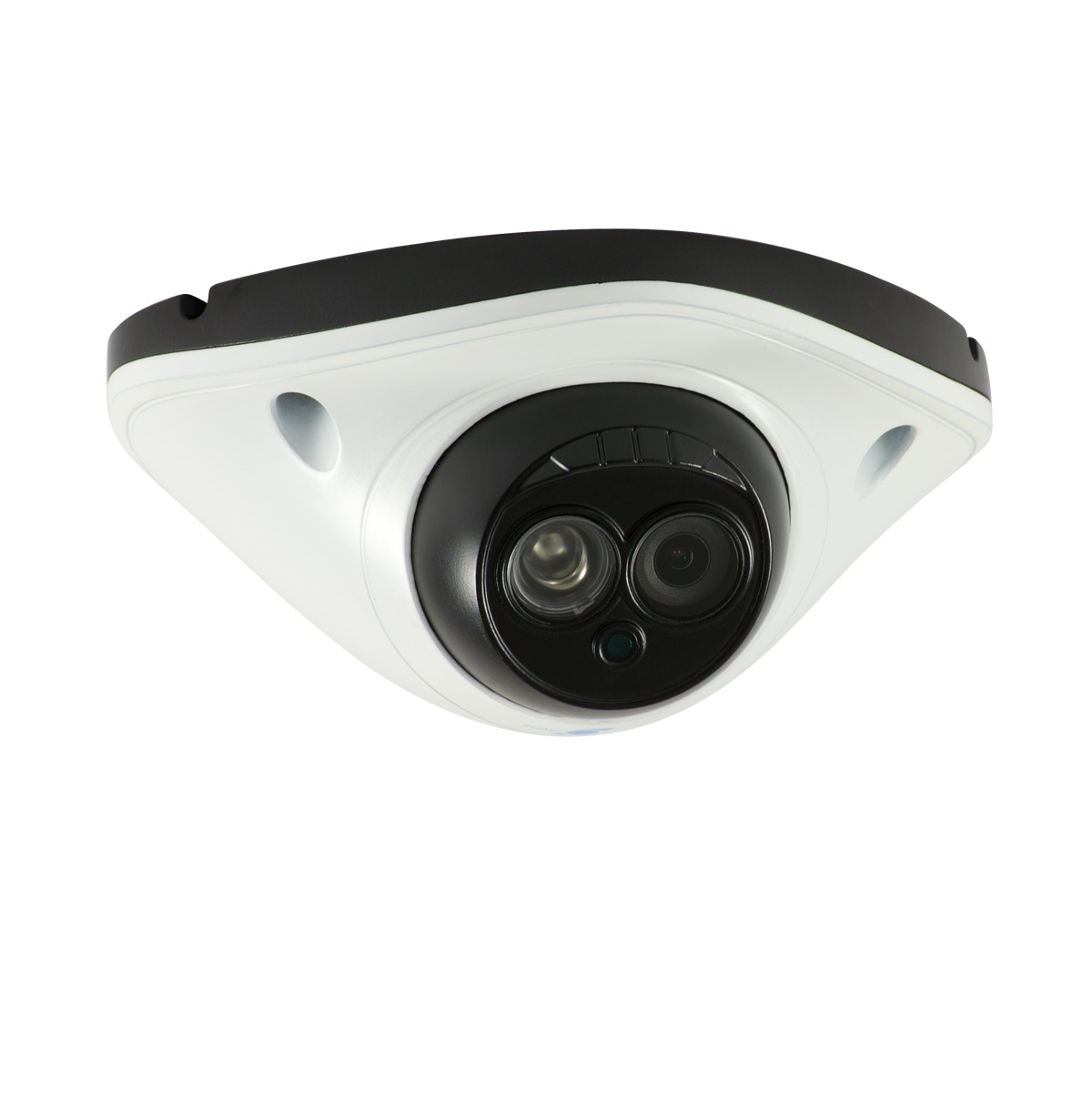

  • IR Dome Camera 1/3 SONY CMOS 1200TVL 3.6mm lens 1 LED Array 82ft IR - Image 1

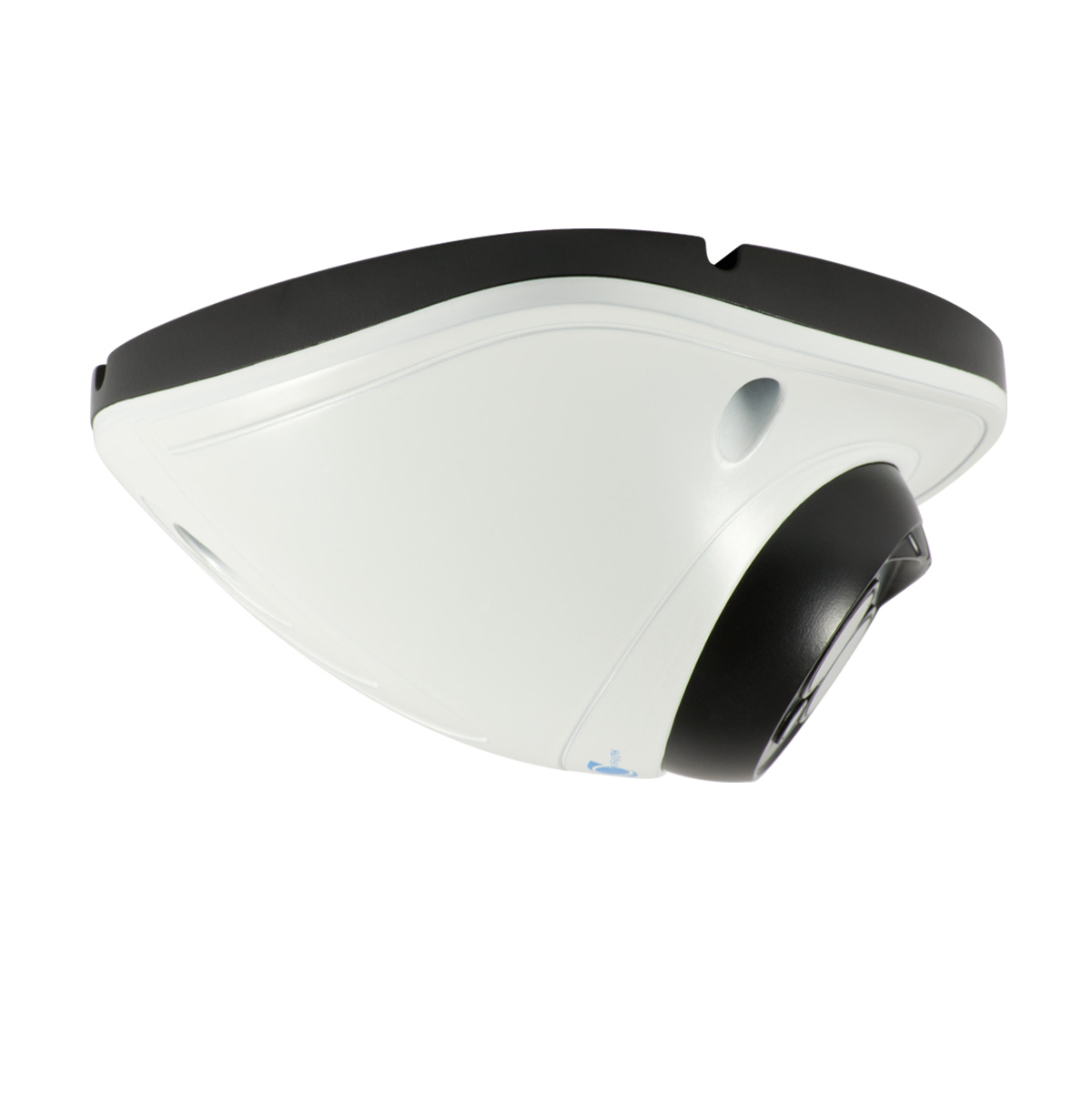

  • IR Dome Camera 1/3 SONY CMOS 1200TVL 3.6mm lens 1 LED Array 82ft IR - Image 2

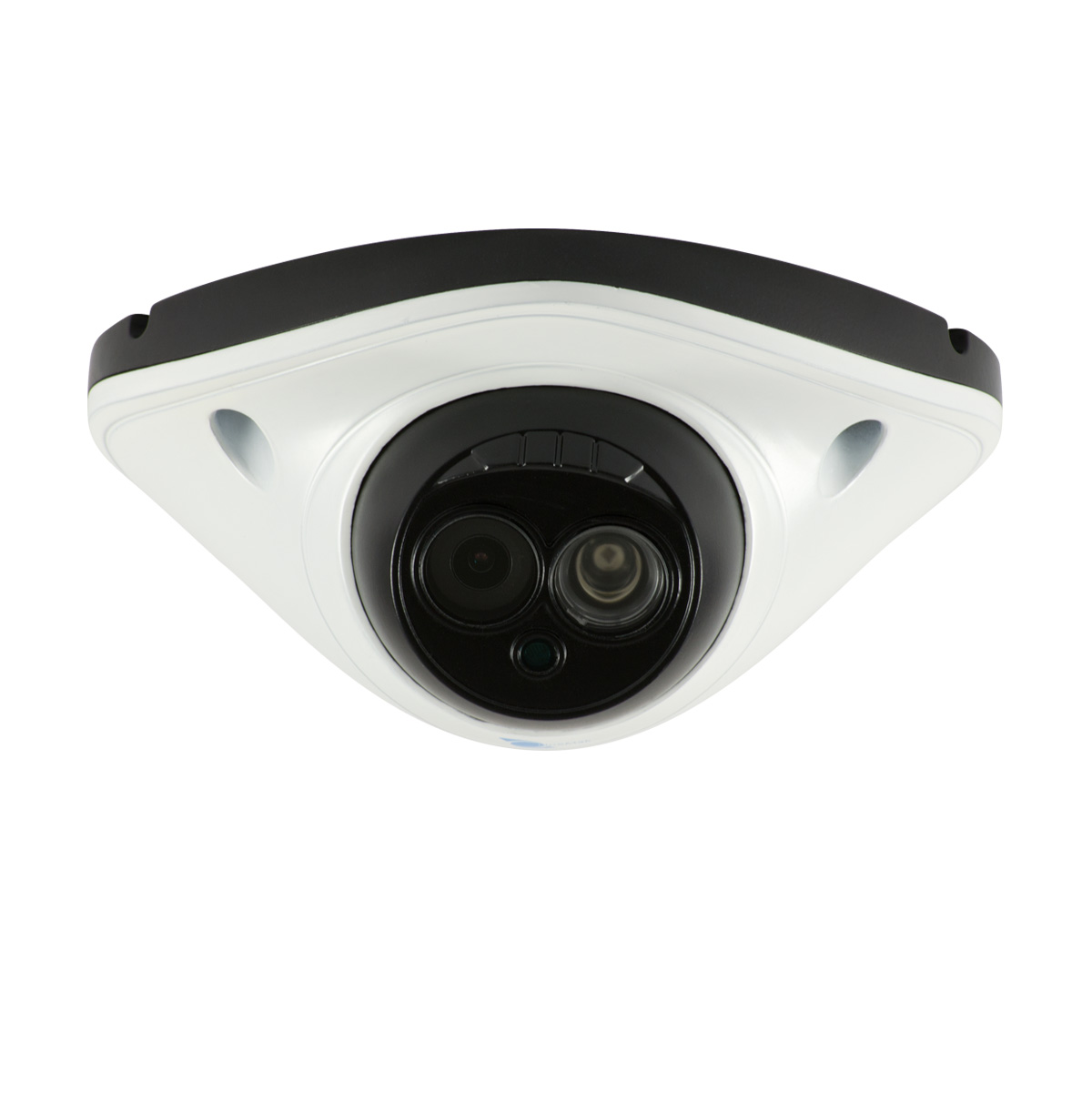

  • IR Dome Camera 1/3 SONY CMOS 1200TVL 3.6mm lens 1 LED Array 82ft IR - Image 3
  • - 1/3" SONY Exmor CMOS Sensor.
  • - 1200TVL.
  • - 1 LED Array. 82ft IR distance.
  • - Power adapter not included.
  • - 3.6mm lens.
  • - 92° viewing angle.
  • IR high-resolution camera with a 3.6mm lens and a viewing angle of 92° which has an 82ft range of infrared night vision thanks to its LED array type. Available in white.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Recommendations:
    - Power camera by using an individual power source.
    - Never point the camera towards the sun.
    - Do not operate camera beyond its temperature, humidity or power source ratings.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - 1/3" SONY Exmor CMOS.
    - 1200TVL.
    - IR 82ft. 1 LED array.
    - 3.6mm lens.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    LED array
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    True round-the-clock surveillance for illuminant/dark places
    True round-the-clock surveillance for illuminant/dark places
    This feature delivers a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications that deliver clear and sharp color images in illuminant areas and black and white images in dark areas using infrared illumination, without the need to refocus the lens.
    Warranty: One (1) Year
  • IR Dome Camera 1/3 SONY CMOS 1200TVL 3.6mm lens 1 LED Array 82ft IR
    General
    Brand LineMak
    Model LS-618SH
    Sensor
    Resolution 1200TVL
    Sensor 1/3" SONY Exmor CMOS
    Effective pixels 1280*960
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm (BNC Connector)
    Scanning Area 4.9mm*3.7mm
    Lens
    Lens 3.6mm
    IR Range 49ft ~ 82ft night vision
    IR-CUT Filter Yes
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 92°
    Environment
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Power
    Power supply DC 12V
    Power consumption 100mA (with LED on 350mA)
    Appearance
    Color White
    Size 2.95(L) * 4.33(H) * 4.33(W) inches
    Weight 13.76 ounces
    Material Aluminum
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) No
    Electronic shutter speed (AES) PAL: 1/50~1/100,000s
    NTSC: 1/60~1/100,000s
    Auto Gain Control (AGC) No
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Mirror No
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Synchronizing system Internal
    S/N Ratio >50dB
  • Instructions
    File Size: 384.05 Kb
    Languages: English
    File Type: PDF
