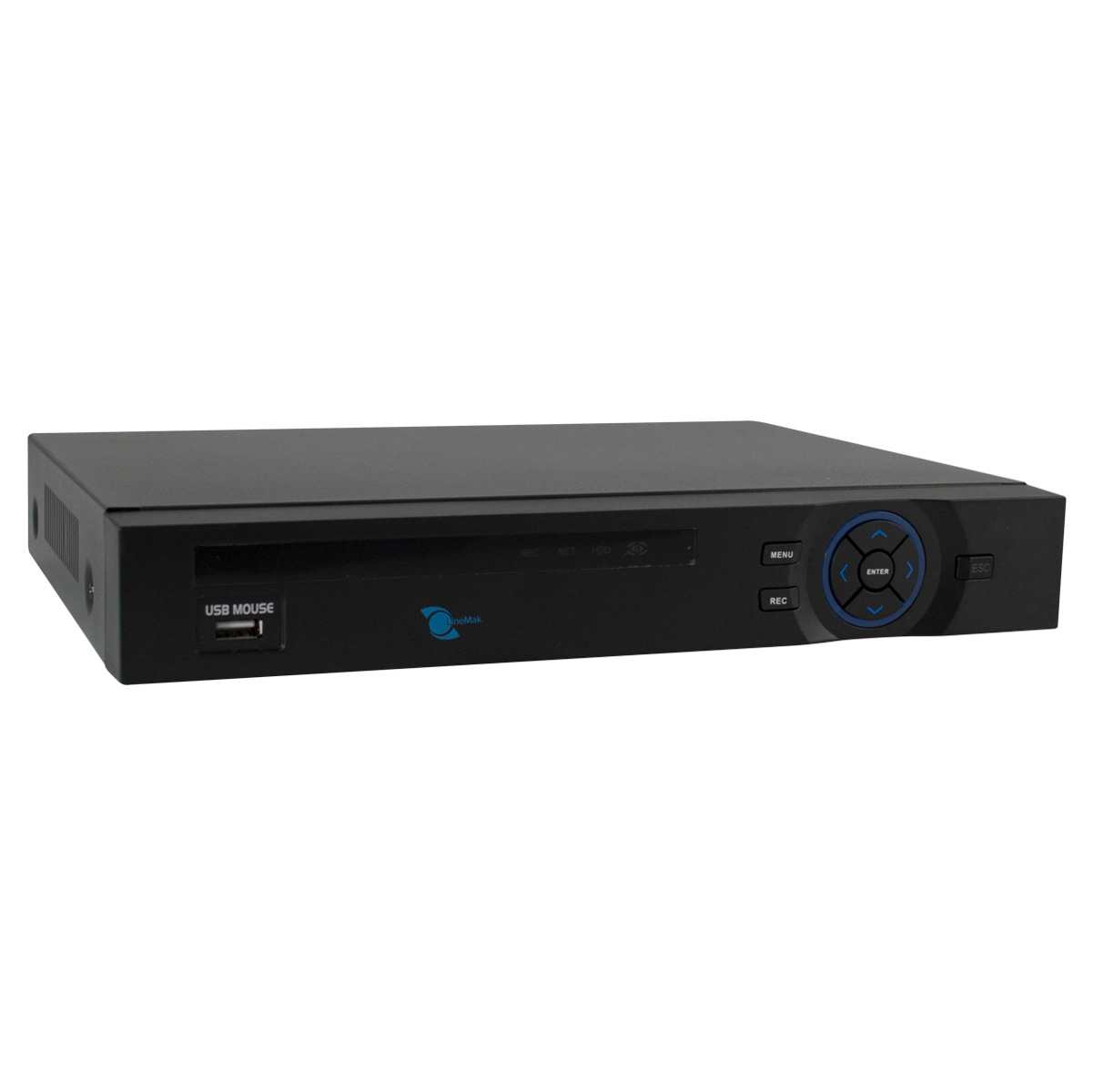

16Ch DVR, H264/G711A, VGA/BNC/HDMI output, CIF resolution, Pentaplex
  • 16Ch DVR, H264/G711A, VGA/BNC/HDMI output, CIF resolution, Pentaplex - Image 1
  • 16Ch DVR, H264/G711A, VGA/BNC/HDMI output, CIF resolution, Pentaplex - Image 2
  • 16Ch DVR, H264/G711A, VGA/BNC/HDMI output, CIF resolution, Pentaplex - Image 3
  • 16Ch DVR, H264/G711A, VGA/BNC/HDMI output, CIF resolution, Pentaplex - Image 4
  • - Full CIF recording.
  • - H.264 compression algorithm.
  • - BNC, VGA and HDMI output.
  • - Hard drive and remote control not included.
  • - Mobile surveillance: iOS and Android.
  • - Powerful network software.
  • This easy to use DVR (Digital Video Recorder) with 20 different languages, menu and simultaneous BNC, VGA and HDMI outputs. Monitor your cameras on the internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time. Its H.264 compression algorithm is ideal for standalone DVR.

    This video surveillance equipment can record images registered by their cameras and is very easy to use.

    Multiple recording modes: Manual, alarm, motion detection and continuous.
    Multiple control methods: Front panel, USB mouse, network controller.
    Compatible with WIN98 / WIN2000 / WIN ME / WIN XP / VISTA WIN / WIN SEVEN.
    Pentaplex function: live display, recording, playback, backup and remote access.

    Main features:
    - H.264 main profile compression algorithm ideal for standalone DVR.
    - 16 channels real time full CIF recording and real time multi channels playback.
    - VGA output and TV output support at the same time, genuine high-definition VGA output.
    - Network and mobile remotely monitoring support such as iPhone, Blackberry, Android, Symbian and Windows mobile, module by USB 2.0 port.
    - Multiple control methods: front panel, IR remote controller, USB mouse.
    - 2 USB 2.0 port support for mouse, backup, DVD-RW, movable hard disk, upgrade, etc.
    - Alarm triggering screen tips, buzzer, PTZ preset, email, snapshot.
    - Smart HDDs Management: non-working HDD hibernation, HDD faulty alarm, raid function.
    - Powerful network software: built-in web server, multi-DVR client and SMS Networking access for remote live viewing, recording, playback, setting, system status, event log, email and FTP function.
    - DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions support, support WEB client, standalone client and SDK.
    - With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up.
    - Support of 20 kinds of languages such as English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish, Vietnamese, Ukrainian, Romanian, Brazilian, Korean.

    Power adapter not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Remote control not included.
    HDMI delivers enhanced image clarity
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Keep everything under watch with multiple recording modes
    Accurate alarm recording allows you to cover the whole event
    Accurate alarm recording allows you to cover the whole event
    This feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Backup for saving critical video evidence
    Save money with no contracts and no monthly fees
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Warranty: One (1) Year
  • 16Ch DVR, H264/G711A, VGA/BNC/HDMI output, CIF resolution, Pentaplex
    General
    Brand Linemak
    Model LS-SEDVR6316FB
    System
    Main processor High performance embedded microprocessor HI3520D
    Operating system Embedded LINUX
    System resources Pentaplex function: Live, recording, playback, backup, and remote access
    Display
    Display area 1/4/8/9/16
    Graphic user interface (GUI) On-screen menu tips
    Video
    Video format PAL / NTSC
    Compression format H.264 main profile
    Motion detector 396 (22*18) detection zones, Sensitivity: 1-6 (6 is highest) Trigger recording, PTZ movement, tour, alarm, email, snapshot, FTP
    Encode capacity PAL: 25/400fps
    NTSC: 30/480fps
    Frame rate PAL: 625 line, 50fps
    NTSC: 525 line, 60fps
    Video recording PAL: 1fps~25fps
    NTSC: 1fps~30fps
    Audio
    Audio compression G.711A
    Bidirectional talk Support
    Recording & Playback
    Recording mode Manual, alarm, video detection, continuous
    Local playback 16 simultaneous channels
    Search mode Time/date, alarm, motion detection, exact search (accurate to second)
    Storage & Backup
    Space ocupation Audio: 28.8MB/H
    Video: 25~450 MB/H
    Recording storage Local Hard disk and Network
    Backup mode Network download / Flash stick / movable HDD / SATA HDD / DVD-RW

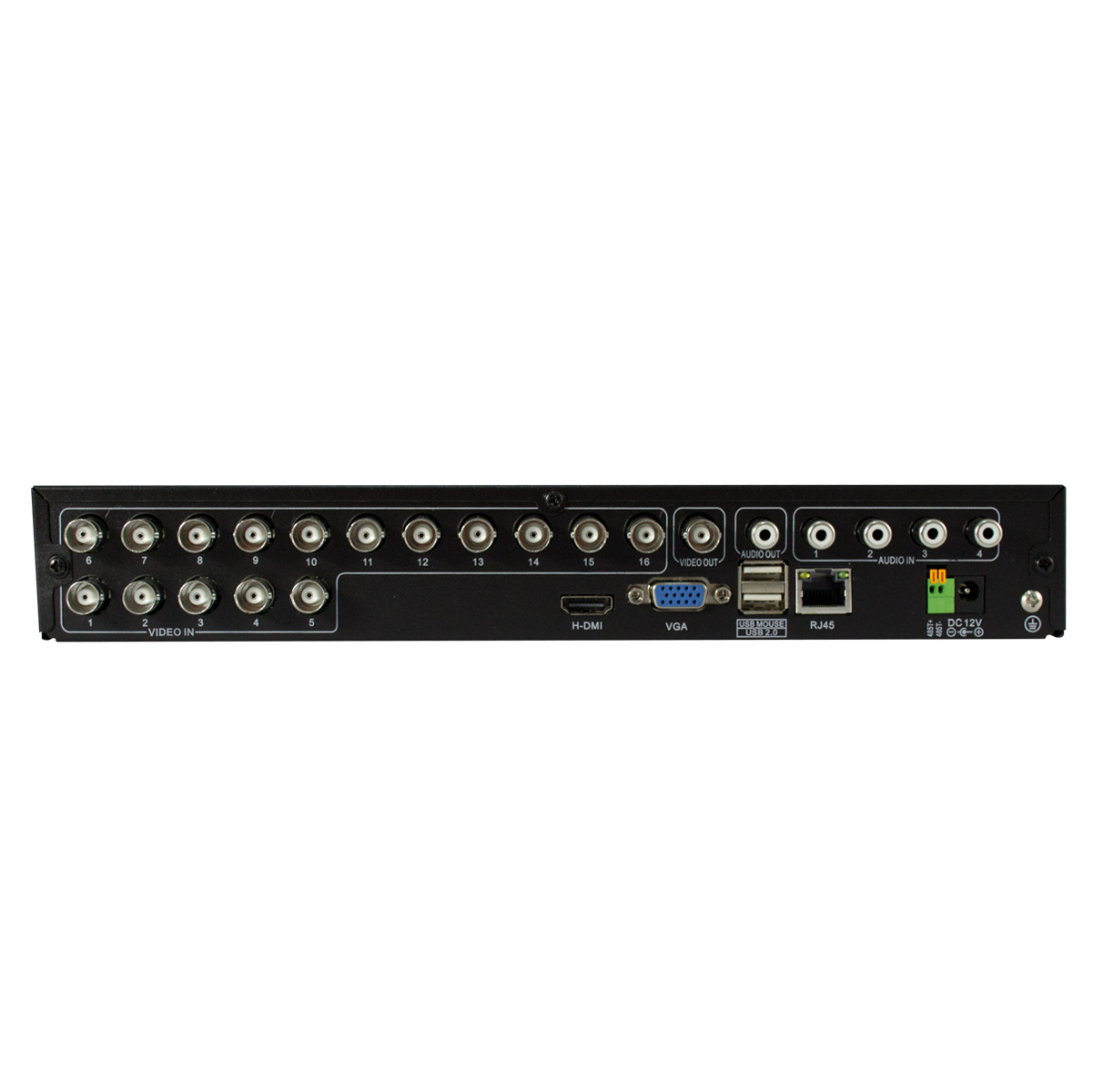

    Interface
    Video input/output Input: 16-Ch BNC
    Output: 1-Ch BNC, 1-Ch HDMI and 1-Ch VGA
    Audio input/output Input: 4-Ch
    Output: 1-Ch
    PTZ Control 1 RS485 port
    USB Port 3 USB 2.0
    HDD Port 1 SATA HDD port (up to 3TB each)
    Network interface 1 RJ-45 (10M/100M) port
    Mode control
    Operating mode Front panel, remote control, USB mouse, network controller
    Environment
    Operation temperature 0°C ~ 55°C
    32ºF ~ 131ºF
    Working humidity 10% ~ 90%
    Atmosphere pressure 86kpa ~ 106kpa
    Power
    Power supply 12V/3A
    Power consumption <10W (not include Hard disk)
    Appearance
    Color Black
    Size 9.45(L) * 1.78(H) * 12.21(W) inches
    Weight 2.7 pounds

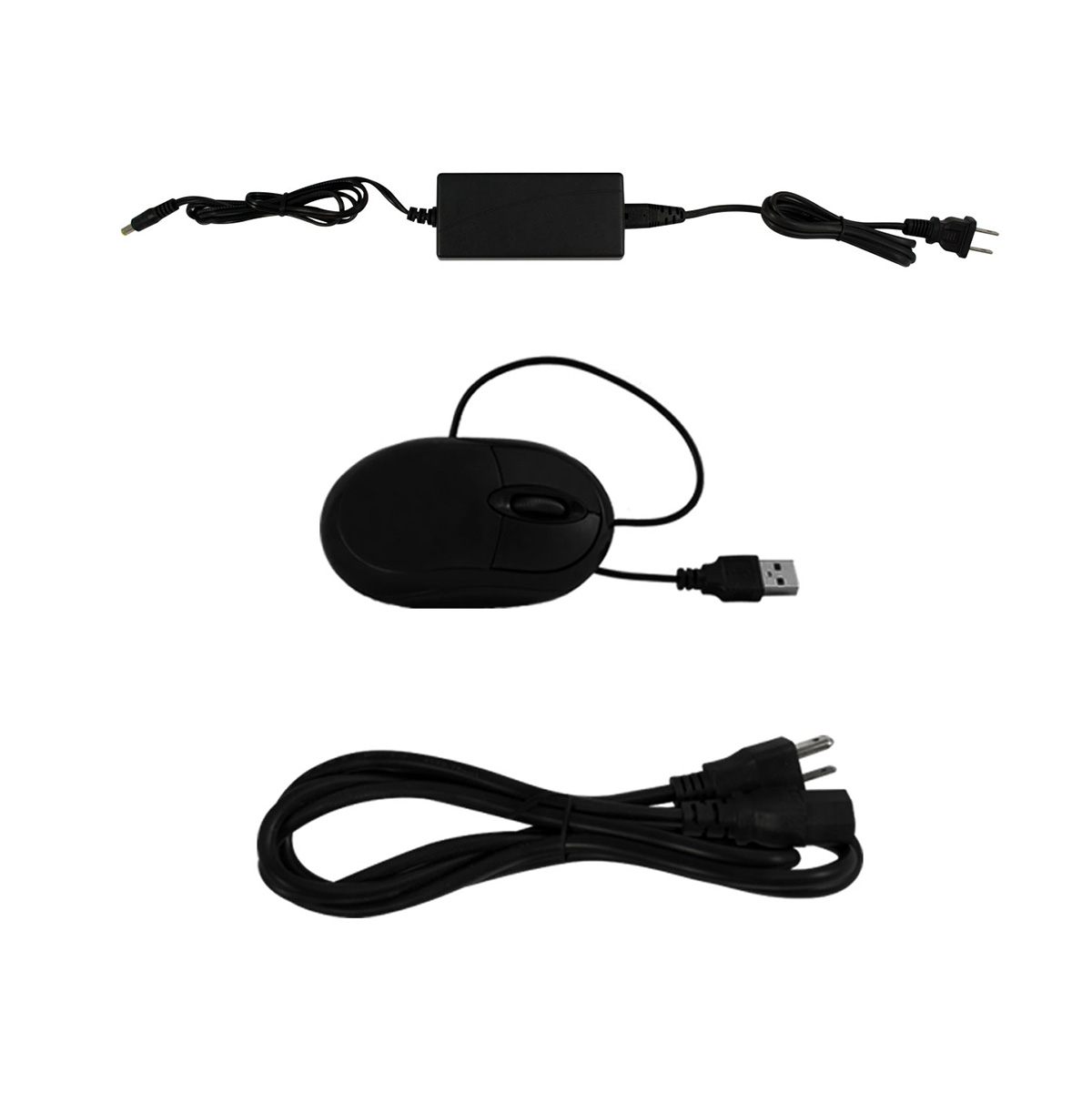

    Accessories
    Mouse Yes
  • Manual
    File Size: 2303.42 Kb
    Languages: English
    File Type: PDF
    Instructions
    File Size: 2202.33 Kb
    Languages: English
    File Type: PDF
