1 Channel passive Video balun 1082ft, Contains 6 Pairs (12 Pcs)

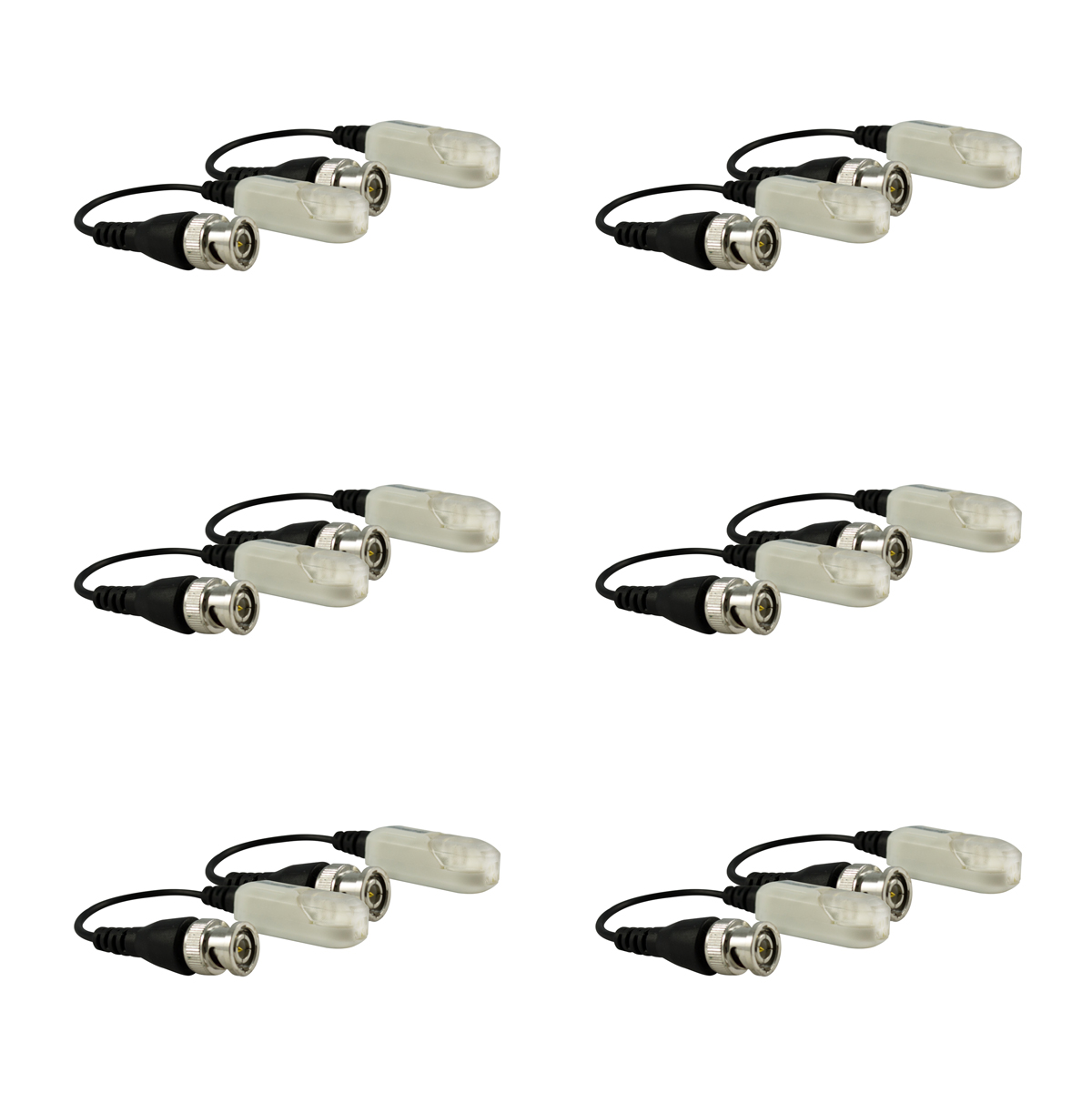

  • 1 Channel passive Video balun 1082ft, Contains 6 Pairs (12 Pcs) - Image 1

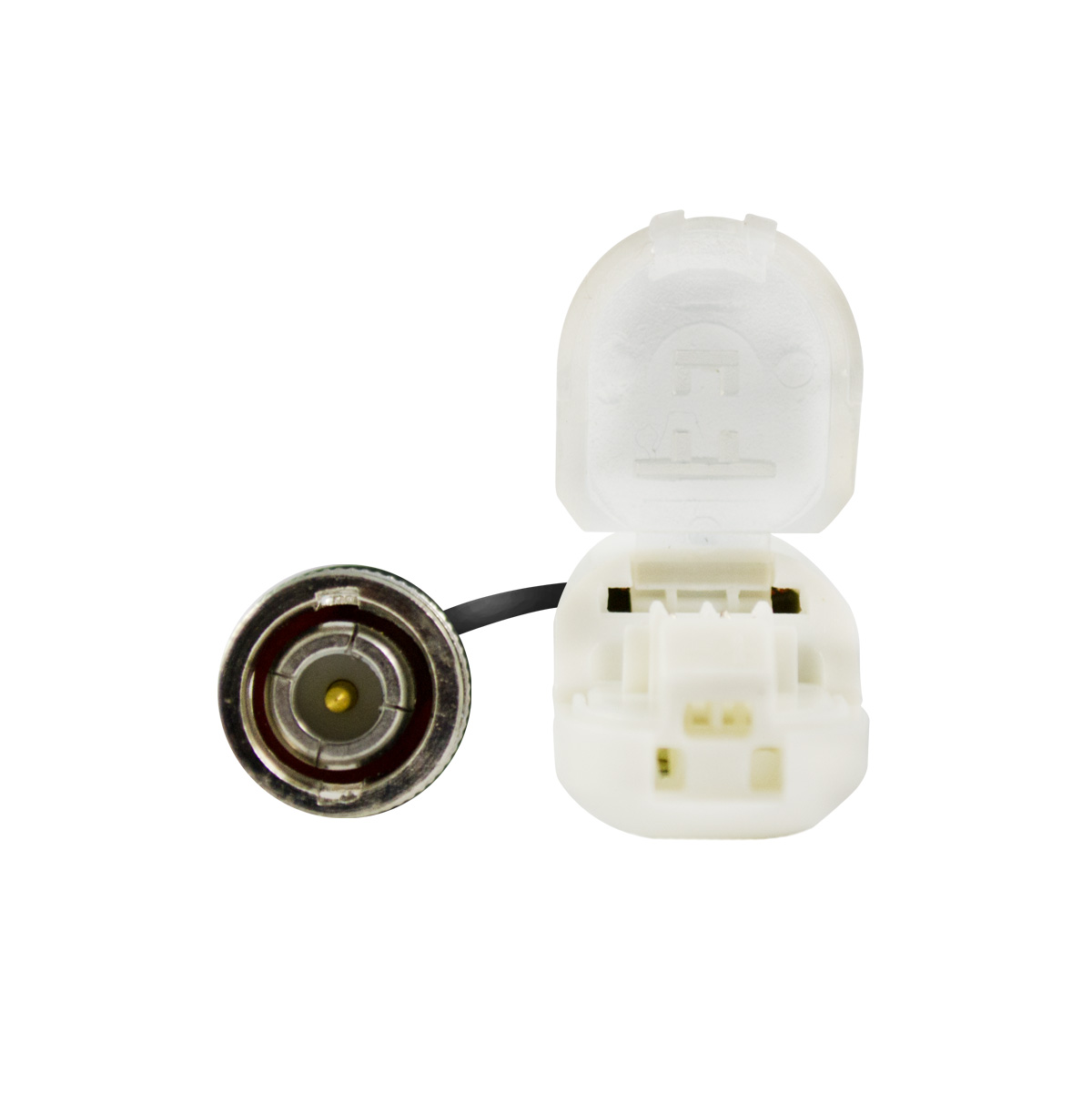

  • 1 Channel passive Video balun 1082ft, Contains 6 Pairs (12 Pcs) - Image 2

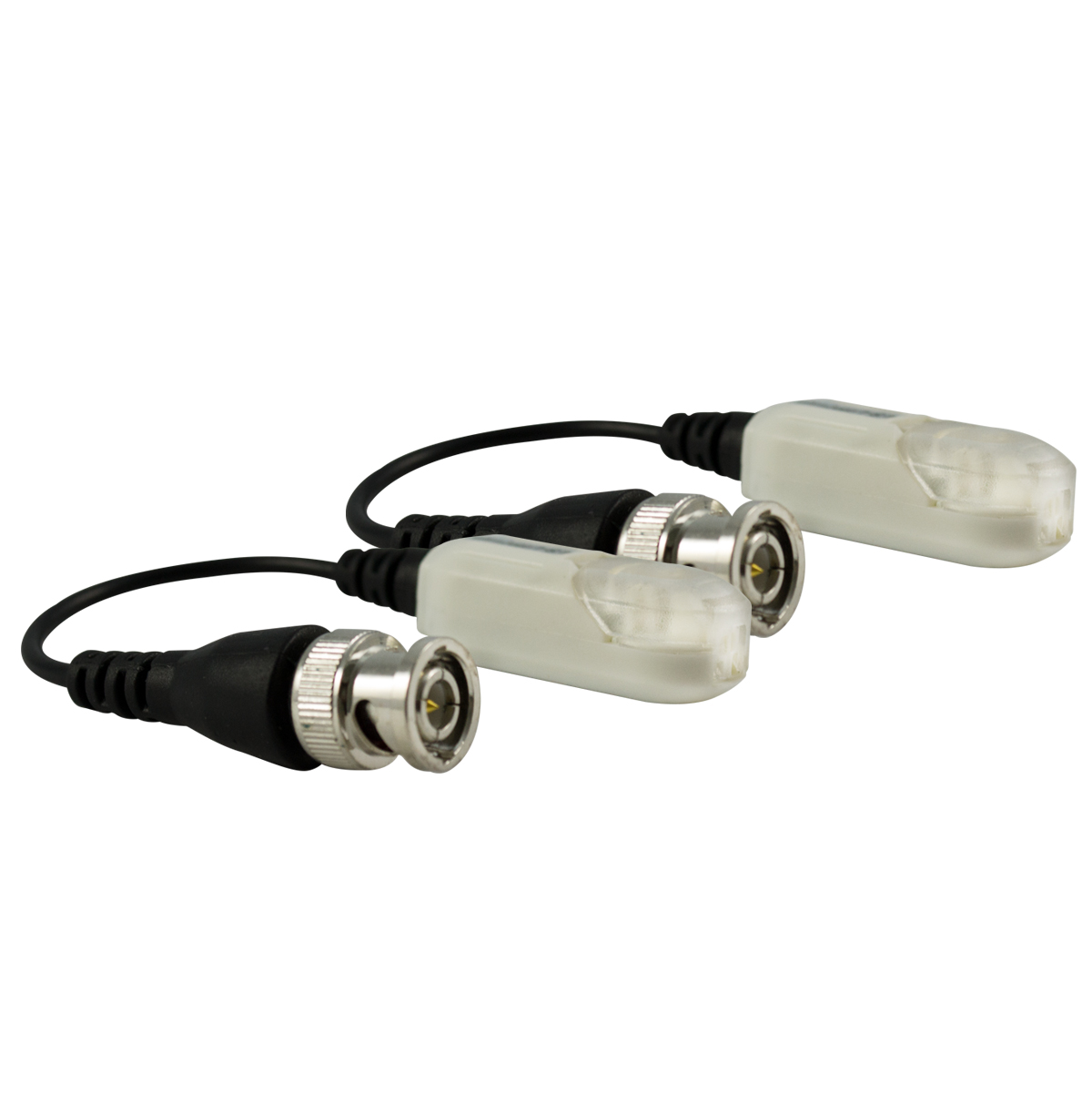

  • 1 Channel passive Video balun 1082ft, Contains 6 Pairs (12 Pcs) - Image 3

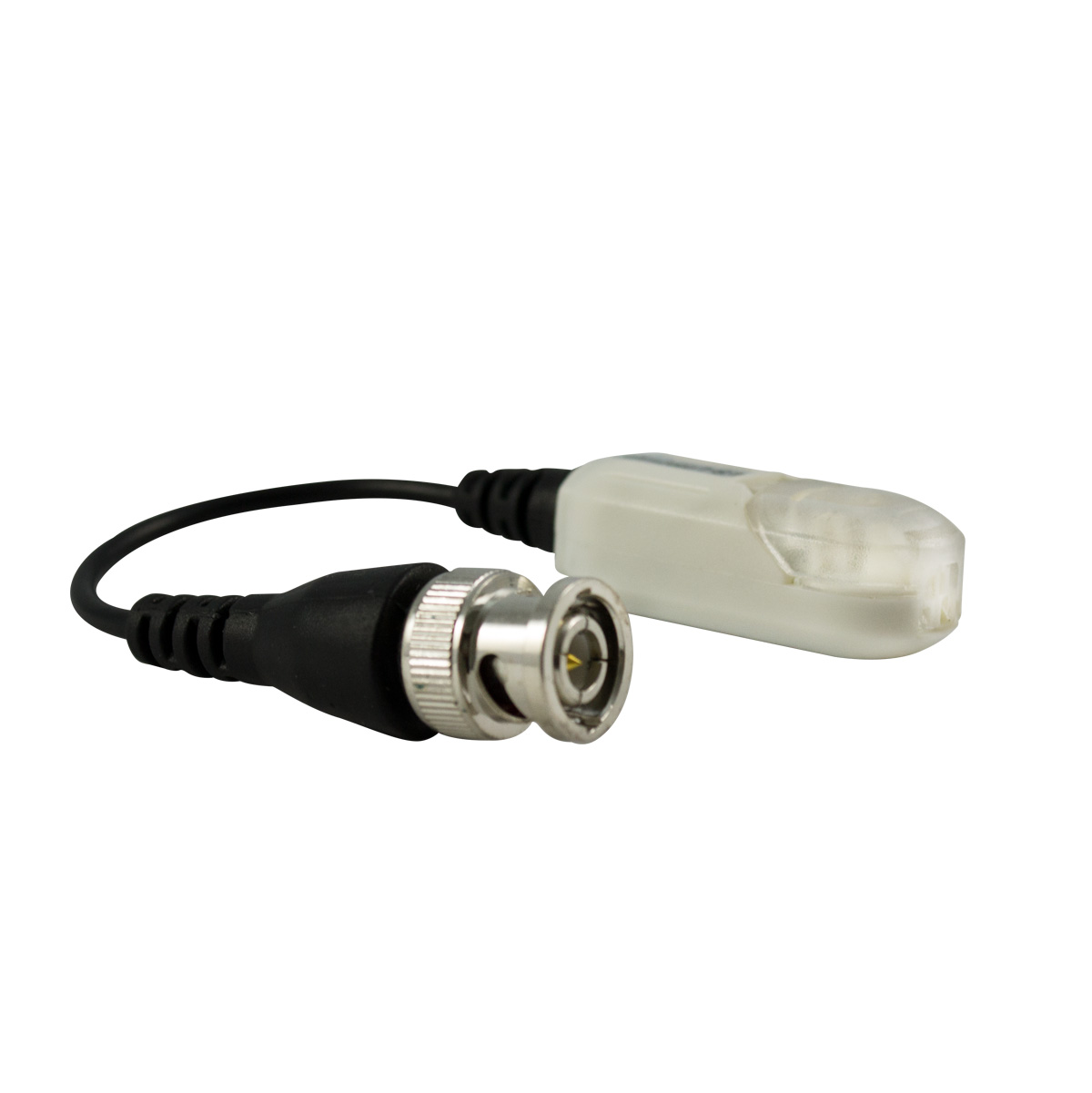

  • 1 Channel passive Video balun 1082ft, Contains 6 Pairs (12 Pcs) - Image 4

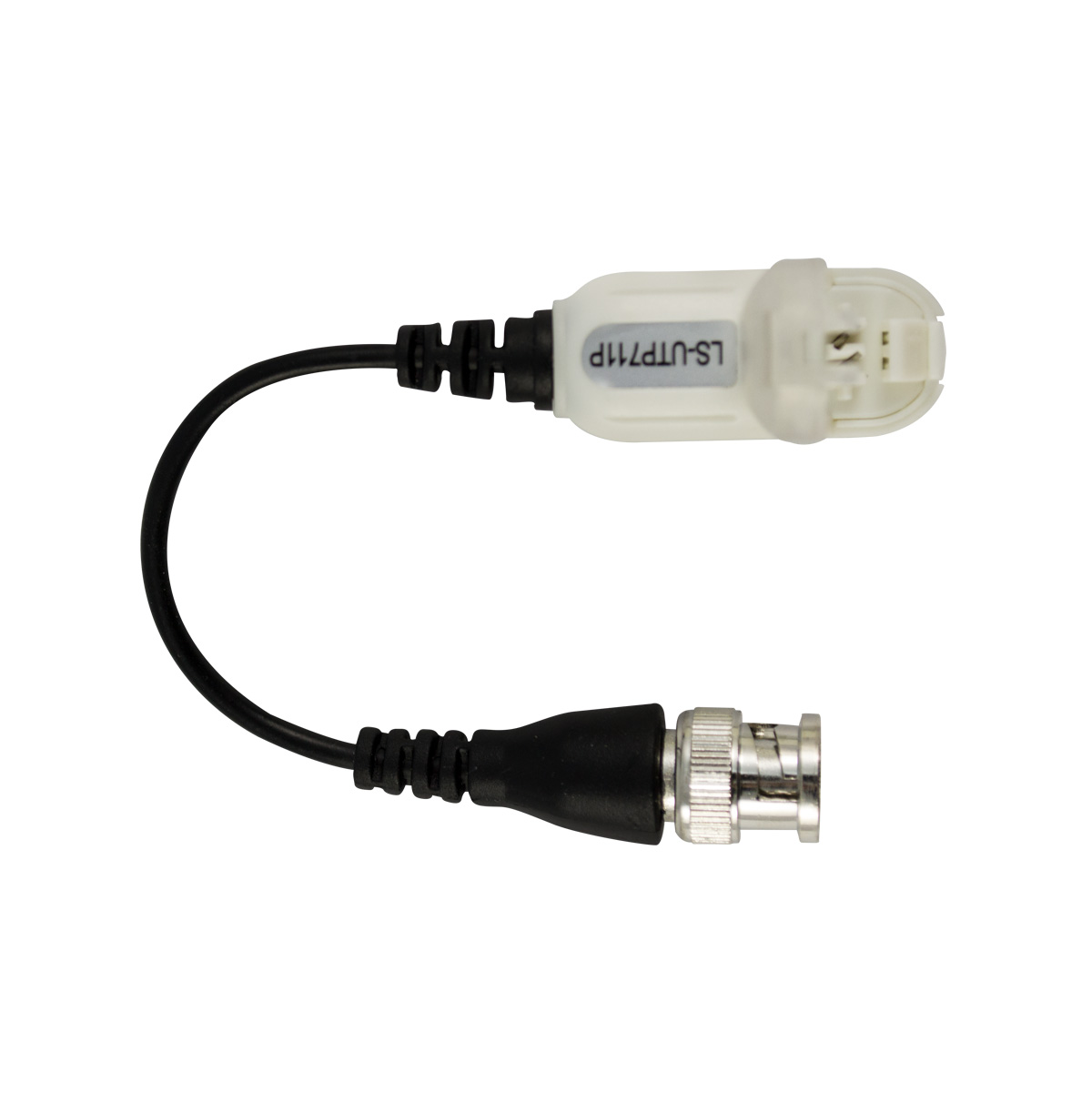

  • 1 Channel passive Video balun 1082ft, Contains 6 Pairs (12 Pcs) - Image 5

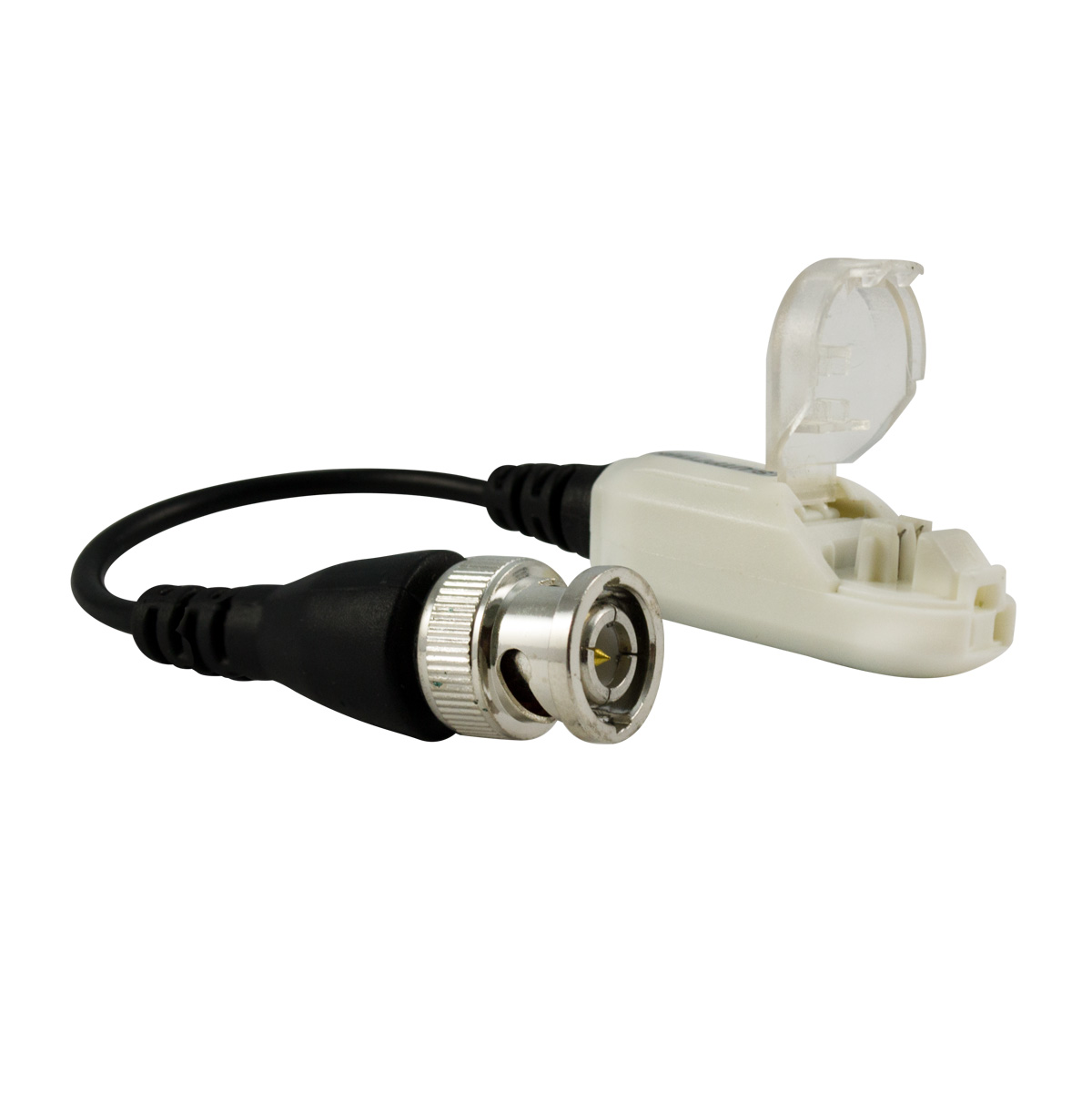

  • 1 Channel passive Video balun 1082ft, Contains 6 Pairs (12 Pcs) - Image 6
  • - Contains 6 Pairs (12 Pcs).
  • - Up to 1500m with any active UTP video receiver.
  • - Easy installation.
  • - NTSC, PAL and SECAM.
  • - Compact size.
  • - No power required.
  • LS-UTP711P

    Main features:
    - Full-motion CCTV video at distances up to 330m when used with passive transceiver
    - Up to 1500m with any active UTP video receiver.
    - Tool-less,installs in seconds,no need to strip the wires.
    - NTSC, PAL, and SECAM video formats.
    - No power required.
    - 60 dB crosstalk and noise immunity.
    - Compact size and easy installation
    Warranty: One (1) Year
  • 1 Channel passive Video balun 1082ft, Contains 6 Pairs (12 Pcs)
    General
    Brand Linemak
    Model LS-UTP711P
    Video Balun
    Frequency response DC to 8MHz
    Attenuation 0.5dB typ
    Common mode rejection ratio 60dB
    Video Properties NTSC, PAL, and SECAM video formats
    Video Connector BNC: 75ohms
    Terminal: 100ohms
    Environment
    Operation temperature -10ºC to 70ºC
    Storage temperature -30ºC 70ºC
    Working humidity 0 to 95%
    Appearance
    Color White
    Size 6.69(L) * 0.59(H) * 0.39(W) inches
    Weight 1.41 ounces
    Material ABS Plastic
