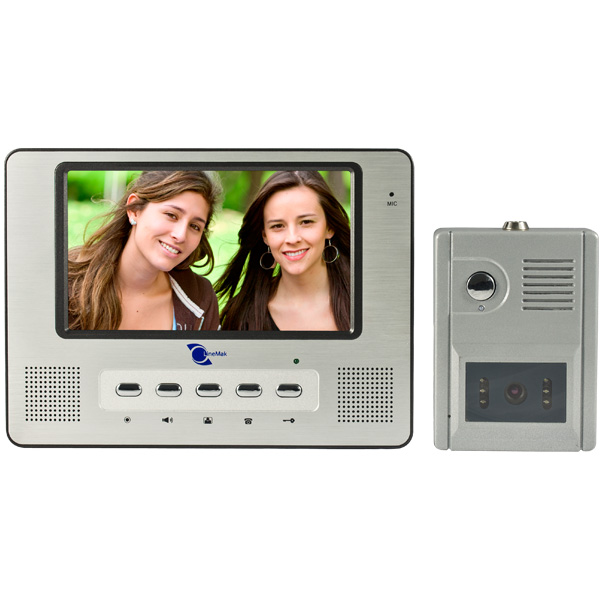

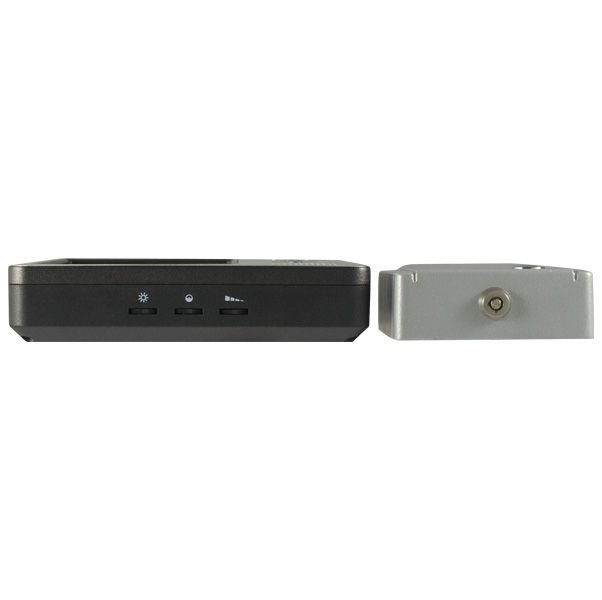

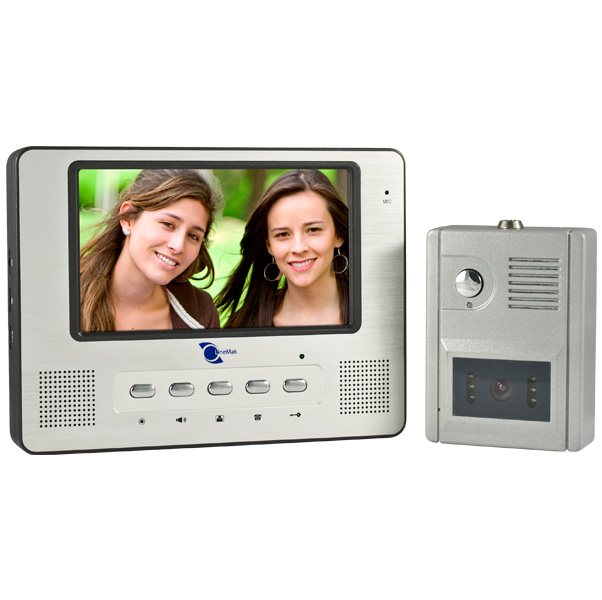

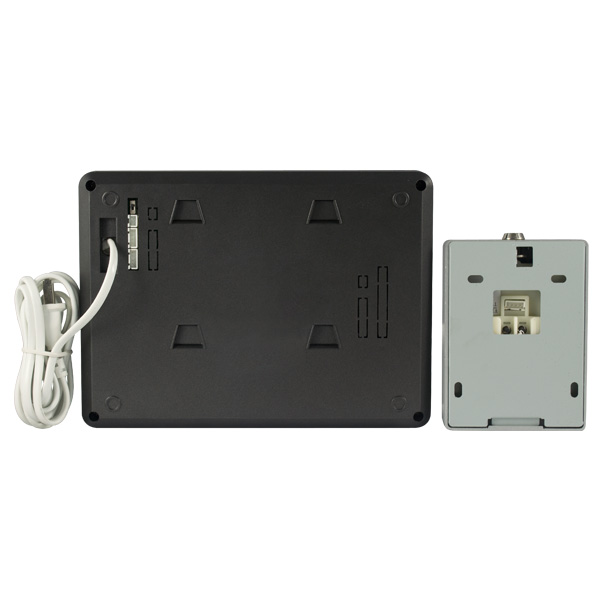

Video intercom system with LCD screen 7 inches
  • Video intercom system with LCD screen 7 inches - Image 1
  • Video intercom system with LCD screen 7 inches - Image 2
  • Video intercom system with LCD screen 7 inches - Image 3
  • Video intercom system with LCD screen 7 inches - Image 4
  • - 7" color LCD screen.
  • - Camera 3.6mm lens.
  • - 1/3" CMOS Sensor pinhole.
  • - New ABS plastic indoor panel and outdoor camera.
  • - You can store up to 150 photos.
  • - Microphone.
  • Screen features:
    - LCD screen 7".
    - Microphone.
    - Horn of audio.
    - Image capture.
    - Record videos.
    - Date and time display.
    - Menu settings (brightness, contrast, volume and ringtones).
    - You can store up to 150 photos.

    Exterior camera:
    - Camera 3.6mm.
    - Microphone.
    - Horn of audio.
    - Call button.
    - Accepts connection of 2 or more monitors to the same camera.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Microphone
    Add a microphone to any surveillance system with audio input. The CCTV microphone is typically used as an add-on to CCTV cameras that do not have built-in audio. This microphone is stand-alone as it does not rely on the power source from a security camera. Plug and play cables can be used with these microphones to easily run both the audio and power centrally back to the DVR.
    Microphone
    Pinhole
    Pinhole
    A Pinhole consists of a camera which works without a lens, but carries a small aperture through which the recording is made. Typically, the smaller the hole, the sharper the image, but dimmer its projection.
    Warranty: One (1) Year
  • Video intercom system with LCD screen 7 inches
    General
    Brand LineMak
    Model LS-VD708CM
    LCD Panel
    Monitor 7" TFT-LCD
    Resolution 1440*234
    Sensor
    Resolution 420TVL
    Sensor 1/3" Pinhole color CMOS
    Video
    Video format NTSC/PAL
    Video output 1.0Vp-p, 75ohm
    Lens
    LEDs 6 LEDs
    Minimum illumination 1.5 Lux@F6.0
    Viewing angle 70°
    Environment
    Operation temperature Camera: -20 ~ 50°C / -4ºF ~ 122ºF
    Power
    Power supply Screen: AC 110-250V
    Camera: DC 12V
    Power consumption Screen: Standby: 130mW / Working: 14W
    Camera: 3W
    Appearance
    Size Screen: 1.58(L) * 6.3(H) * 8.86(W)
    Camera: 1.19(L) * 5.12(H) * 3.55(W) inches
    Weight Screen: 1.45 pounds
    Camera: 10.41 ounces
    Standard
    Lock connection To camera
    Mounting Desktop / wall-mounted
  • Manual
    File Size: 1166.08 Kb
    Languages: Español
    File Type: PDF
