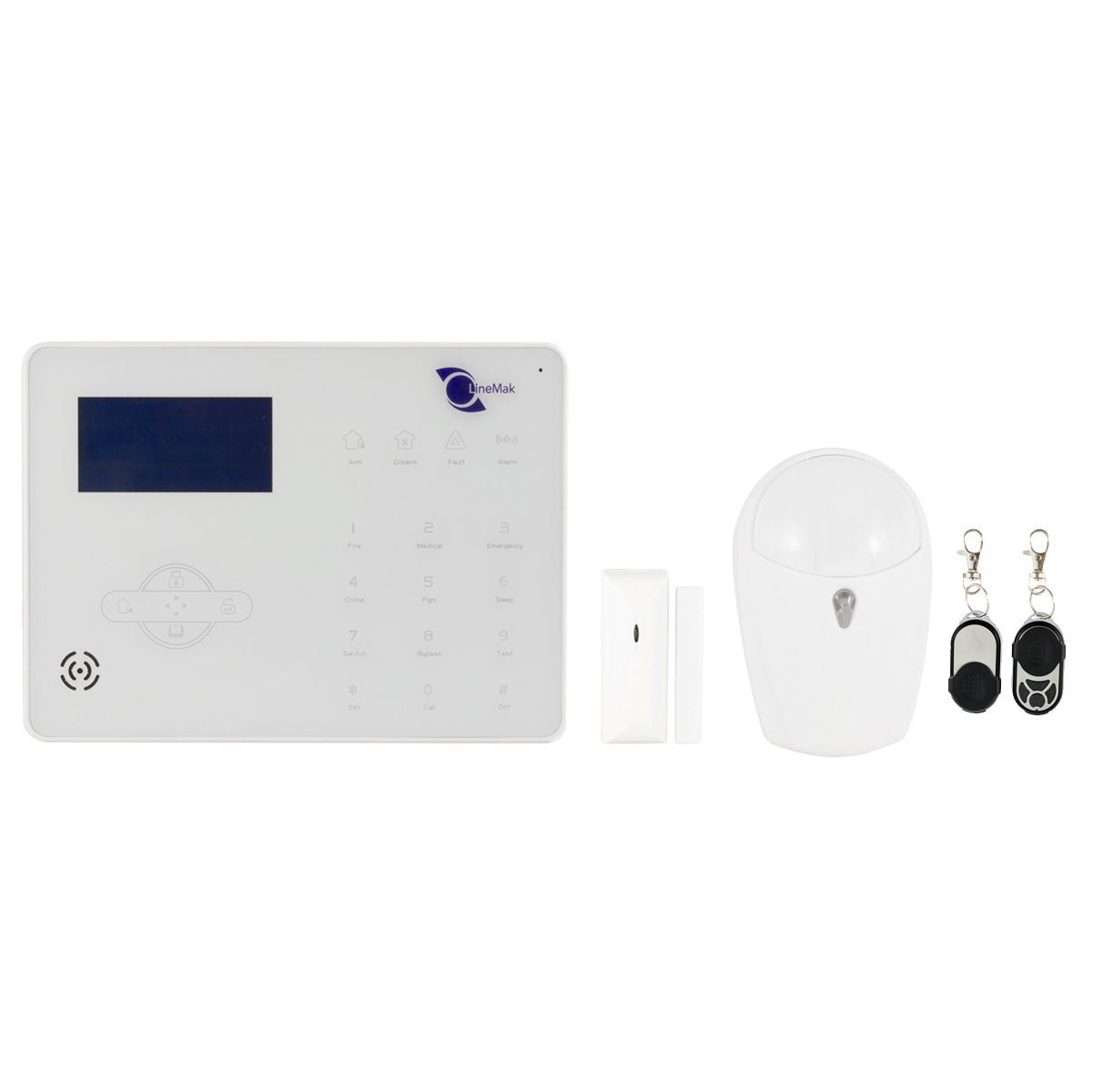

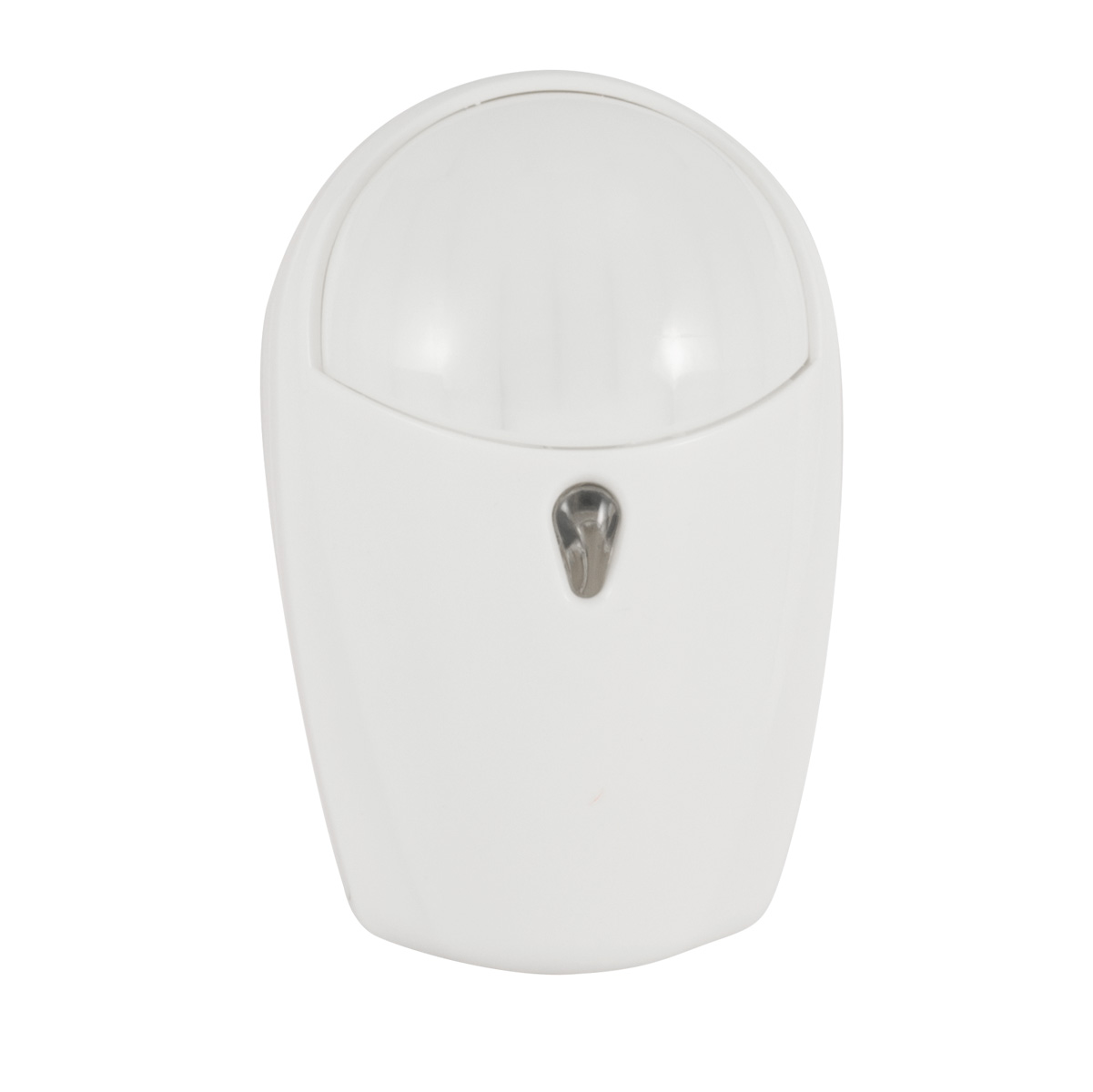

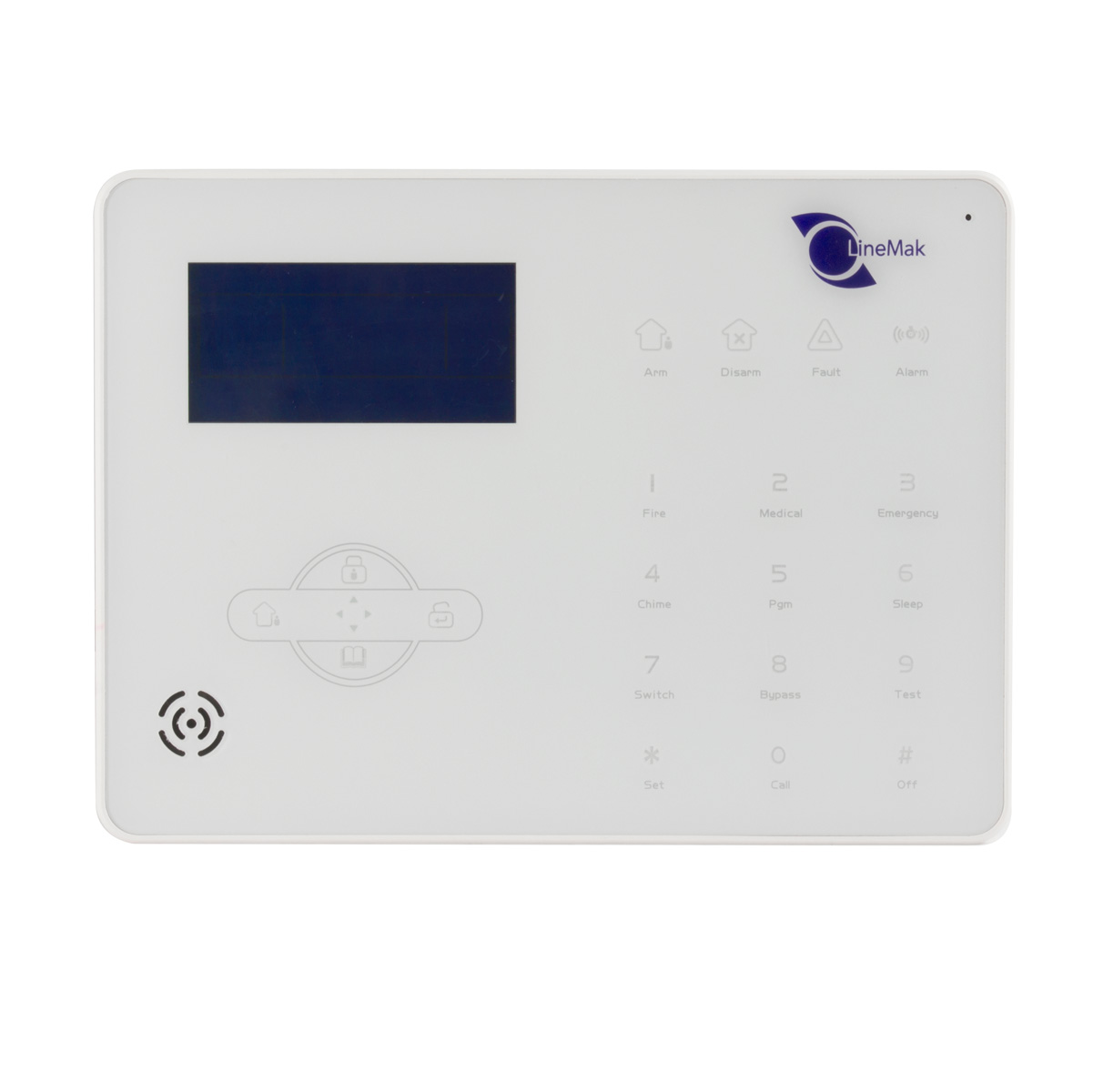

Central wireless / full wired alarm motion detector. DTMF GSM or GPRS.
|
|
General
|
|
Brand | LineMak |
Model | LA-S850 |
Alarms
|
|
Communication protocol | Ademco Contact ID |
Frequency | 433MHz / 868MHz |
Signal transmit distance | 328ft ~ 492ft (open area) |
Method of alarmaing dial | DTMF, GSM or GPRS |
DTMF dial frequencty variation | 1.5% |
Environment
|
|
Operation temperature | 0ºC ~ 45ºC 32ºF ~ 113ºF |
Storage temperature | -20ºC ~ 60ºC -4ºF ~ 140ºF |
Working humidity | 85% |
Power
|
|
Power supply | DC 15V |
Power consumption | 2000mA |
Battery | 11.1V / 1000mAh (built-in rechargeable) |
System static current | <50mA (exclude wireless detector) |
System alarm current | <300mA (exclude wireless high siren current) |
System maximum output current | <100mA (supply wireless detector) |
Appearance
|
|
Color | Plastic |
Size | 1.58(L) * 6.11(H) * 8.47(W) inches |
Weight | 1.23 pounds |
Manual |
![]() |
![]() |
![]() |
![]() |
Central Wireless/full wired alarm motion dete |
![]() |
![]() |
![]() |
![]() |
