Repeater/amplifier signal up to 4921ft for centrals

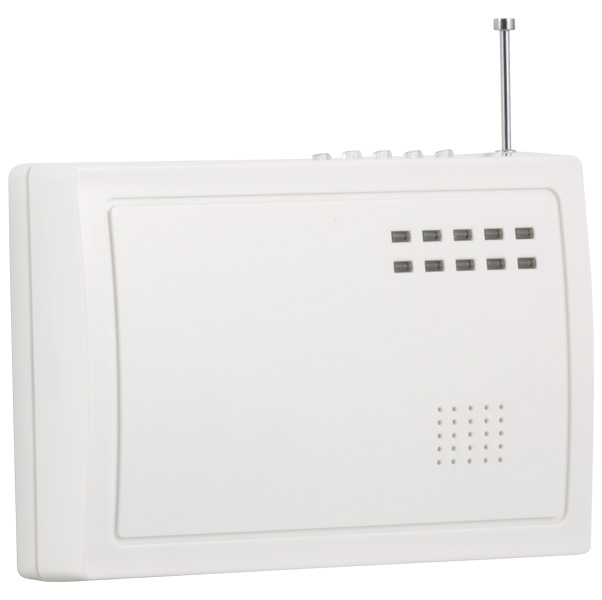

  • Repeater/amplifier signal up to 4921ft for centrals - Image 1

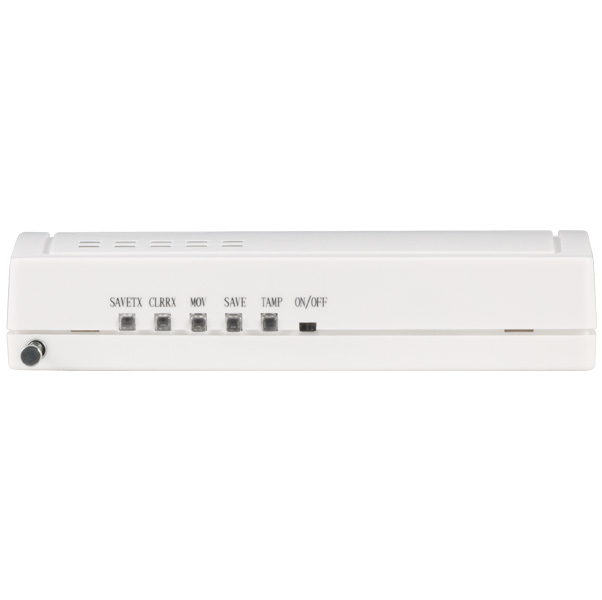

  • Repeater/amplifier signal up to 4921ft for centrals - Image 2

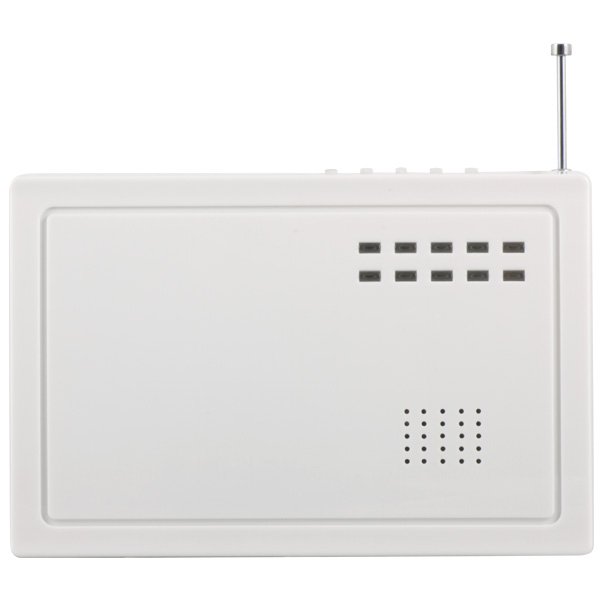

  • Repeater/amplifier signal up to 4921ft for centrals - Image 3
  • - Signal Repeater.
  • - Amplifies signal up to 4921ft.
  • - Wireless receive distance: 656ft.
  • - This product works perfectly with any of our central alarm systems.
  • - Frequency 433HHz.
  • - ADEMCO Protocol.
  • Wireless convertor adopts MCU. This product which is adopted in the long distance transmit and in the environment of strong obstacle can amplify the signal to panel. It can convert up to 60 detectors.

    To void interference it is combined with one by one detectors through learn enrollment mode. Only attached detectors can be converted. Wireless signal up to 3280ft distance can be converted through max 15 convertors. For example: On requiring multi-level transmit, this convertor which adopts database exchange model between the levels transmits the signal including itself address code and detector message to the next convertor till the final.

    Main features:
    - Input voltage: 180V to 240V AC.
    - Work current: <25mA.
    - Wireless receives distance: 656ft.
    - Wireless transmit distance 3280ft no barriers.
    - Signal repeater.
    - Amplifies signal up to 4921ft.
    - Frequency 433HHz.
    - ADEMCO protocol.

    This product works perfectly with any of our central alarm systems.

    This wireless item is intended to be used for our Wireless Alarm Systems such as LA-S200, LA-S300, LA-S700 and LA-S850. This item does not work as a standalone. Please keep this in mind before purchasing. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    Wireless
    Wireless
    A Wireless security camera can transmit a video and audio signal to a wireless receiver through a radio band. It is sometimes required at least one cable or wire for power, however, some wireless security cameras are battery-powered, making the cameras truly wireless from top to bottom.
    Warranty: One (1) Year
  • Repeater/amplifier signal up to 4921ft for centrals
    General
    Brand LineMak
    Model LA-R301
    Alarms
    Signal transmit distance Reception: 393ft
    Transmission: 3280ft
    Power
    Power supply 180V ~ 240V AC
    System static current <25mA
    System alarm current 130mA
    Appearance
    Color White
    Size 4.34(L) * 1.19(H) * 6.30(W) inches
    Weight 9.53 ounces
  • Instructions
    File Size: 206.14 Kb
    Languages: English
    File Type: PDF
