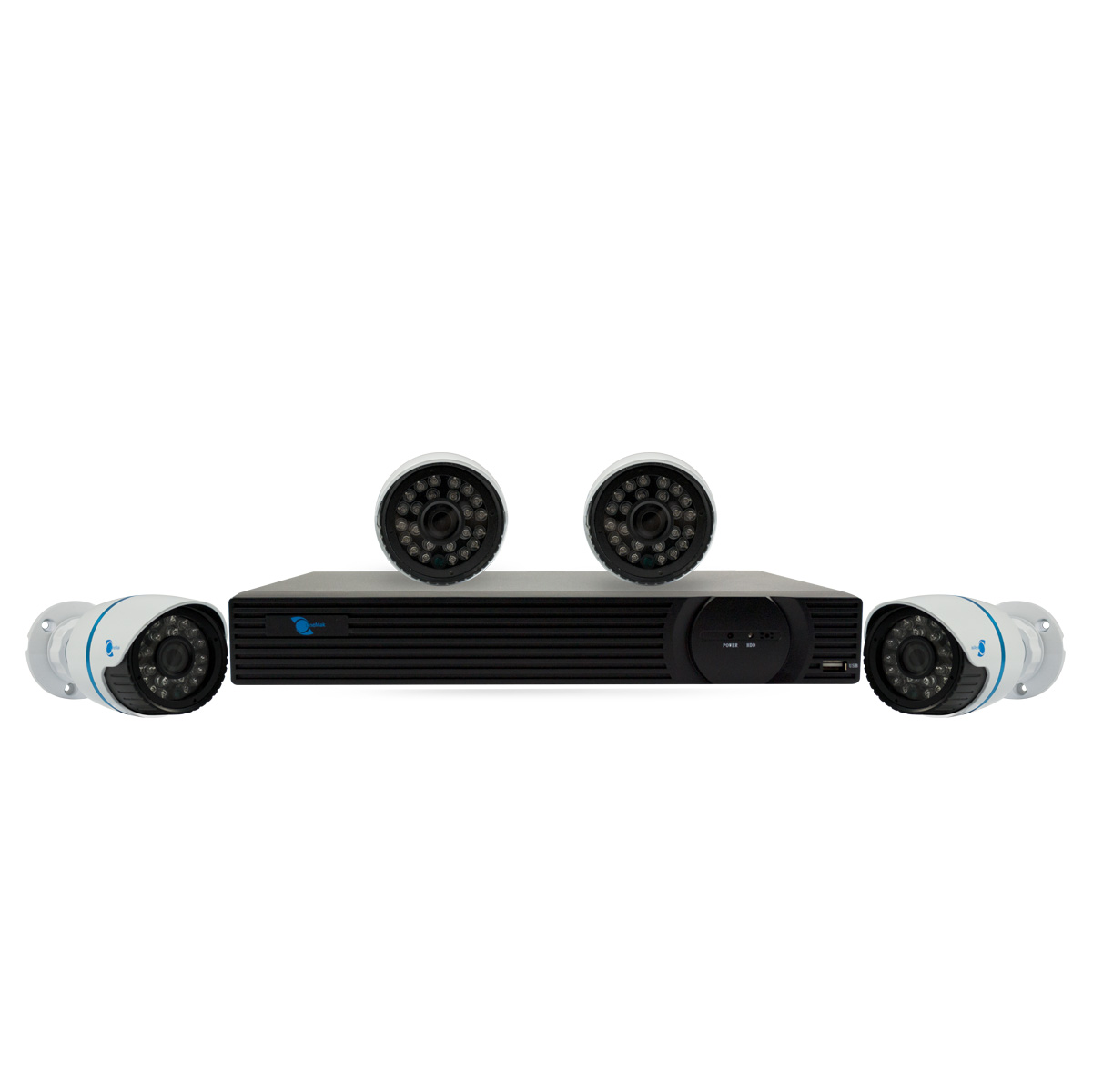

Kit of 4 cameras, CMOS Sensor, 24 LEDs, 65ft IR, 4-Ch NVR, H264, 720P
  • Kit of 4 cameras, CMOS Sensor, 24 LEDs, 65ft IR, 4-Ch NVR, H264, 720P - Image 1
  • Kit of 4 cameras, CMOS Sensor, 24 LEDs, 65ft IR, 4-Ch NVR, H264, 720P - Image 2
  • Kit of 4 cameras, CMOS Sensor, 24 LEDs, 65ft IR, 4-Ch NVR, H264, 720P - Image 3
  • Kit of 4 cameras, CMOS Sensor, 24 LEDs, 65ft IR, 4-Ch NVR, H264, 720P - Image 4
  • Kit of 4 cameras, CMOS Sensor, 24 LEDs, 65ft IR, 4-Ch NVR, H264, 720P - Image 5
  • Kit of 4 cameras, CMOS Sensor, 24 LEDs, 65ft IR, 4-Ch NVR, H264, 720P - Image 6
  • - Kit of 4 IP cameras, 720P resolution.
  • - Support mobile surveillance (iOS and Android).
  • - 24pcs LED. 65ft IR distance.
  • - Recording and playback are available in mobile phone.
  • - Network protocol: HTTP, TCP, UDP, DDNS, SSL, UPNP, ONVIF, RTSP, NTP.
  • - H.264 main profile compression format.
  • Kit of 4 cameras ideal for monitoring homes, offices or local chambers, is easy to install and can see the images captured by the cameras via internet.

    Each camera contain a sensor 1/4" OV CMOS Image Sensor, it has a 3.6mm lens, his crown of 24 LEDs 5mm each allows a night vision of 65 feets, it has a network interface RJ-45 and support doble stream, support network protocol: TCP / UDP / IP / HTTP / RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP.

    The NVR is designed for the connection of 4 incoming channel and 3 output channels, recorded in H.264 format in real time, has a compact size to be placed anywhere, has two USB ports 2.0 and a network port RJ-45, playing from 1 to 4 channels simultaneously supports remote access.

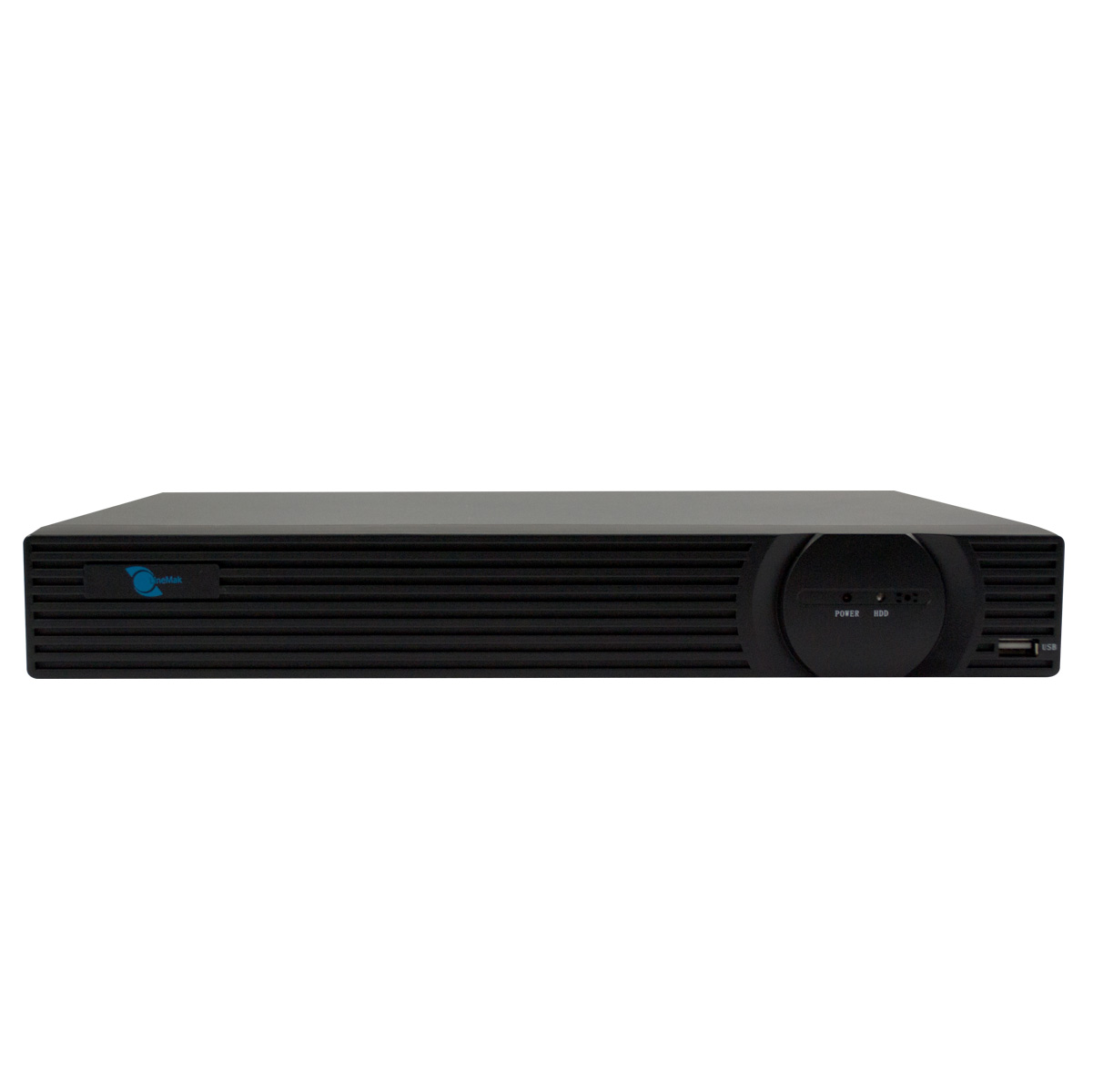

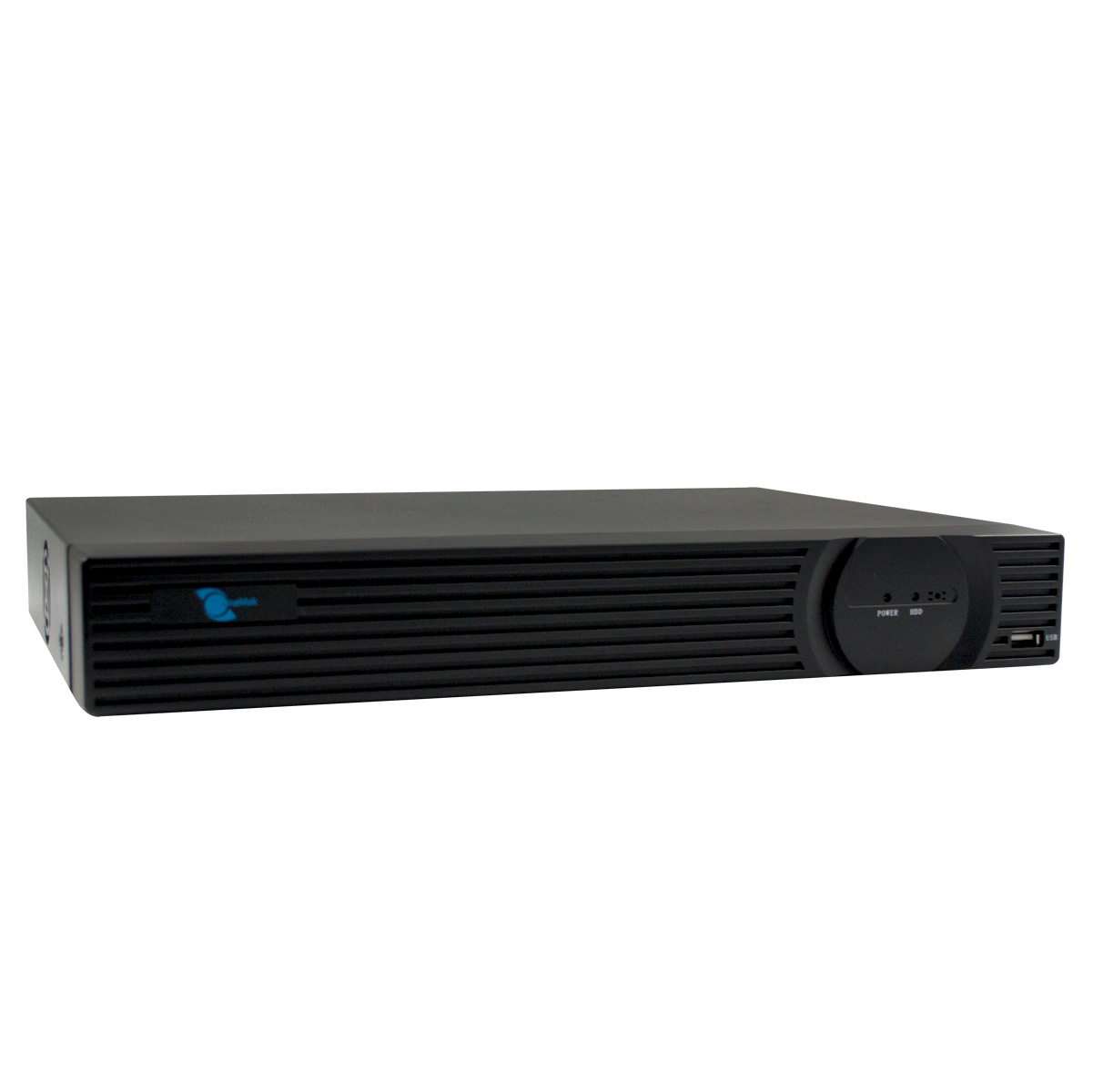

    Network video recorder (NVR) LS-NVR8004A

    With a DVR, the video is encoded and processed at the DVR, while with a NVR, the video is encoded and processed in the camera then transmitted to the NVR for both storage and remote viewing. Monitor your cameras on the Internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time and CMS. Also the mouse and remote control are included.

    It has both VGA and HDMI video outputs, and option to record on the motion detection option.

    Multiple recording mode: Alarm, auto, motion detection, manual recording.
    Multiple control mode: USB mouse, network controller and remote control.
    Compatible with: WINXP, WIN2000, WIN7.

    Main features:
    - H.264 compressed file decoding support.
    - U disk, remote network upgrades and serial port upgrade support.
    - ONVIF, RTSP, NF series IPC agreement, etc., support.
    - IP camera basic parameters configuration for remote support.
    - Simultaneous CVBS and VGA output, automatic identification of OSD display device; there are 800-600, 1024-768, 1280-1024, 1440-900 four; can be achieved through the menu and button-pad menu output switch.
    - 1 road 1920-1920p HD output, can be downward compatible with 1280-720, 1280-720 HD output support.
    - Four-way playback at the same time support.
    - NS series IPC network power support.

    Hard drive not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

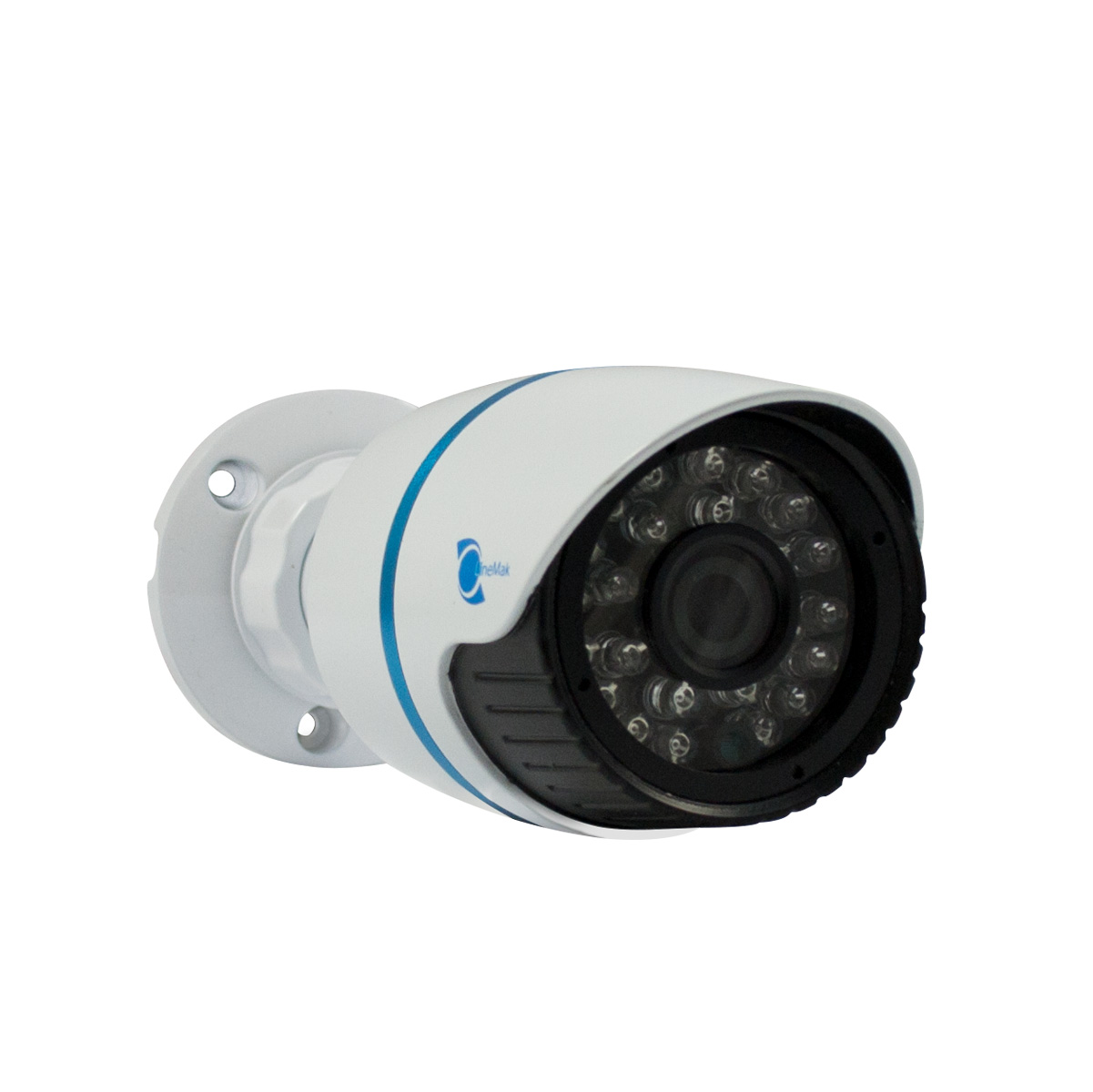

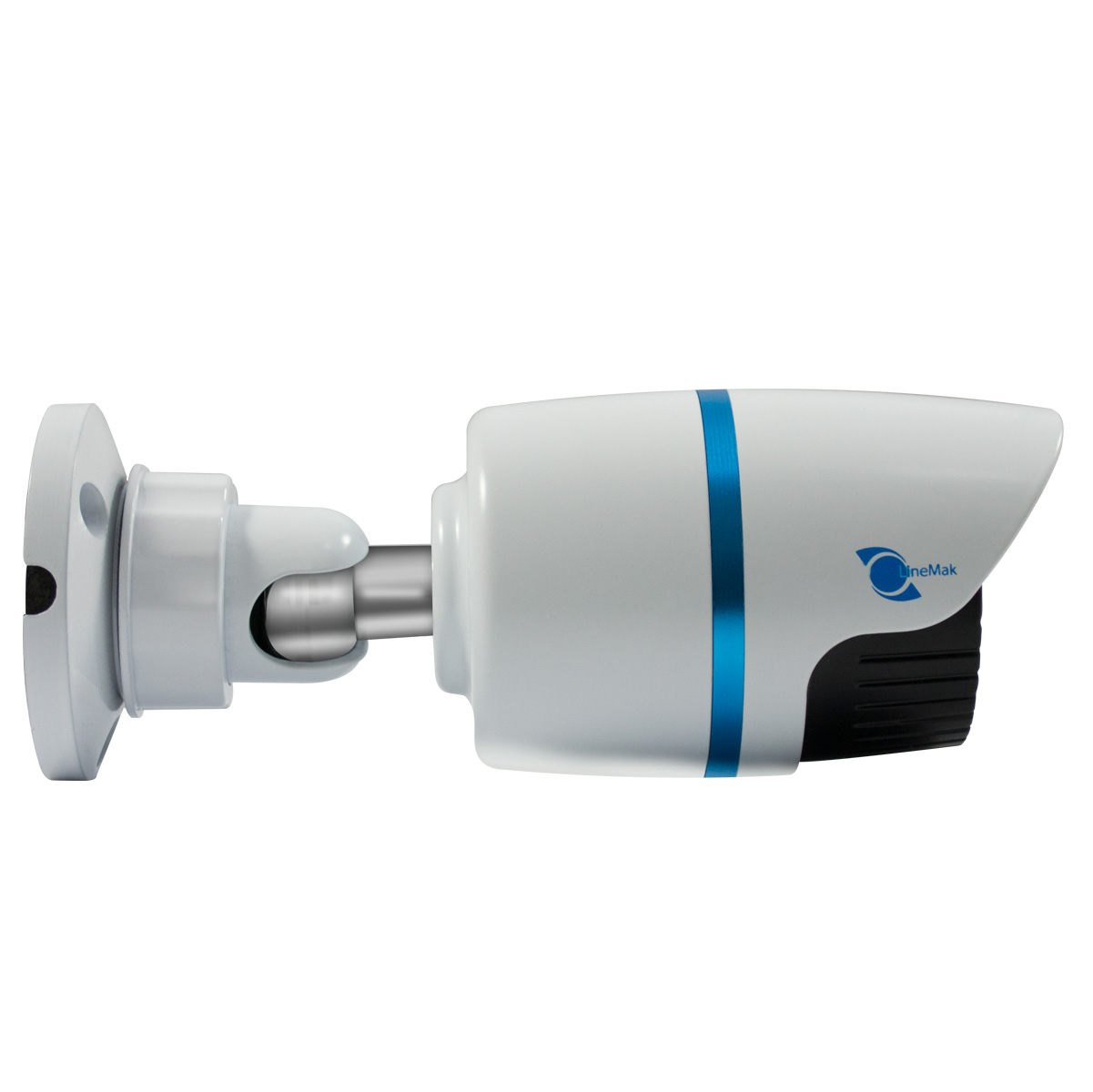

    IP bullet camera LS-IPC3076NSE

    IP Bullet camera for outdoors with a lens of 3.6mm, a 65ft range of infrared night vision, and 24pcs LEDs 5mm each. Available in white. The latest technology of sensor and driver adopted. The most attractive characteristics are night-time vision and easy to mount.

    This equipment can be easily installed anywhere going unnoticed thanks to its size. Resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no lighting.

    Using our servers and digital video recorders (DVR) for good results in image quality is recommended. You can see this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

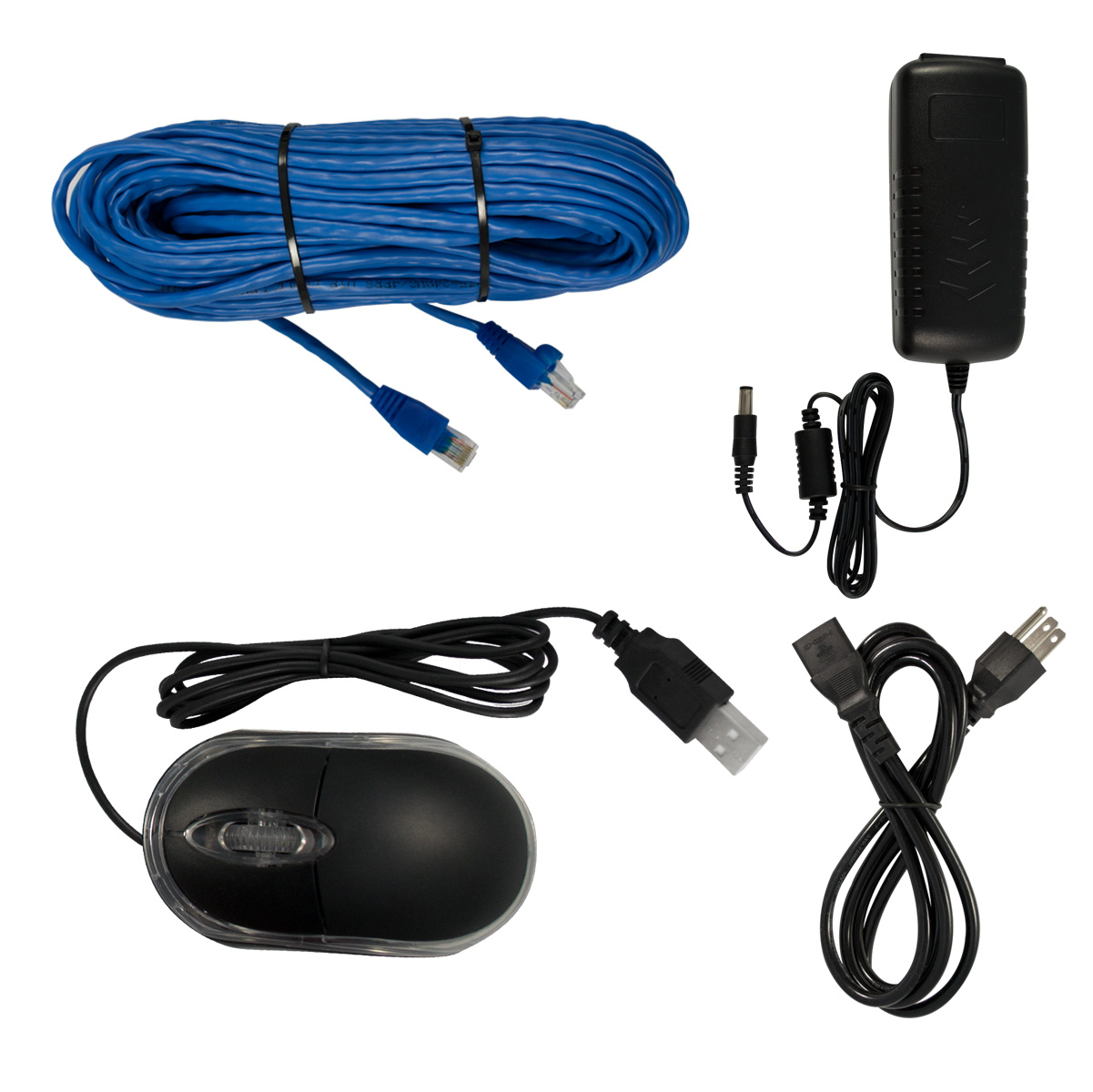

    Package includes:
    - 1 Digital video recorder (LS- NVR8004A).
    - 4 IP bullet cameras (LS- IPC3076NSE).
    - 1 Power supply.
    - 1 Patch cord (data cable) 60ft.
    - 1 Mouse.
    - Manual.
    - Software.
    True Day/Night for round-the-clock surveillance
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    HDMI delivers enhanced image clarity
    Keep everything under watch with multiple recording modes
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Accurate alarm recording allows you to cover the whole event
    This feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.
    Accurate alarm recording allows you to cover the whole event
    Remote setup to access the DVR screen setting
    Remote setup to access the DVR screen setting
    DVR settings adjustment such as remote firmware upgrade, email notification, recording resolution, and motion recording. All DVR settings in the Display, Record, Device, Storage, System, Security Network and Upgrade screens are accessible remotely, for easy adjustment of related DVR functions.
    Be informed
    The DVR will automatically send an email alert with a text notification when an event triggered by motion has occurred. This provides a record of the event and enables you quickly to take action when an incident occurs.
    Be informed
    Motion detection
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Backup for saving critical video evidence
    IP
    IP
    Internet Protocol Address (or IP Address) is a unique address that computing devices use to identify themselves and communicate with other devices in the Internet Protocol network. An IP address is analogous to a street address or telephone number in that it is used to uniquely identify a network device to deliver mail message, or call ("view") a website.
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Monitoring 3G
    Remote monitoring Surveillance
    Remote monitoring Surveillance
    Rely on our current and advanced technology by using any top-of-line wireless sensing device for remotely monitoring your goods or property from everywhere, every time. Be able to manipulate your security system through a simple click and have it all watched like you were nearby.
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Save money with no contracts and no monthly fees
    Warranty: One (1) Year
  • 4Ch NVR, H264, CVBS/VGA/HDMI outputs, 720P, ONVIF/RTSP
    General
    Brand LineMak
    Model LS-NVR8004A
    System
    Main processor Hi3520D
    Operating system Embedded Linux
    System resources Multi-tasking operation, simultaneous multi-channel recording, and video playback, and network operations, mobile phone watch
    Language Chinese, english
    Display
    Display area 1/4
    Video
    Resolution 720P
    Video format PAL/NTSC
    Compression format H.264
    Frame rate PAL: 100fps
    NTSC: 120fps
    Video recording 4-Ch 720P
    Streams Main stream and sub-stream
    Recording & Playback
    Recording mode Alarm, motion detection, manual recording and scheduling video
    Multi-channel playback Support for real-time playback of one to four optional
    Storage & Backup
    Backup mode USB interface, through U disk backup, Data can be backed up by mobile hard disk, USB burner, SATA burner (supported DVD-RW / DVD-R)
    Interface
    Video input/output Input: N/A
    Output: 1-Ch CVBS, 1-Ch VGA and 1-Ch HDMI (1920*1280)
    Audio input/output Input: 4-Ch (through the network transmission)
    Output: 1-Ch
    Alarm input/output Input: 4-Ch
    Output: 1-Ch
    Network interface 1 RJ45, 10M/100M adaptive Ethernet port
    User
    On-line user Support 3-5 users simultaneously access , support network dropped automatically connect. The host can see the connection on the client IP and User
    Network
    Network protocol Supports HTTP, TCP, UDP, DDNS, SSL, UPNP, ONVIF, RTSP, NTP, Email and other network protocols
    Remote
    Download records By date / time, channel , type, query download ; download the file type support AVI, h.264 optional ; supports multiple simultaneous downloads PC
    Remote event trigger recording Motion detection, video loss, video block linkage alarm can trigger pop-up alarm screen, warning buzzer, triggered alarm output, screen prompts, PTZ linkage, Email alarm upload, alarm can trigger linkage any channel recording, various abnormal linkage alarm triggering screen tips, buzzer warning and alarm output.
    Mobile surveillance iOS and Android
    Security
    Password protection Yes
    Motion detection zone Each screen can be set to 190 (16*12) detection area
    Video loss Can trigger a corresponding alarm linkage
    Power
    Power supply DC 12V
    Power switch Yes
    Appearance
    Color Black
    Accessories
    Mouse Yes
    Standard
    LCD adjusment Each channel independent adjustment, adjustable brightness, contrast, color and saturation
    IP Bullet camera, OV CMOS Sensor, 3.6mm lens, 24 LEDs, 65ft IR, IR-CUT
    General
    Brand LineMak
    Model LS-IPC3076NSE
    Sensor
    Sensor 1/4" OV CMOS
    Effective pixels 1280*720 / 640*360 / 320*180
    Video
    Compression format H.264
    Frame rate 30fps
    Streams 0.1Mbps ~ 8 Mbps
    Interface
    Network interface 1 RJ-45 10M/100M Base-T
    Network
    Network protocol TCP / UDP / IP / HTTP / RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP
    Lens
    Lens 3.6mm
    IR Range 65ft night vision
    LEDs 24pcs (5mm each)
    IR-CUT Filter Yes
    Minimum illumination 0.6Lux@F1.2 (color)
    0.08 Lux@F1.2 (B/W)
    Security
    Safety Password protection, user management system
    Motion detection zone Yes
    Event notificacion Email, picture
    Environment
    Operation temperature 0°C ~ 45°C
    32°F ~ 113°F
    Working humidity 10% ~ 90%
    Power
    Power supply DC 12V
    Appearance
    Color White
    Standard
    Sensitivity 1.0V/lux-sec (550nm)
    Regulatory compliance FCC Part 15, Subpart B Class B; EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 60950-1;C-tick AS/NZS CISPR 22, CISPR 24
