32 Channel HVR, H264/G711A, BNC/VGA/HDMI, 3G/WIFI, D1/CIF, ATX Power
|
|
General
|
|
Brand | LineMak |
Model | LS-DVR6332MD |
System
|
|
Main processor | Huawei Hisilicon chipset 3531 |
Operating system | Embbeded Linux |
System resources | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
System recovery | System auto recovery after power failure |
Display
|
|
Display area | 1/4/8/9/16/24/32 screen |
Graphic user interface (GUI) | 16 bit real color GUI interface support mouse operation |
Language | 28 different languages |
Video
|
|
Resolution | D1 / HD1 / CIF |
Video format | PAL / NTSC |
Compression format | H.264 (Main Profile) |
Display quality | Monitor:D1VGA and HDMI: (1920*1080, 1280*720, 1440*900, 1280*1024, 1024*768, 800*600) |
Encode capacity | 8CH real time D1 24CH real time CIF |
Decode capacity | 8CH real time D1 / CIF |
Multi-mode input | Pure analog video: 8-D1 24-CIF Pure network HD video: 24-D1 / 20-960H / 4-1080P / 1-1080P 8-720P / 2-1080P 4-720P 4-960H |
Frame rate | PAL:50fps NTSC:60fps |
Audio
|
|
Audio compression | G.711A |
Recording & Playback
|
|
Recording mode | Alarm, motion detection, manual and timing |
Local playback | Max. 32-Ch playback (8*D1@25fps / 24*CIF) |
Search mode | Time, date, event, channel search |
Storage & Backup
|
|
Space ocupation | Video: CIF 4~5G/day*channel; D1 8~20G/day*channelAudio: 691.2M/day*channel |
Recording storage | Local Hard Disk, Network |
Backup mode | Network backup, USB portable HDD, USB DVD-RW, SATA DVD-RW |

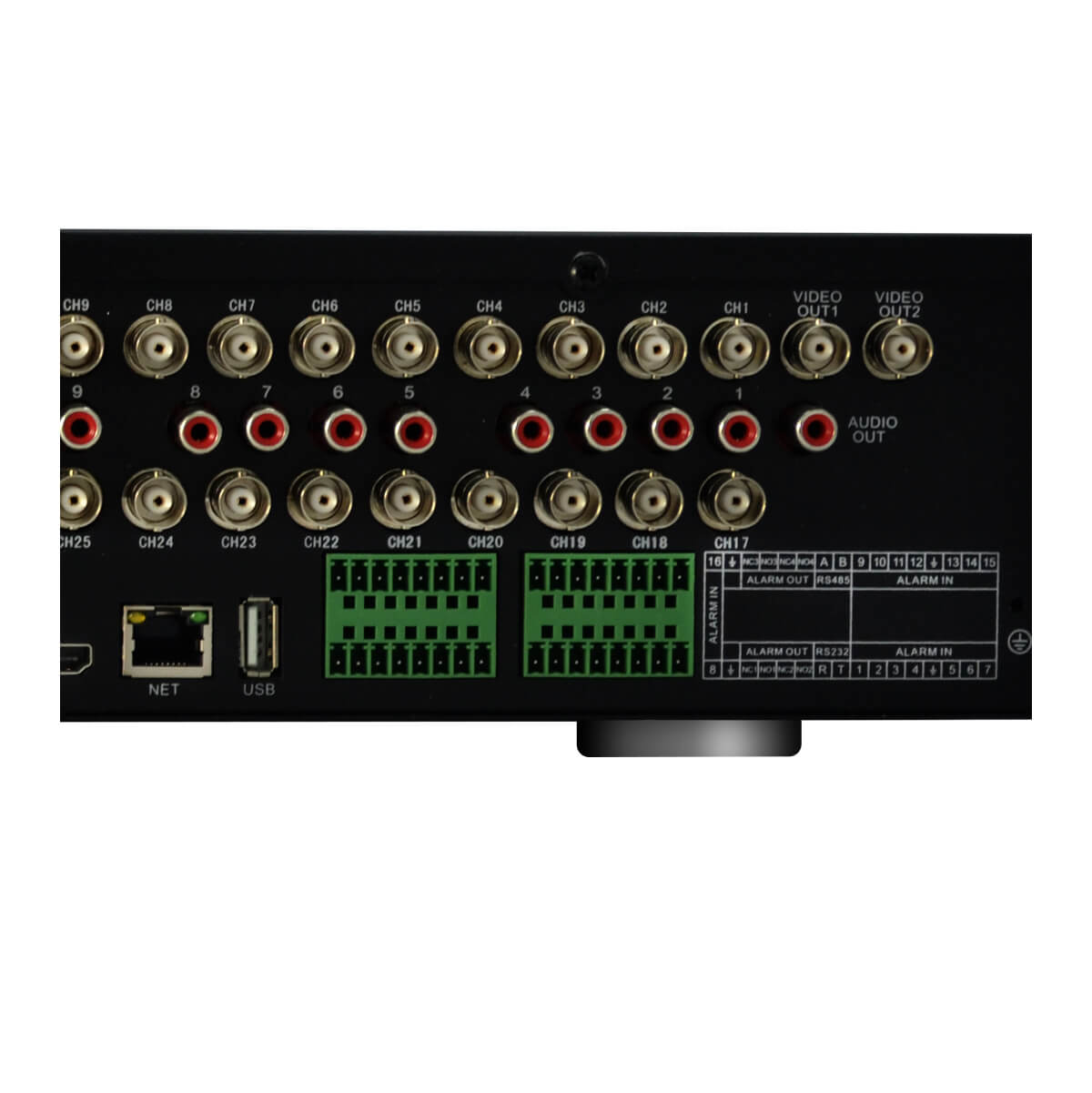

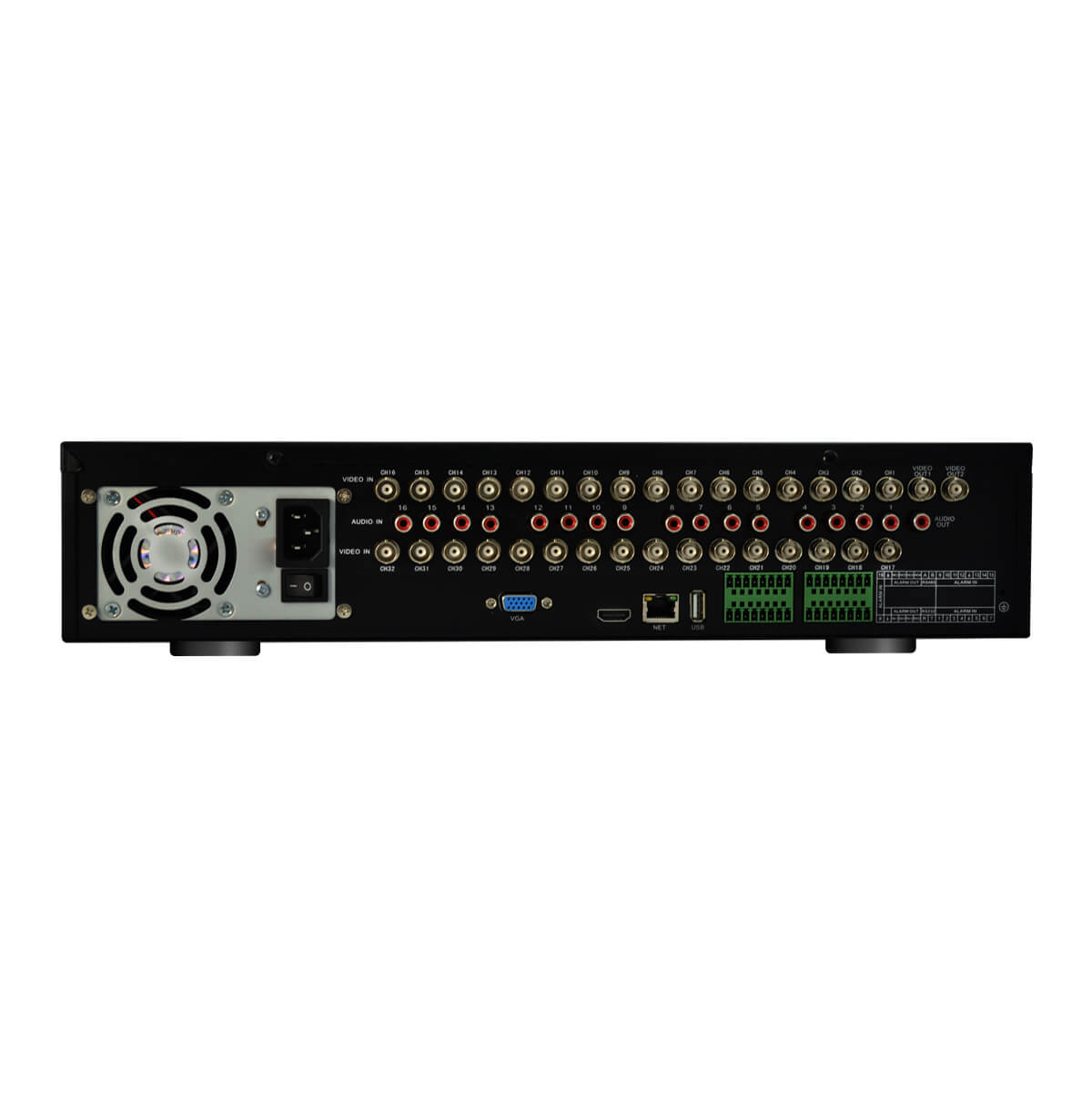

Interface
|
|
Video input/output | Input:32-Ch BNC (1.0Vp-p 75ohm)Output: 2-Ch BNC (1.0Vp-p 75ohm), 1-Ch VGA and 1-Ch HDMI |
Audio input/output | Input: 16-Ch RCA (200-2800mV 30K)Output 1-Ch RCA (200-3000mV 5K) |
Alarm input/output | Input:16-ChOutput: 4-Ch |
PTZ Control | RS485 port (Support more than 20 kinds protocols) |
USB Port | 2 USB 2.0 port |
HDD Port | 8 SATA HDDs (1 HDD capacity up to 3TB) |
Wireless port | 3G and WIFI (extension via USB port) |
Network interface | RJ45 10M/100M Base-T (self-adaptive Ethernet port) |
User
|
|
User level | Admin / User |
User right | Users can set different permissions (How to use please refer to the manual book) |
On-line user | Max. 10 |
Network
|
|
Web Browser | IE, Mozilla Firefox, Google Chrome, Safari |
Remote
|
|
Network protocol | DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center |
Remote independent operation | Yes |
Download records | Yes |
Remote event trigger recording | Yes |
Mobile surveillance | Yes, support iPad, iPhone, BlackBerry, Windows Mobile, Symbian and Android (iPad, iPhone, Android have remote playback function) |
CMS | CMS Software for multiple DVR (up to 255 DVR simultaneously) |
Live audio | Yes |
Security
|
|
Password protection | Yes |
Motion detection zone | 16*12 grids per channel, 6 adjustable parameters for accurate detection (for local analog channel only) |
Event notificacion | FTP / E-Mail |
Pre-alarm recording | Yes |
Video loss | Video loss notification |
Environment
|
|
Operation temperature | 0°C ~ 55°C 14°F ~ 131°F |
Cooling fan | Yes |
Power
|
|
Power supply | DC 12V/6A |
Power consumption | <25W (Without HDD) |
Appearance
|
|
Size | 18.11 (L) * 3.54 (H) * 17.32 (W) inches |
Weight | 13.91 pounds |

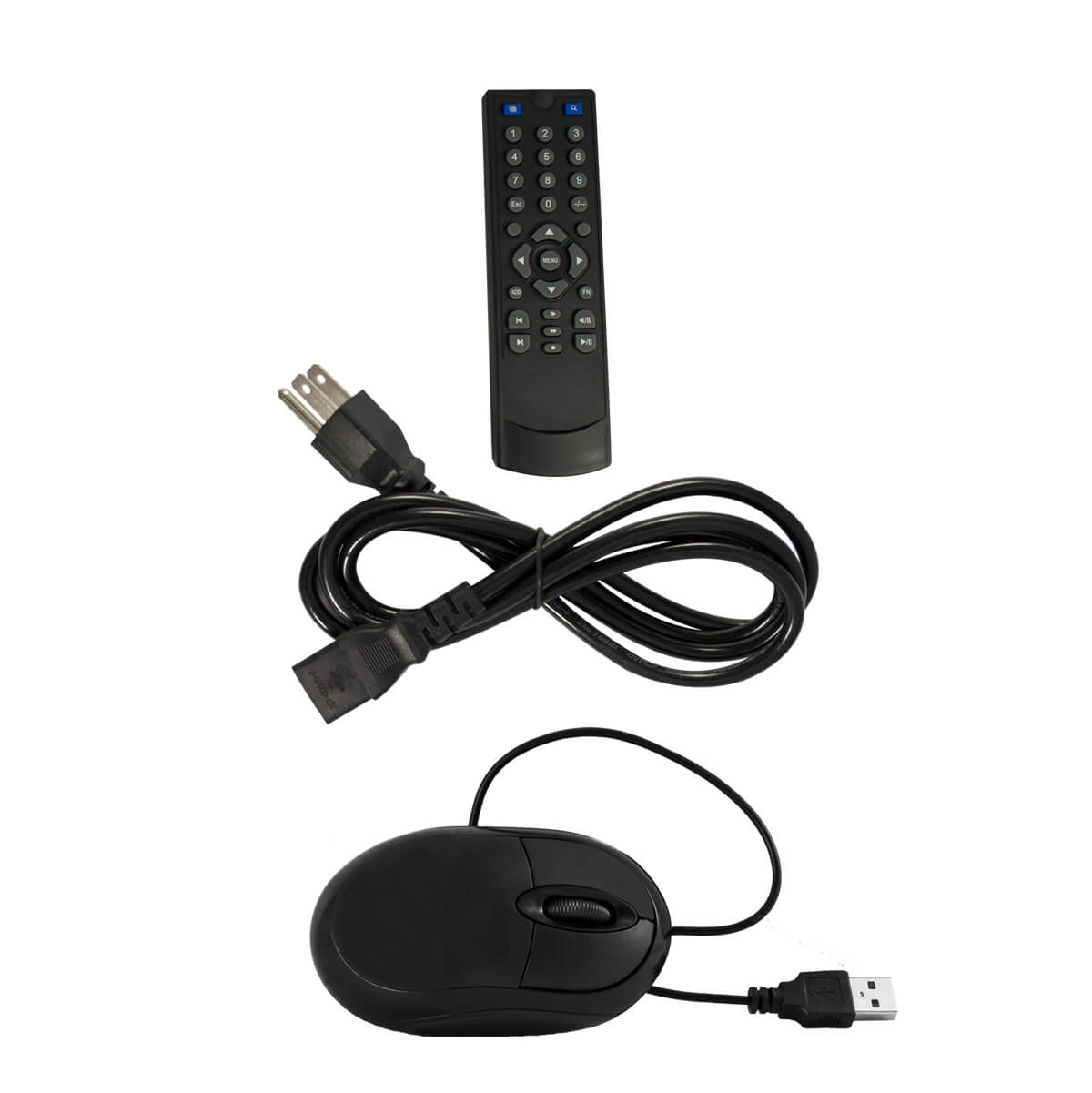

Accessories
|
|

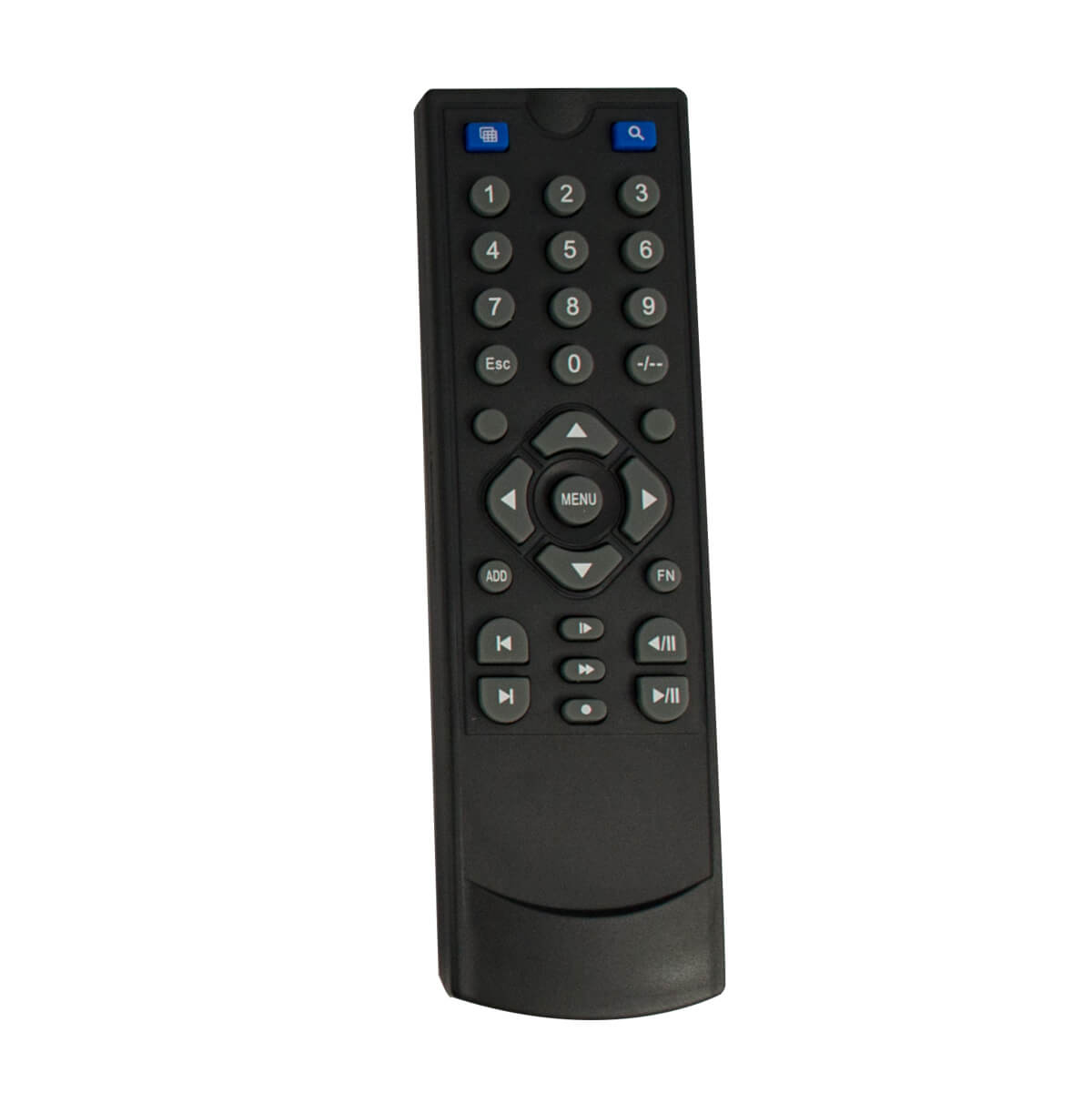

Remote control | Yes |

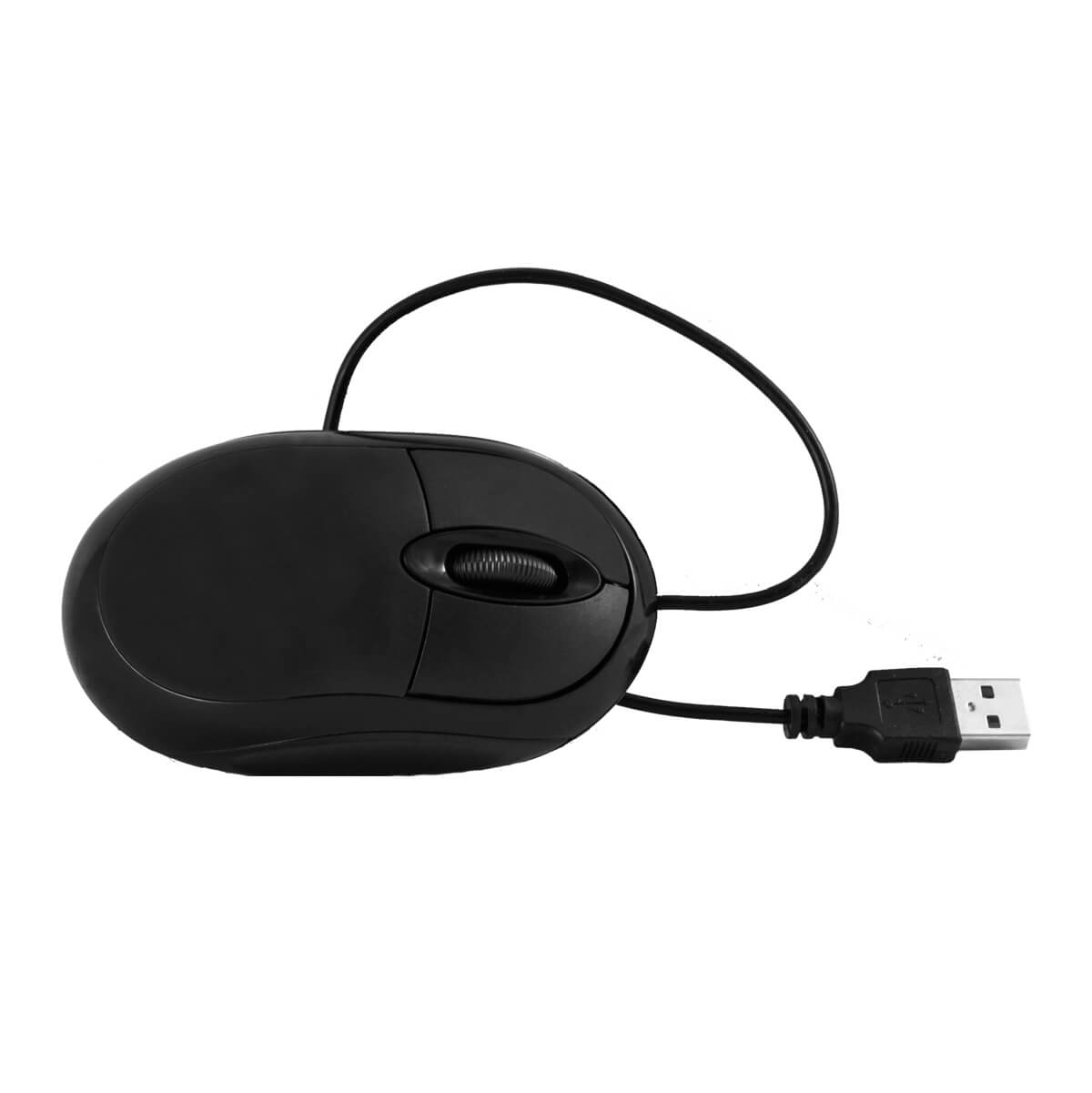

Mouse | Yes |
