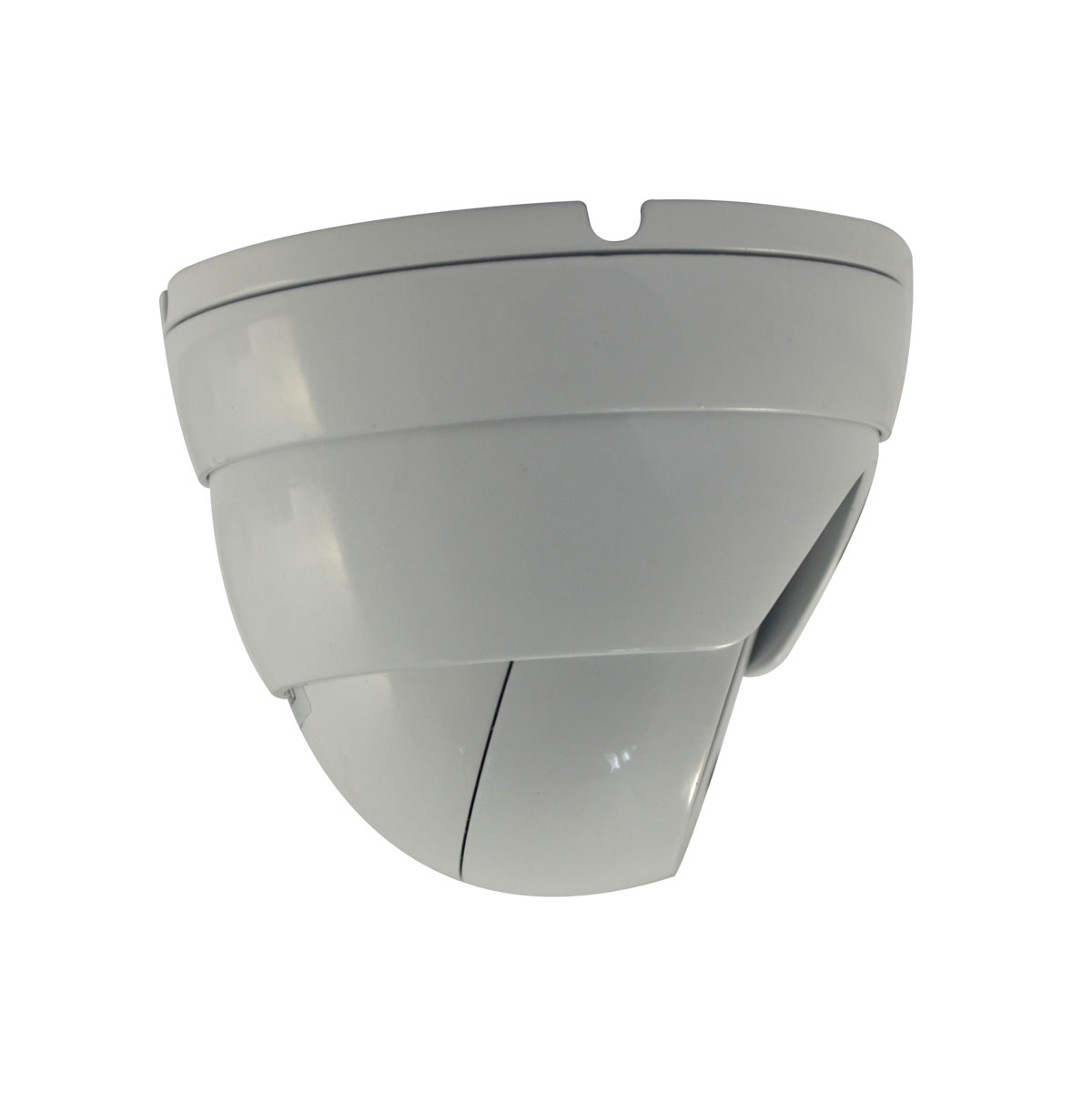

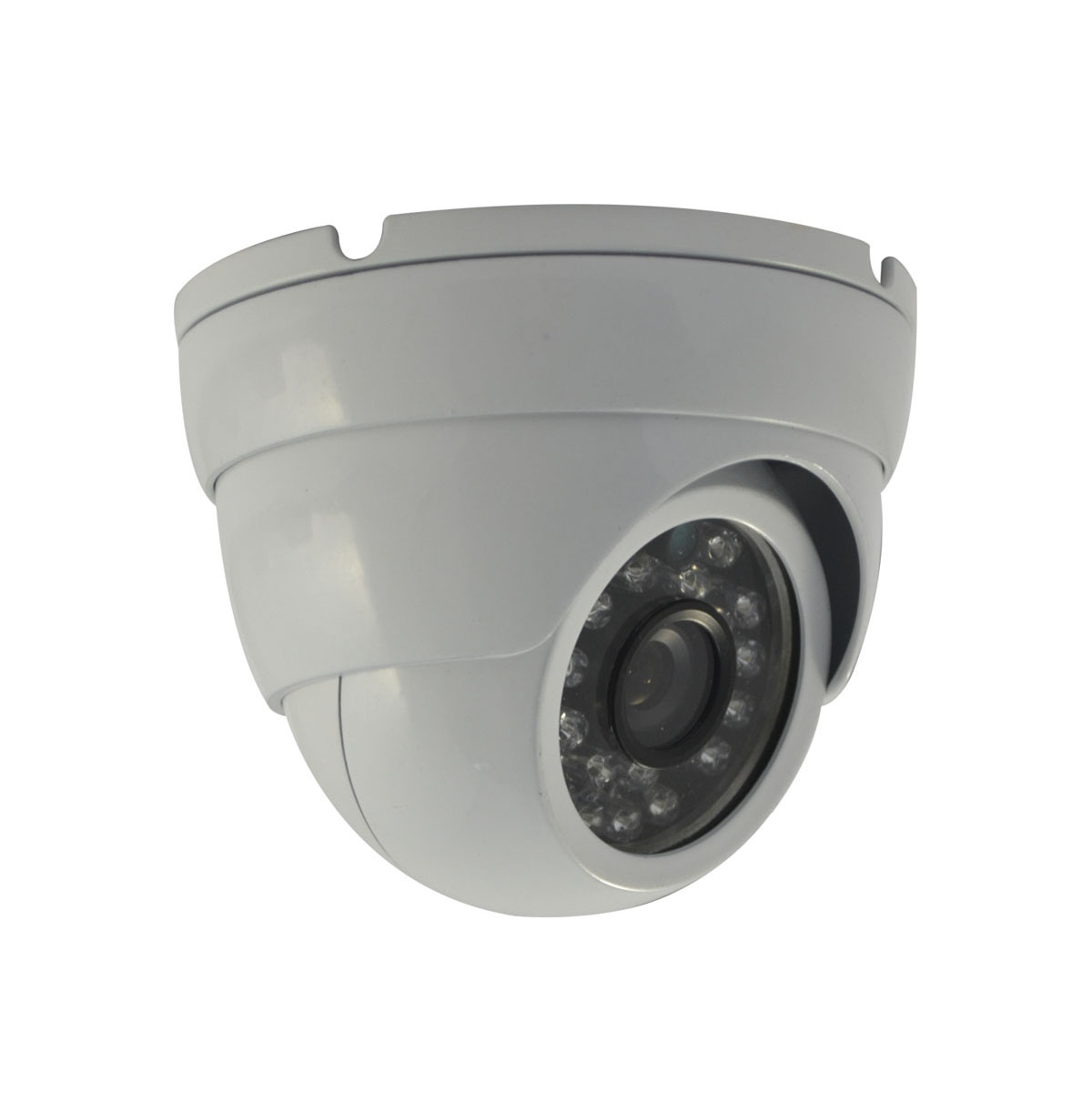

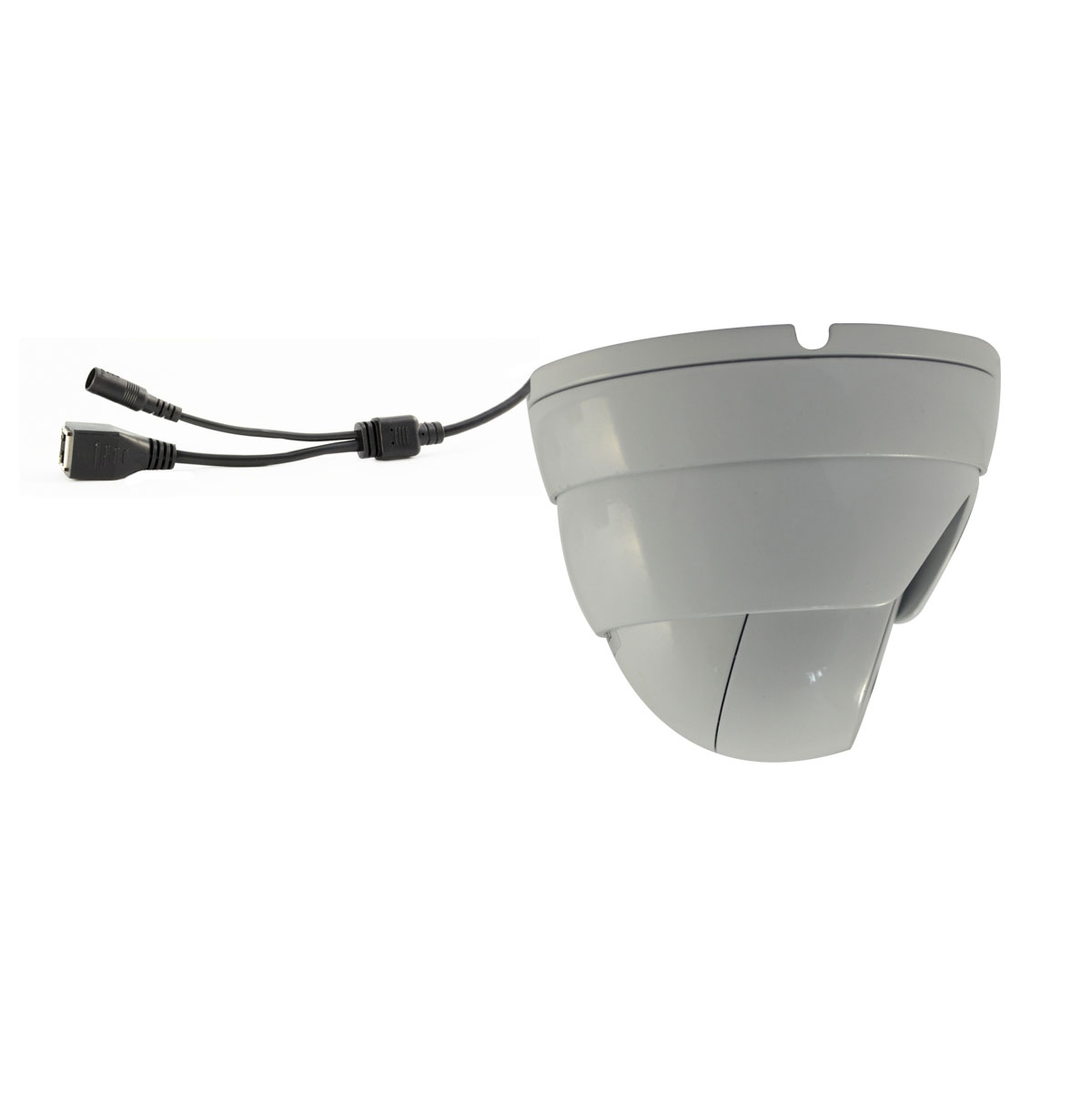

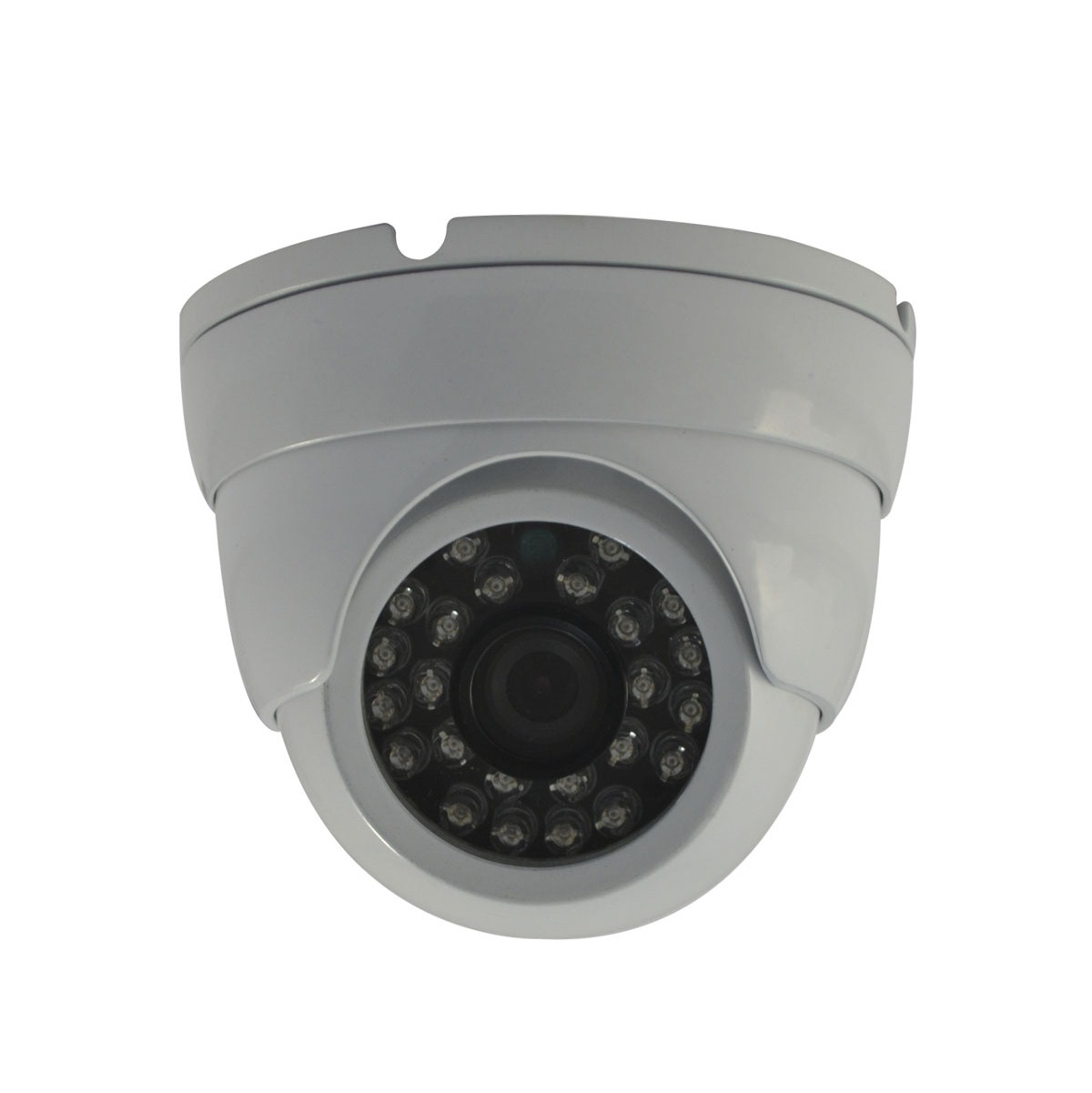

IP Dome camera, 1.0Mp/720p, 3.6mm HD Lens, 30pcs LEDs, 33fts~49fts IR
  • IP Dome camera, 1.0Mp/720p, 3.6mm HD Lens, 30pcs LEDs, 33fts~49fts IR - Image 1
  • IP Dome camera, 1.0Mp/720p, 3.6mm HD Lens, 30pcs LEDs, 33fts~49fts IR - Image 2
  • IP Dome camera, 1.0Mp/720p, 3.6mm HD Lens, 30pcs LEDs, 33fts~49fts IR - Image 3
  • IP Dome camera, 1.0Mp/720p, 3.6mm HD Lens, 30pcs LEDs, 33fts~49fts IR - Image 4
  • - Esee Cloud (P2P) and mobile surveillance.
  • - ONVIF 2.1 support. Free DDNS support.
  • - PoE module support.
  • - Power adapter not included.
  • - Hik vision support, Dahua.
  • - Main stream, sub stream and mobile stream.
  • IP dome camera for indoors which has a 3.6mm HD lens, 33ft ~ 65ft IR range of night vision, and 30 pcs LEDs 5mm each. Available in white.

    Top of the line equipment is regarding sensor and driver technology.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface. Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). Watch this camera online through any of our recording systems.

    Main features:
    - Eseenet Cloud (P2P) support, and mobile surveillance function.
    - ONVIF 2.1 support, standard version.
    - Hik vision support, Dahua ect.
    - Multi stream, main stream for local record, sub stream for network upload, and mobile stream for mobile support.
    - Free DDNS support.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    IP
    IP
    Internet Protocol Address (or IP Address) is a unique address that computing devices use to identify themselves and communicate with other devices in the Internet Protocol network. An IP address is analogous to a street address or telephone number in that it is used to uniquely identify a network device to deliver mail message, or call ("view") a website.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    True Day/Night for round-the-clock surveillance
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    PoE (Power over Ethernet)
    is a technology that allows network equipment such as IP cameras, in addition to the data, get their power through the Ethernet UTP cable.
    PoE (Power over Ethernet)
    Monitoring 3G
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    H.264 video compression reduces storage requirements
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Warranty: One (1) Year
  • IP Dome camera, 1.0Mp/720p, 3.6mm HD Lens, 30pcs LEDs, 33fts~49fts IR
    General
    Brand Linemak
    Model LS-JAH2010
    Sensor
    Sensor 1/3" CMOS (OV9712)
    Effective pixels 1280*720
    Video
    Resolution 720p
    Compression format H.264
    Bit rate 64Kbit/s ~ 4Mbit/s continuously adjustable
    Streams Main stream: 720P 25fps
    Sub stream: 640*360 25fps
    Mobile stream
    Storage & Backup
    Recording storage Record (video), picture file
    Interface
    Network interface 1 RJ-45 10M/100M adaptive Ethernet interface
    Network
    Network protocol RTSP, UPnP, PPPOE, DDNS and ONVIF 2.1
    Web Browser IE, Chrome, Safari and Firefox
    Remote
    Mobile surveillance iOS and Android
    Lens
    Lens 3.6mm HD
    IR Range 33ft ~ 49ft night vision
    LEDs 30pcs (5mm each)
    IR-CUT Filter Yes
    Minimum illumination 0 Lux / F1.2 (with LED ON)
    Viewing angle 92°
    Environment
    Operation temperature -10°C ~ 55°C
    14ºF ~ 131ºF
    Working humidity 10% ~ 90%
    Power
    Power supply DC 12V/600mA
    Power consumption 6W
    PoE Yes
    Appearance
    Color White
    Size 3.55(H) * 3.94(D) inches
    Weight 10.23 ounces
    Special function
    Electronic shutter speed (AES) 1/25s - 1/10000s
    Standard
    S/N Ratio >39dB (AGC off)
  • Instructions
    File Size: 123.78 Kb
    Languages: English
    File Type: PDF
    Update
    File Size: 5139.84 Kb
    Languages: English
    File Type: EXE
