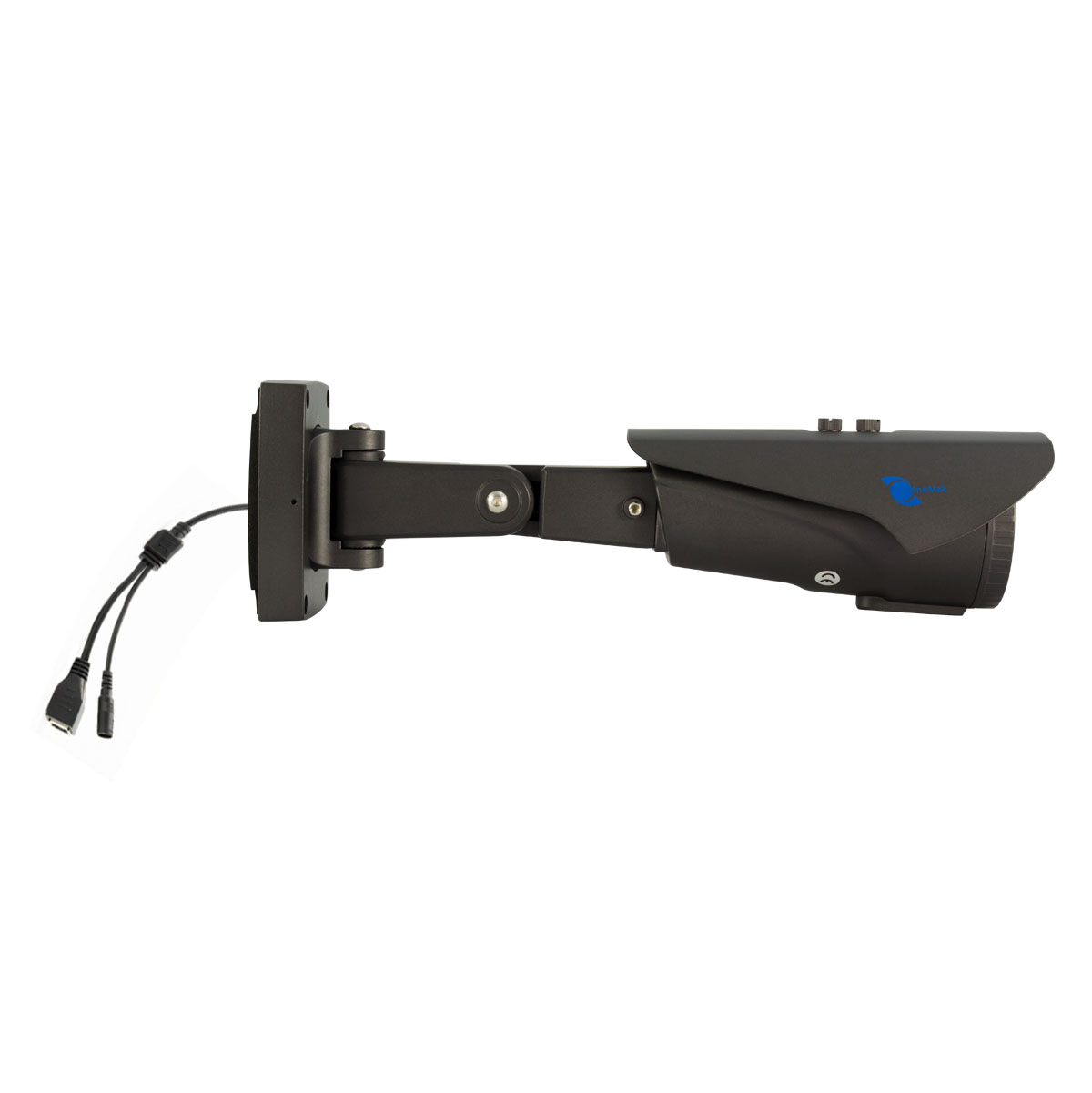

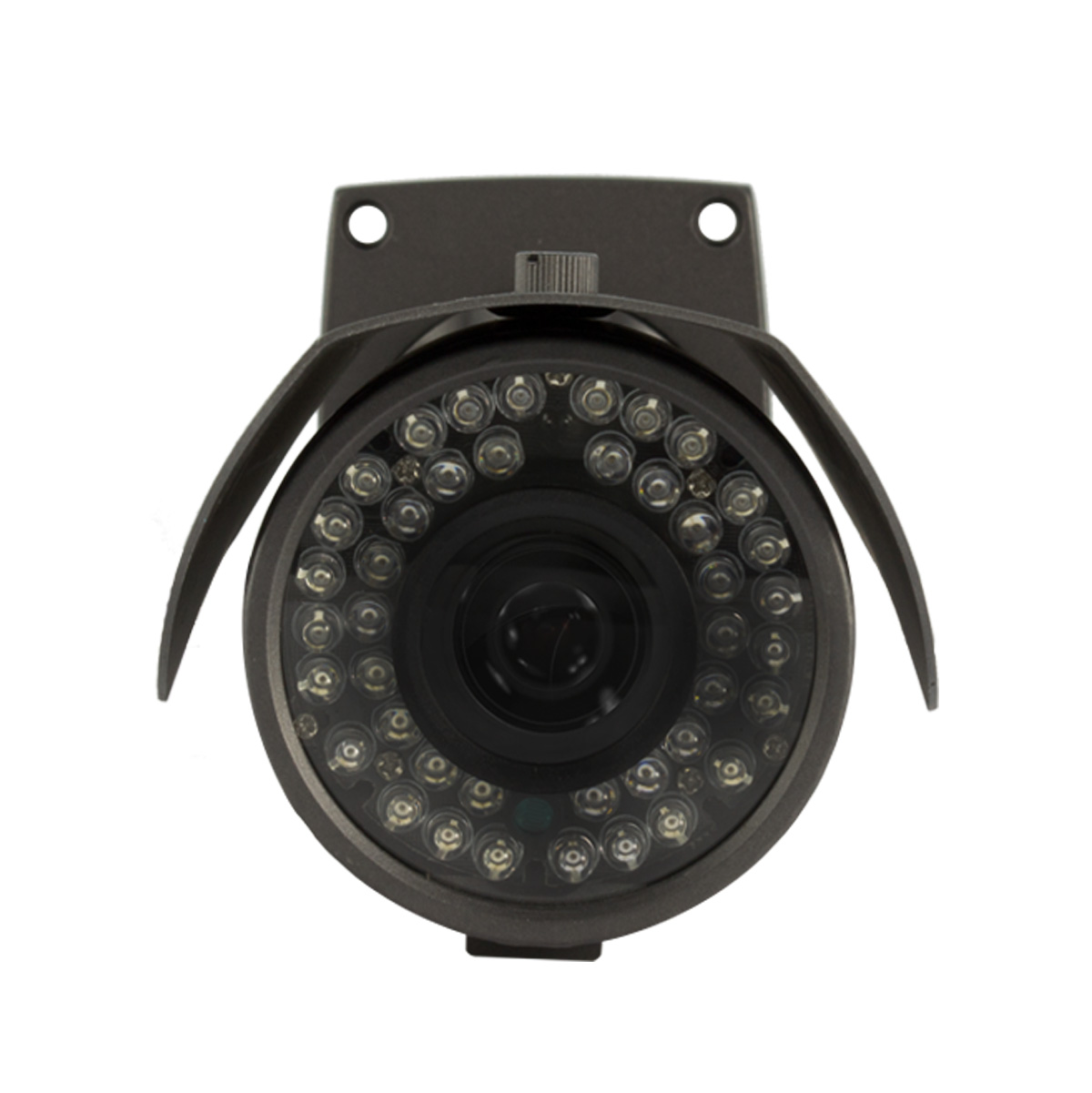

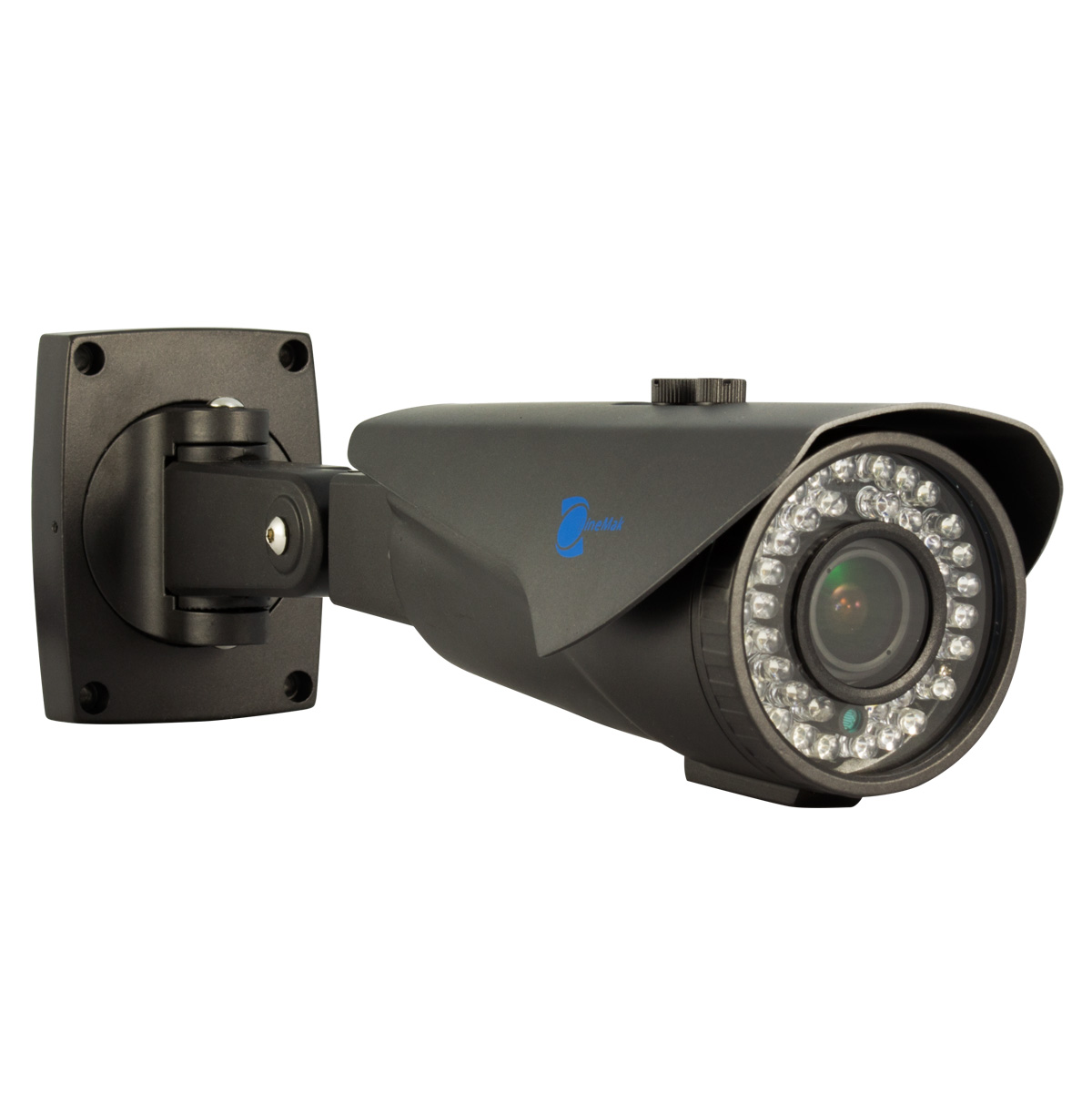

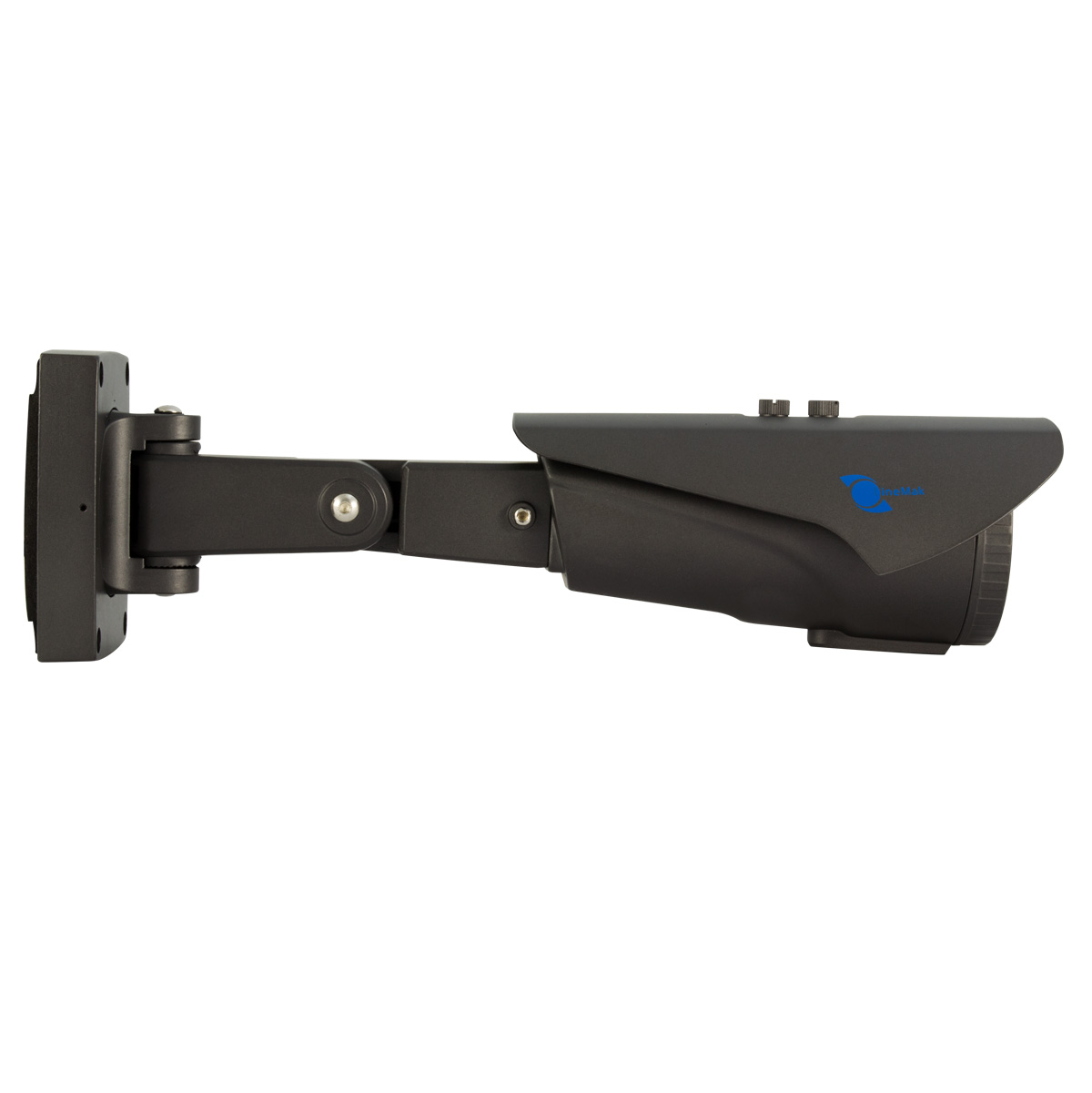

IP Bullet camera 1.3Mp/1080p 2.8-12mm Varifocal lens 42 LEDs IR
|
|
General
|
|
Brand | Linemak |
Model | LS-JAWT4013 |
Sensor
|
|
Sensor | AR0130 CMOS |
Effective pixels | 1280*720 |
Video
|
|
Resolution | 1280p |
Compression format | H.264 |
Bit rate | 64Kbit/s ~ 4Mbit/s continuously adjustable |
Streams | Main stream: 720P 25fps Sub stream: 640-360 25fps Mobile stream |
Storage & Backup
|
|
Recording storage | Record (video), picture file |
Interface
|
|
Network interface | 1 RJ-45 10M/100M adaptive Ethernet interface |
Network
|
|
Network protocol | RTSP, UPnP, PPPOE, DDNS and ONVIF 2.1 |
Web Browser | IE, Chrome, Safari and Firefox |
Remote
|
|
Mobile surveillance | iOS and Android |
Lens
|
|
Lens | 2.8-12mm varifocal |
IR Range | 33ft ~ 49ft night vision |
LEDs | 30pcs (5mm each) |
Zoom | Manual |
Minimum illumination | 0 Lux / F1.2 (with LED on) |
Environment
|
|
Operation temperature | -10°C ~ 55°C 14ºF ~ 131ºF |
Weatherproof standard | IP66 (Waterproof and dustproof) |
Working humidity | 10% ~ 90% |
Power
|
|
Power supply | DC 12V/600mA |
Power consumption | 6W |
PoE | Yes |
Appearance
|
|
Color | Gray |
Size | 12.21(L) * 2.96(H) * 2.76(W) inches |
Weight | 1.72 pounds |
Special function
|
|
Electronic shutter speed (AES) | Auto / 1/25s - 1/10000s |
Standard
|
|
S/N Ratio | >39dB (AGC off) |
