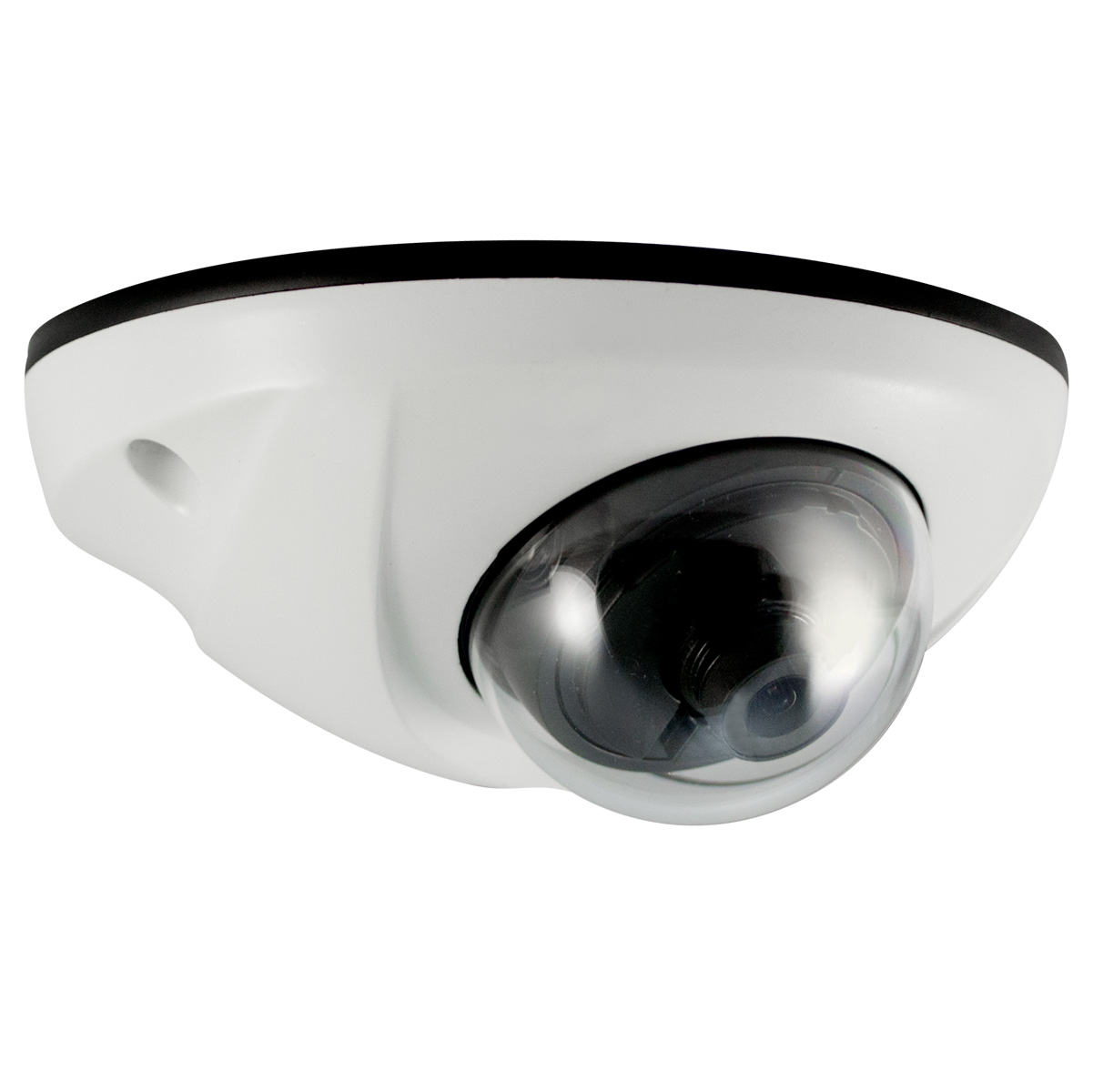

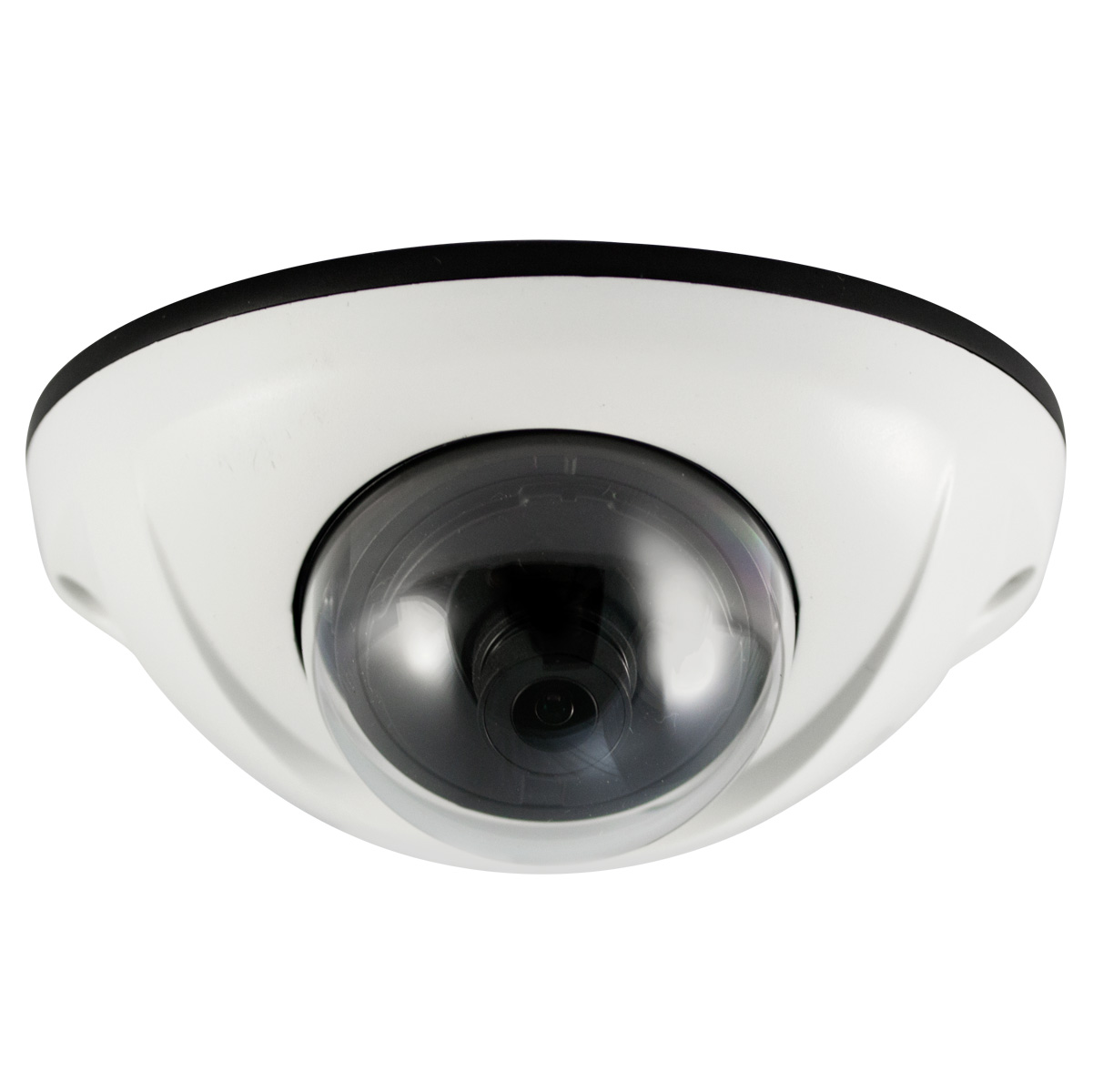

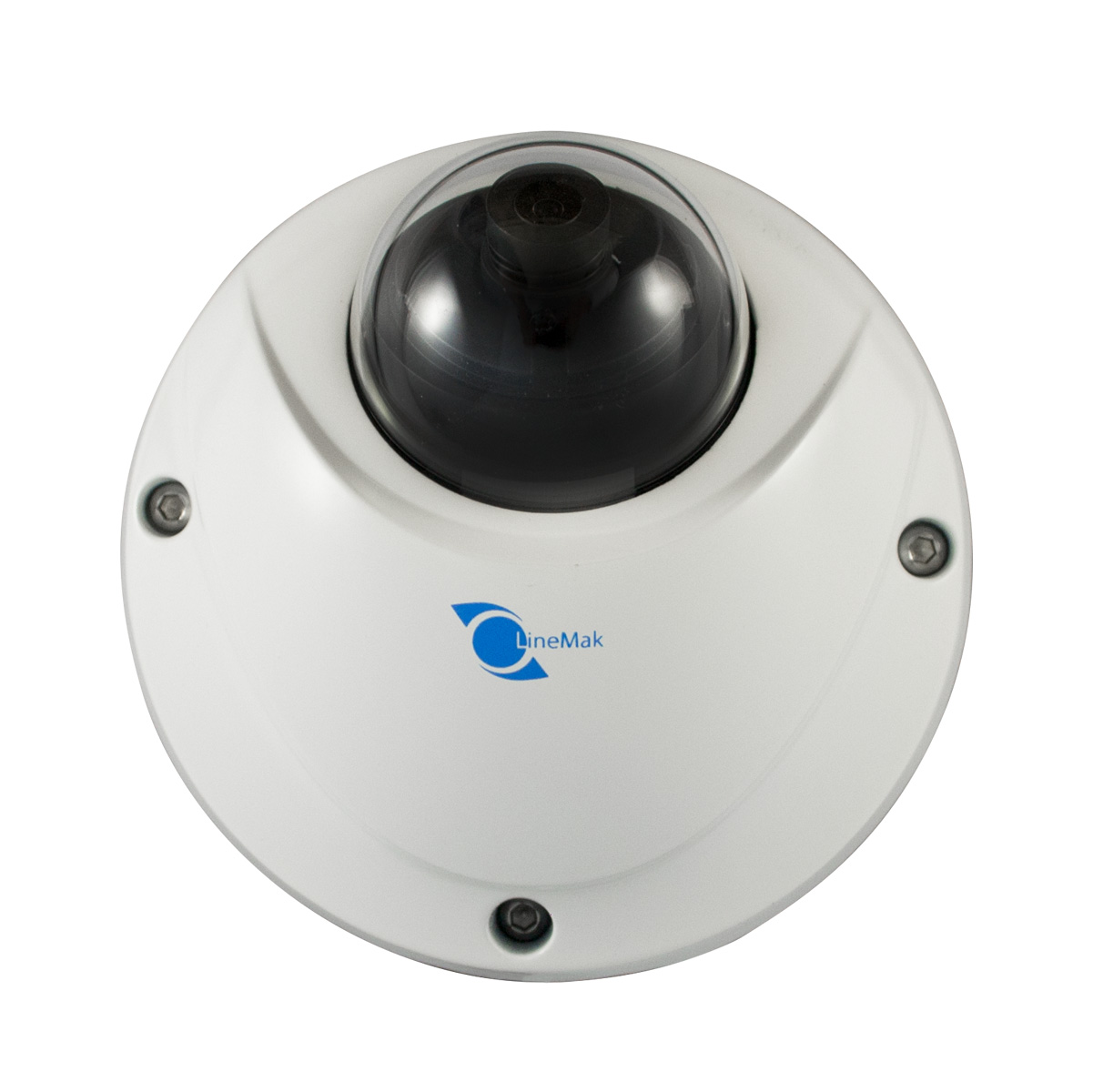

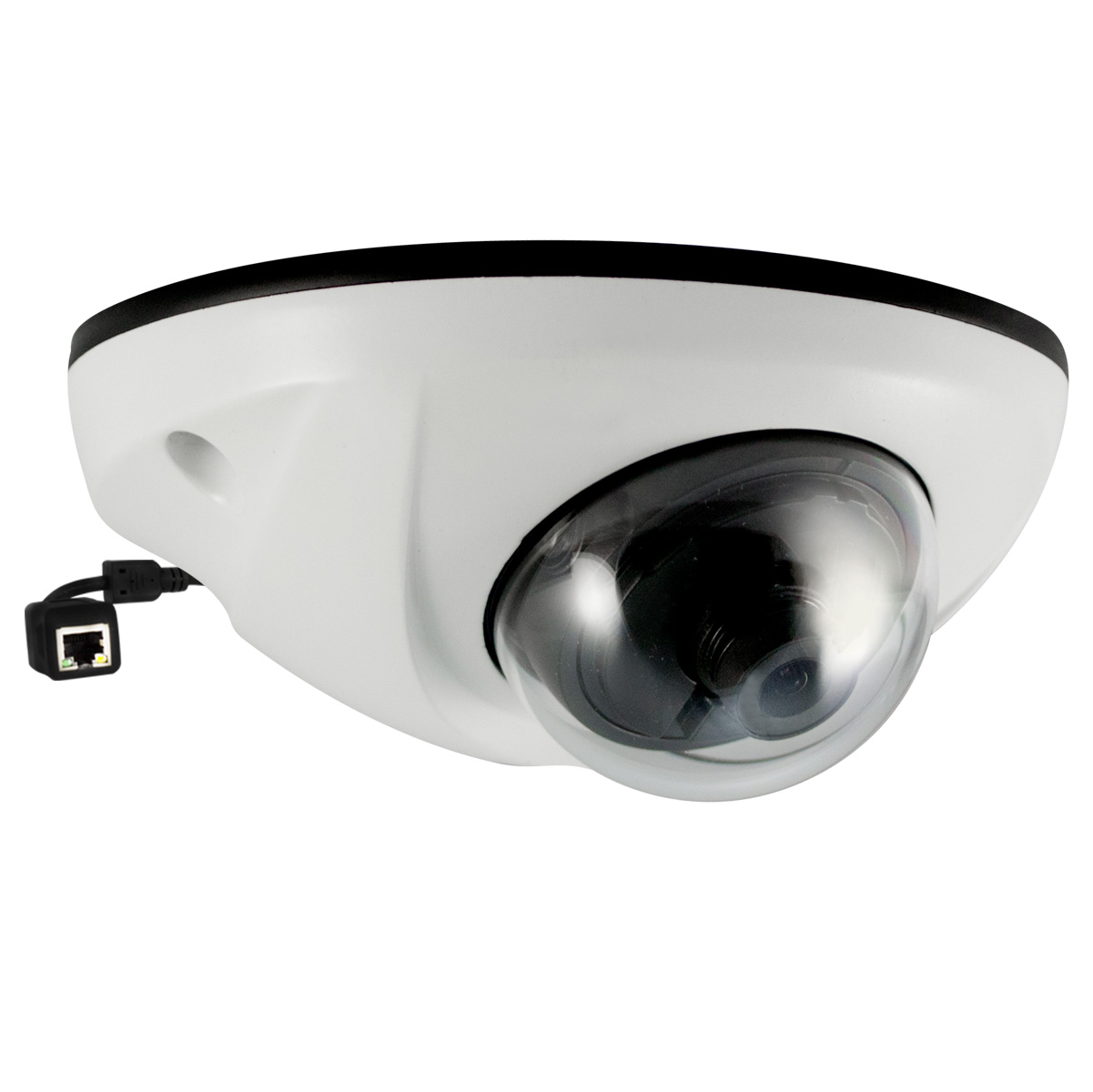

IP Dome Camera 1/3 CMOS Sensor Progressive Scan 1.3Mp/720P 3.6mm H.264
  • IP Dome Camera 1/3 CMOS Sensor Progressive Scan 1.3Mp/720P 3.6mm H.264 - Image 1
  • IP Dome Camera 1/3 CMOS Sensor Progressive Scan 1.3Mp/720P 3.6mm H.264 - Image 2
  • IP Dome Camera 1/3 CMOS Sensor Progressive Scan 1.3Mp/720P 3.6mm H.264 - Image 3
  • IP Dome Camera 1/3 CMOS Sensor Progressive Scan 1.3Mp/720P 3.6mm H.264 - Image 4
  • - Static IP Support.
  • - PPPOE, RTSP, VLC, NTP, UPNP support.
  • - VBR and CBR, VBR setting support.
  • - Power adapter not included.
  • - 3D-DNR, D-WDR, Antifog, Antistemble.
  • - PoE module.
Products recommendaded to work with this item:
ip dome camera 1/3 cmos sensor progressive scan 1.3mp/720p 3.6mm h.264
+
16ch nvr, h264, vga/hdmi output, pentaplex function, onvif/rtsp
Price for all 2: $320.98
  • High-resolution IP dome camera with a 3.6mm lens and a 92° viewing angle. Available in white.

    Top of the line equipment?s regarding sensor and driver technology.

    This equipment designed for indoors can be easily installed anywhere going unnoticed thanks to its size. Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). Watch this camera online through any of our recording systems.

    Recommendation: Power on camera using an individual power source.

    Main features:
    - Static IP support (IP address, subnet mask, gate way and DNS can be set).
    - PPPOE, RTSP, VLC, NTP, UPNP support.
    - Streaming switchable (audio streaming or video streaming).
    - Image adjusting support (brightness, contrast, color and saturation).
    - 5 user IE viewing in the same time; 4 mask zone.
    - 4CH multiscreen play back in the same time.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Gain Control (AGC)
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    A rear-view mirror cameras
    The rear-view mirror camera imitates the function of the actual mirror including the recording function as well, reason why it is highly recommended to use the rear-view camera as a back-up means to check for obstructions behind the car and avoid using it on frozen slippery roads.
    A rear-view mirror cameras
    IP
    IP
    Internet Protocol Address (or IP Address) is a unique address that computing devices use to identify themselves and communicate with other devices in the Internet Protocol network. An IP address is analogous to a street address or telephone number in that it is used to uniquely identify a network device to deliver mail message, or call ("view") a website.
    Warranty: One (1) Year
  • IP Dome Camera 1/3 CMOS Sensor Progressive Scan 1.3Mp/720P 3.6mm H.264
    General
    Brand Linemak
    Model LS-HD6171
    System
    Main processor Hi3518A
    Sensor
    Resolution 1.3Mp/720p
    Sensor 1/3" CMOS progressive scan
    Effective pixels 1280*1024
    Video
    Resolution Main stream: 1280*1024/1280*960/1280*720 , 1~25fps (Adjust)
    Sub stream: 720*576/640*480/640*352/352*288/320*240, 1~25fps (Adjust)
    Compression format H.264 Main Profile / MJPEG Baseline
    Bit rate 1Mbit/s ~ 8Mbit/s, CBR / VBR
    Audio
    Audio compression G.711A / G.711U / G.726
    Bidirectional talk Support
    Recording & Playback
    Recording mode Recording set up to record by Auto or manual (motion and alarm trigger, schedule)
    Storage & Backup
    SD Card slot Yes (max 32Gb)
    Interface
    Network interface RJ-45 port
    User
    On-line user 5 users
    Network
    Network protocol TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP, ONVIF 2.2
    Web Browser IE 6.0 Above, Firefox, Google Chrome
    Remote
    Mobile surveillance Windows Mobile, Symbian, iOS and Android system
    Lens
    Lens 3.6mm
    Auto Iris Fixed iris
    Viewing angle 92°
    Security
    Event notificacion FTP, E-mail
    Privacy mask 4 configurable regions
    Environment
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Working humidity 0% ~ 85%
    Power
    Power supply DC 12V/200mA
    Power consumption 2.4W
    Appearance
    Color White
    Size 2.76(H) 4.73(D) inches
    Weight 9.53 ounces
    Material Aluminum alloy
    Special function
    Auto White Balance (AWB) Yes
    Auto Gain Control (AGC) Yes
    Mirror Yes
    Standard
    LCD adjusment Saturation, Brightness and Contrast can be changed
    Synchronizing system Internal
    S/N Ratio >50dB
    Gamma correction 0.45
    Installation Ceiling mount, 3D adjustable
