Motion Detector IR/MW Wireless/wired outdoor

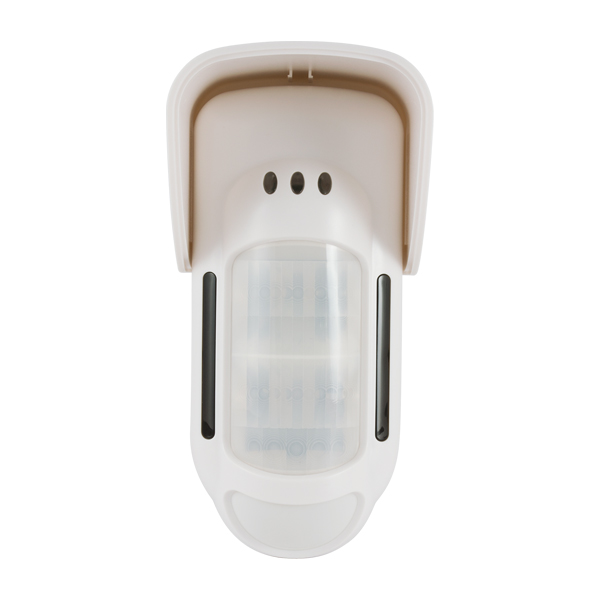

  • Motion Detector IR/MW Wireless/wired outdoor - Image 1

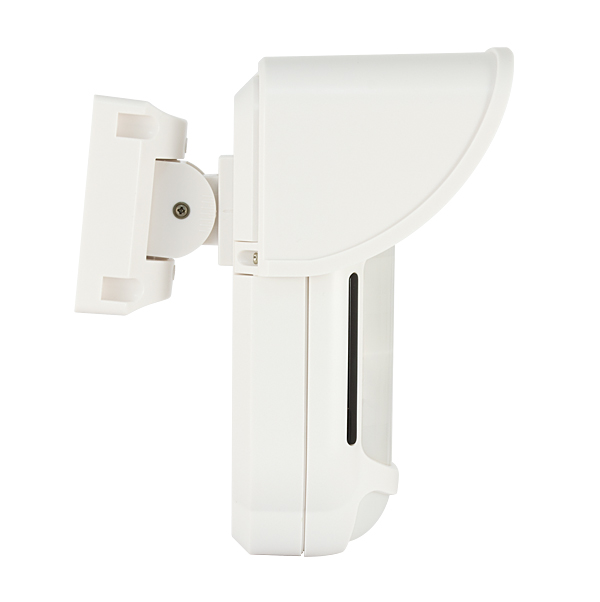

  • Motion Detector IR/MW Wireless/wired outdoor - Image 2
  • Motion Detector IR/MW Wireless/wired outdoor - Image 3
  • - Wireless and wired motion detector (For outdoor).
  • - This product works perfectly with any of our central alarm systems.
  • - Tamper switch activates the alarm when its violated.
  • - Operates on batteries (Batteries not included).
  • - Emitting frequency: 433MHz / 868MHz.
  • - Detection angle: 30°, 90° and 120°.
  • LA-P89R is the best indoor/outdoor motion detector with passive infrared and microwave. It?s waterproof and all water resistant with two layer stable housings.

    LA-P89R combines a variety of detection techniques which enable it to work in the most difficult environment where high security is needed while maintaining immunity to false alarm. The infrared sensor adopts nice lens produce three-dimensional thermal imaging of the protected area. Combining the four-element microwave scanning contributes to an amazing detection capacity. Using this technique allows high sensitivity but lowest false alarm.

    LA-P89R is equipped with unique protection mechanism against any attempt to damage or to disable its operation.

    Main features:
    - Outdoor motion detector IR-MW (Microwave).
    - It operates with batteries.
    - The sensor activates in case of infraction.
    - Dual PIR with digital correlation technology and 2 MW with sway recognition technology.
    - Self-designed MASK chip with DMT technology.
    - With look-down window to avoid blind-corner and weatherproof design.
    - Detection angle: 30? / 90? / 120?.
    - Detection 2 group dual PIR dual MW.
    - MW frequency: 10.525GHz.
    - Function temperature.
    - Auto temperature compensation.
    - Low-Voltage Testing.
    - Status report.
    - Pulse option.
    - Emitting frequency: 433MHz / 868MHz.
    - Anti-white light: 15000 LUX.
    - Anti-EMI: >30V/m (30MHz to 1GHz).

    This product works perfectly with any of our central alarm systems.

    This wireless item is intended to be used for our Wireless Alarm Systems such as LA-S200, LA-S300, LA-S700 and LA-S850. This item does not work as a standalone. Please keep this in mind before purchasing. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Batteries not included.
    Wireless
    Wireless
    A Wireless security camera can transmit a video and audio signal to a wireless receiver through a radio band. It is sometimes required at least one cable or wire for power, however, some wireless security cameras are battery-powered, making the cameras truly wireless from top to bottom.
    Warranty: One (1) Year
  • Motion Detector IR/MW Wireless/wired outdoor
    General
    Brand LineMak
    Model LA-P89R
    Alarms
    Frequency 433Mhz / 868Mhz
    Environment
    Operation temperature -10ºC ~ 50ºC
    14ºF ~ 122ºF
    Storage temperature -20ºC ~ 60ºC
    -4ºF ~ 140ºF
    Weatherproof standard IP65
    Power
    Working voltage DC 9V to 15V
    Battery 6V DC
    System static current 20uA
    System alarm current 20mA
    Appearance
    Color White
    Size 7.87(L) * 9.06(H) * 4.53(W) inches
    Weight 1.32 pounds
  • Manual LA-P89R
    File Size: 223.69 Kb
    Languages: Spanish
    File Type: PDF
