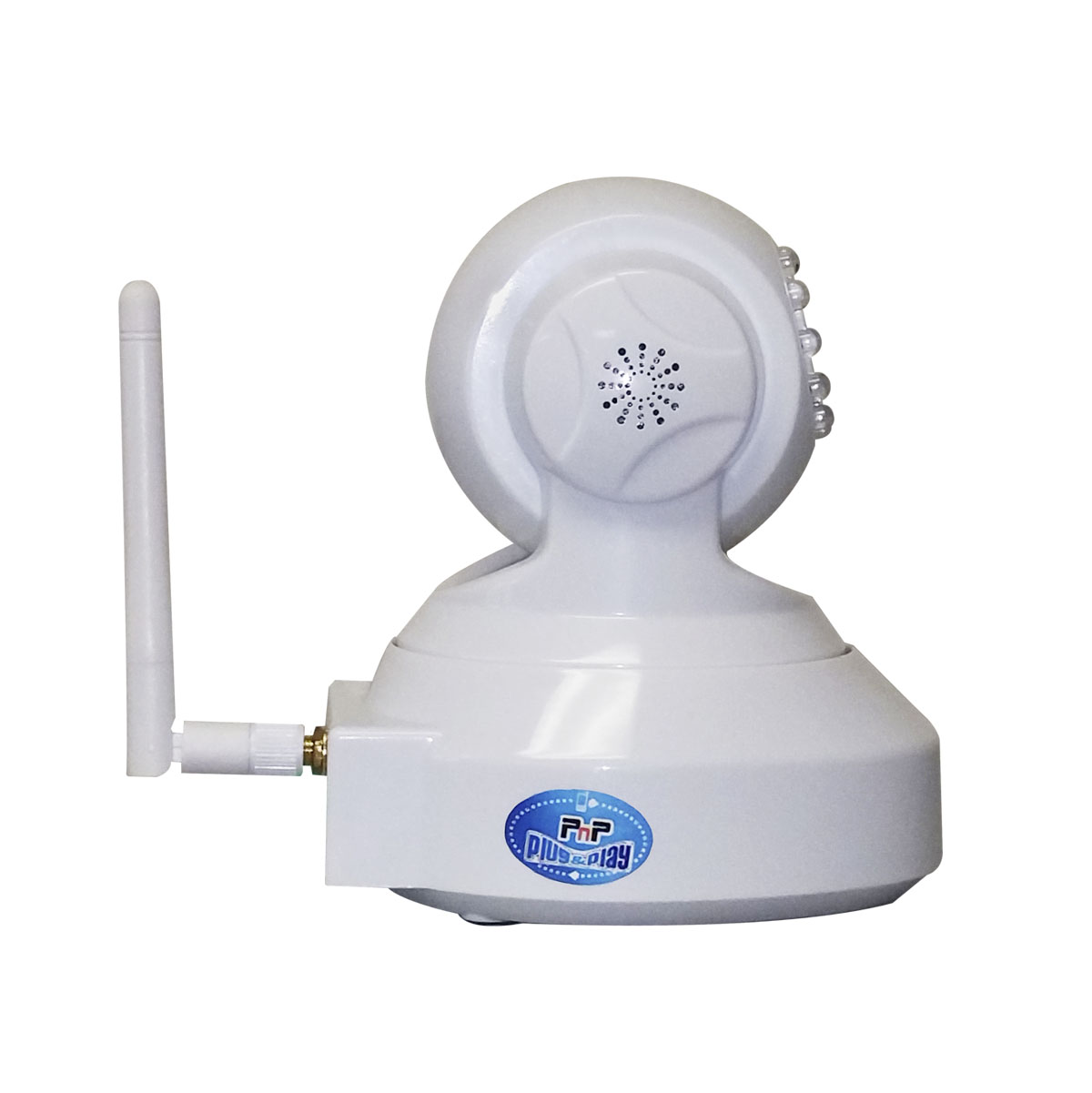

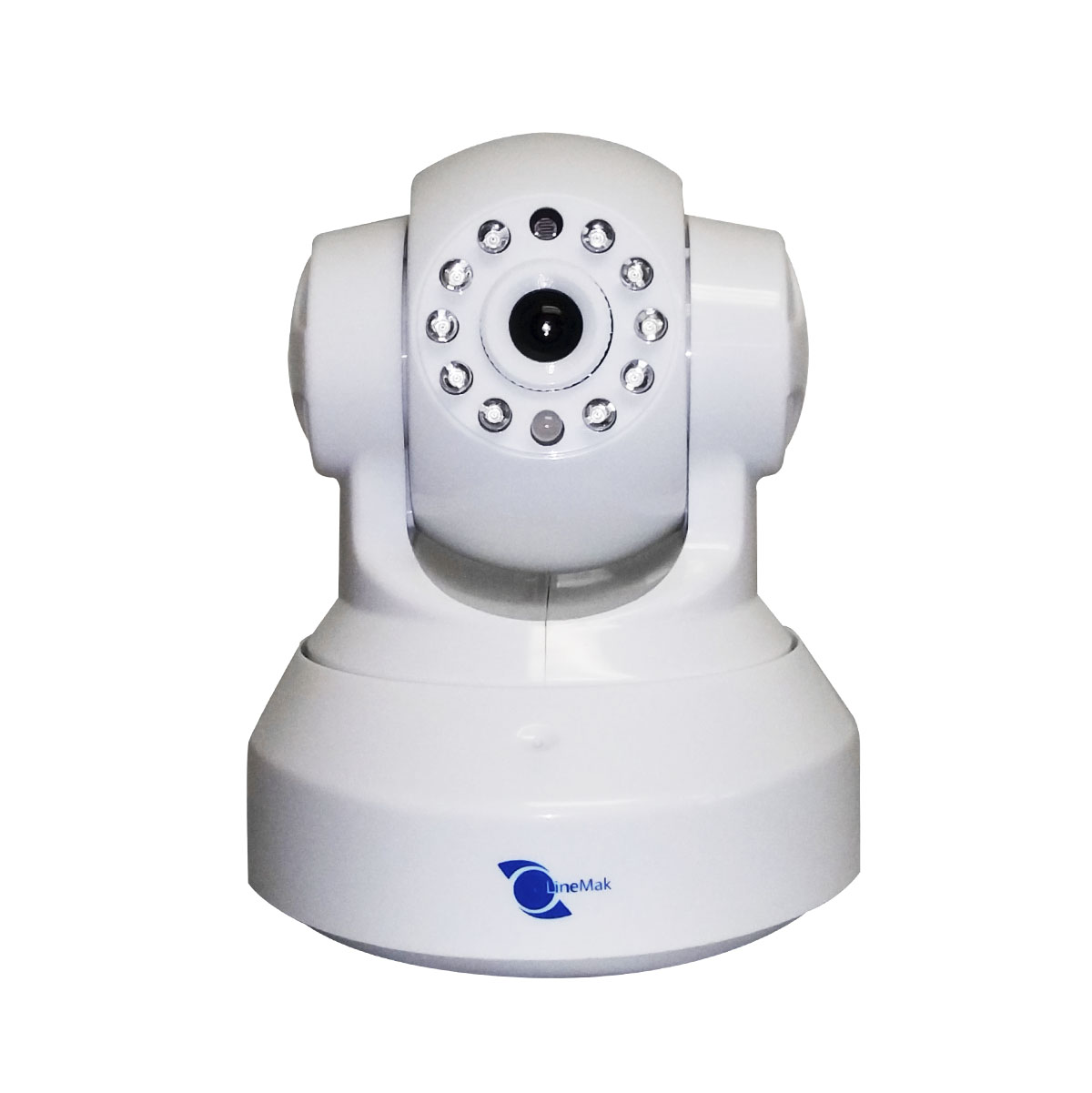

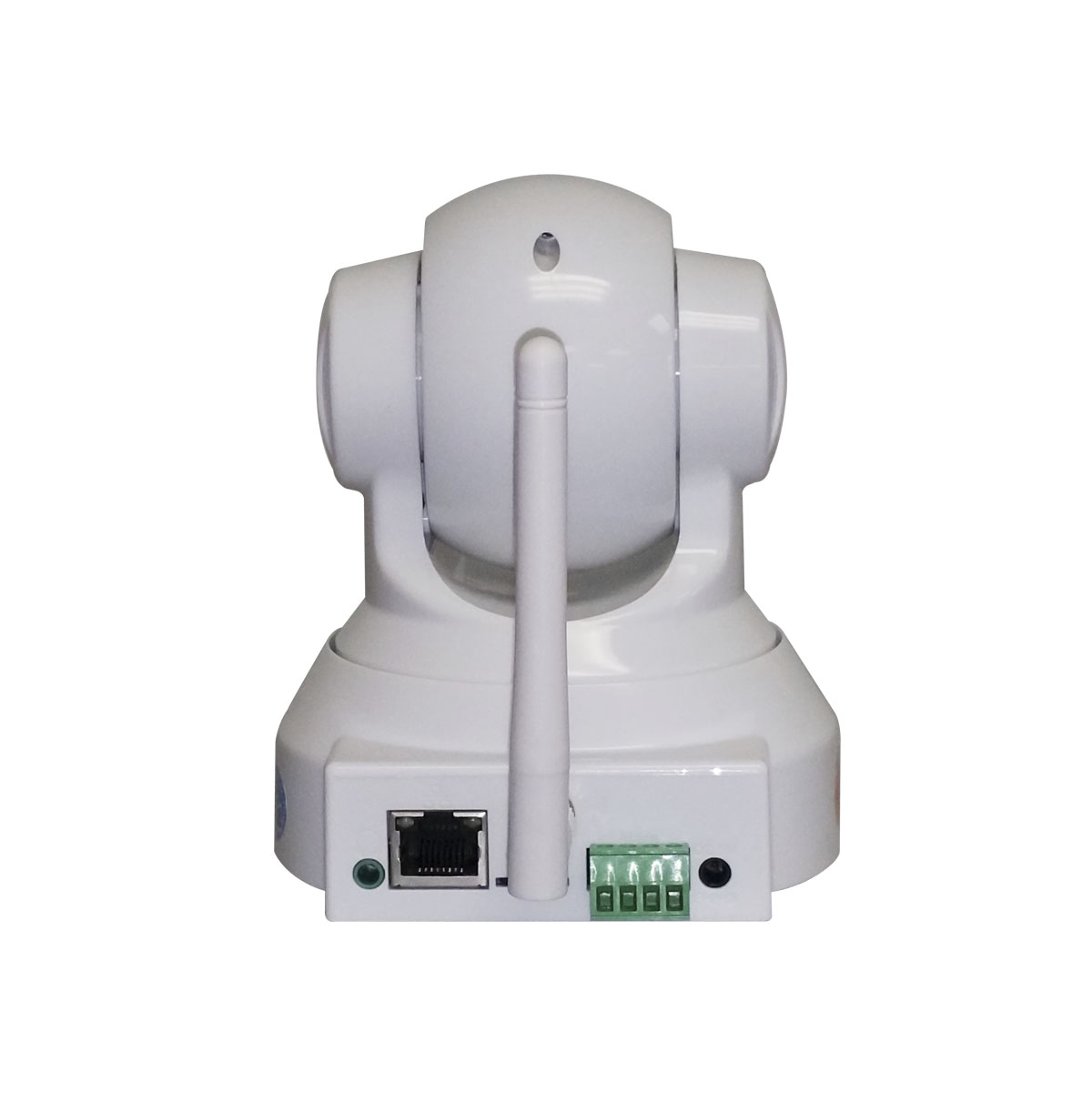

IP Camera CMOS Sensor 3.6mm lens 10 LEDs 49 fts IR
|
|
General
|
|
Brand | Linemak |
Model | LS-ND101C |
System
|
|
Main processor | 2.0GHz or above (suggested 3.0GHz) |
Pc Requirements | Display Card 64M or above |
Memory Space | 256MB or above (suggested 1.0GHz) |
Sensor
|
|
Sensor | 1/4" CMOS |
Effective pixels | 720P(1280*720) / 640*360 / 320*180 |
Video
|
|
Compression format | H.264 / MJPEG |
Frame rate | 30fps |
Audio
|
|
Audio compression | G.711 / G.726 |
Bidirectional talk | Two-way audio |
Interface
|
|
Audio input/output | Input: N/A Output: built-in microphone 3.5mm |
Wireless port | WI-FI |
Network interface | 1 RJ-45 10M/100M Base T port |
User
|
|
Multi-level user | Three Level |
Network
|
|
Network protocol | TCP/IP, DHCP, ARP, ICMP, FTP, SMTP, DDNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP/IP, P2P |
Web Browser | IE 8.0, Firefox, Safari and Google Chrome |
Wireless Speed | IEEE802.11b/g/n 150Mbps |
Remote
|
|
Mobile surveillance | iOS and Android |
Lens
|
|
Lens | 3.6mm / F=2.0 |
IR Range | 49ft night vision |
LEDs | 10 LEDs |
IR-CUT Filter | Yes |
Security
|
|
Motion detection zone | Support four areas |
Security protocol | WPA / WPA2-PSK, WPA / WPA2-AES, WEP |
Environment
|
|
Operation temperature | -10°C ~ 50°C 14ºF ~ 122ºF |
Storage temperature | -40°C ~ 70°C -40ºF ~ 158ºF |
Working humidity | 10% ~ 90% |
Power
|
|
Power supply | DC 5V |
Power consumption | <6W |
Appearance
|
|
Size | 3.94 (L) 5.52 (H) 3.94 (W) inches |
Weight | 10.23 ounces |
Standard
|
|
Rotation range | Pan: 290°Tilt: 120° |
Operating Frequency | 2.4 GHz |
Code Rate | 32kbps ~ 4Mbps |
Software |
![]() |
![]() |
![]() |
![]() |
