Box camera, 1/3 SONY CCD Sensor, 700TVL, OSD menu., Indoor Cameras

$50.99 $41.99

- OSD menu. CS mount.
- AES, AGC, AWB and BLC function.
- DNR, ATR, HLC and CRS functions.
- Power adapter and lens not included.
- 1/3" SONY Effio Exview HAD CCD II Sensor.
- 700TVL.

Products recommendaded to work with this item:

1 channel passive video balun 1082ft, contains 6 pairs 12 pcs

dc12v 1a power adapter specially for security cameras

Price for all 4: $124.96

Box camera, 1/3 SONY CCD Sensor, 700TVL, OSD menu.

1 Channel passive Video balun 1082ft, Contains 6 Pairs (12 Pcs)

DC12V 1A Power adapter specially for security cameras

Linemak Housing with 164ft IR distance

Product Features Specifications Download

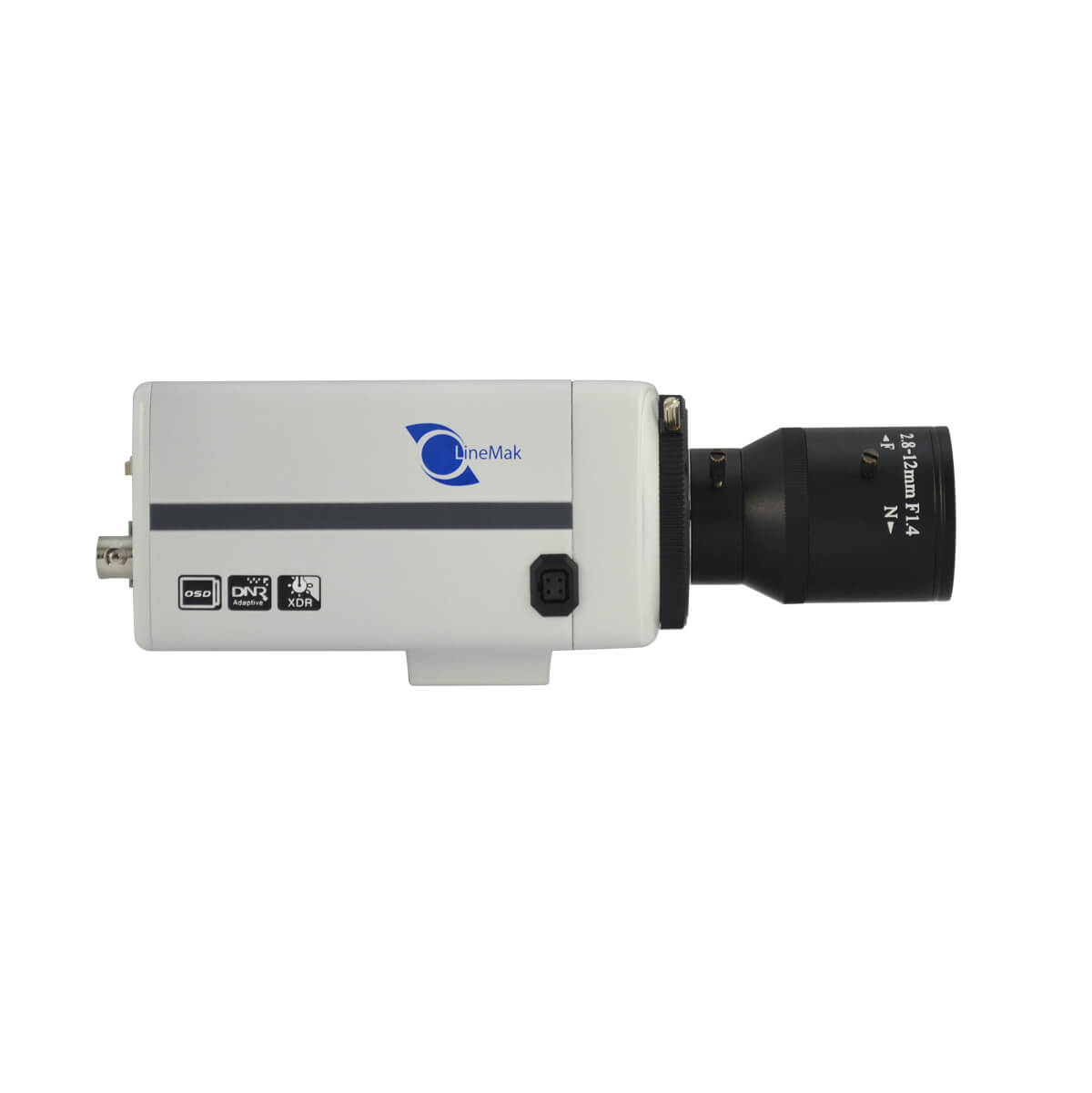

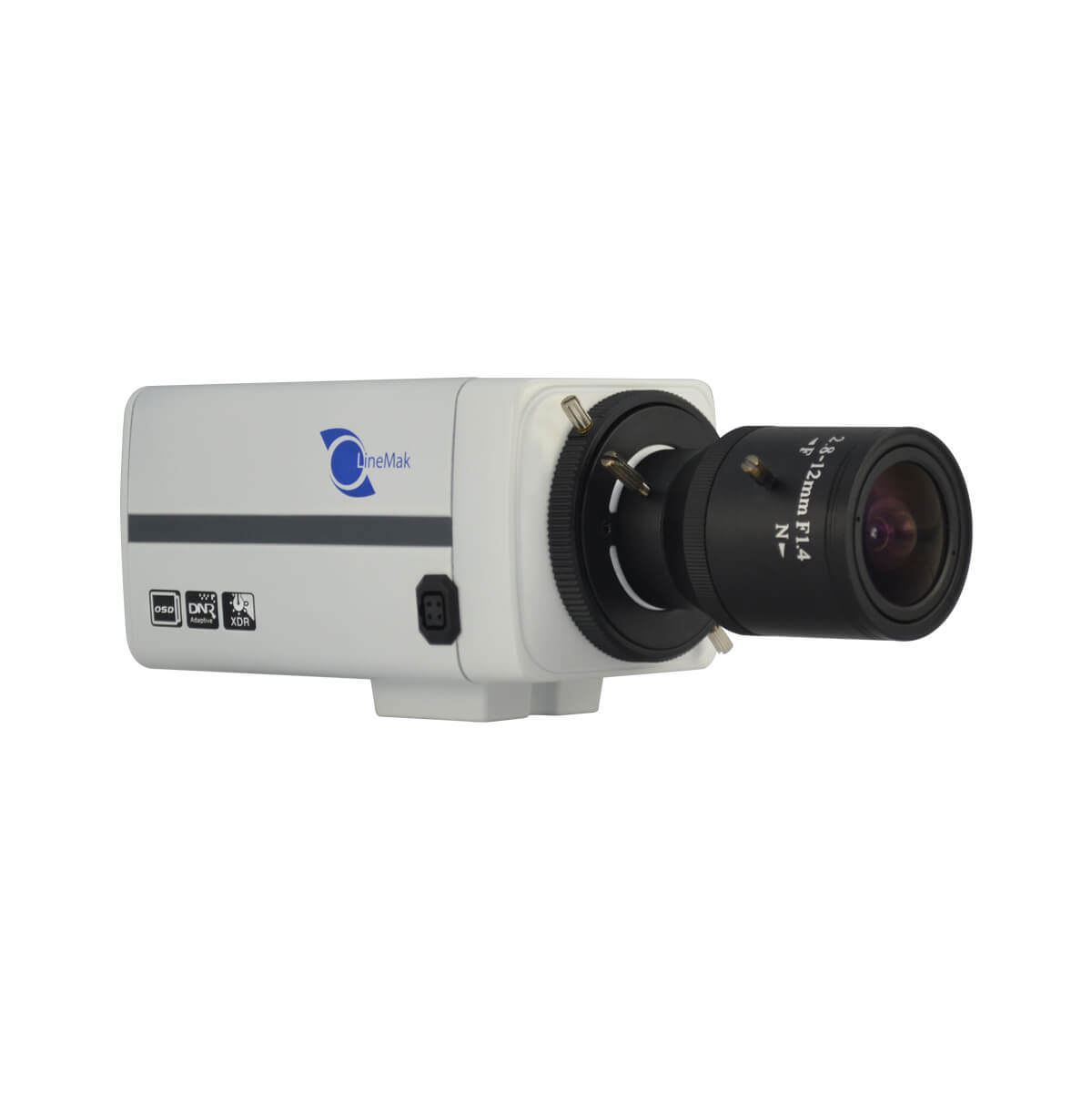

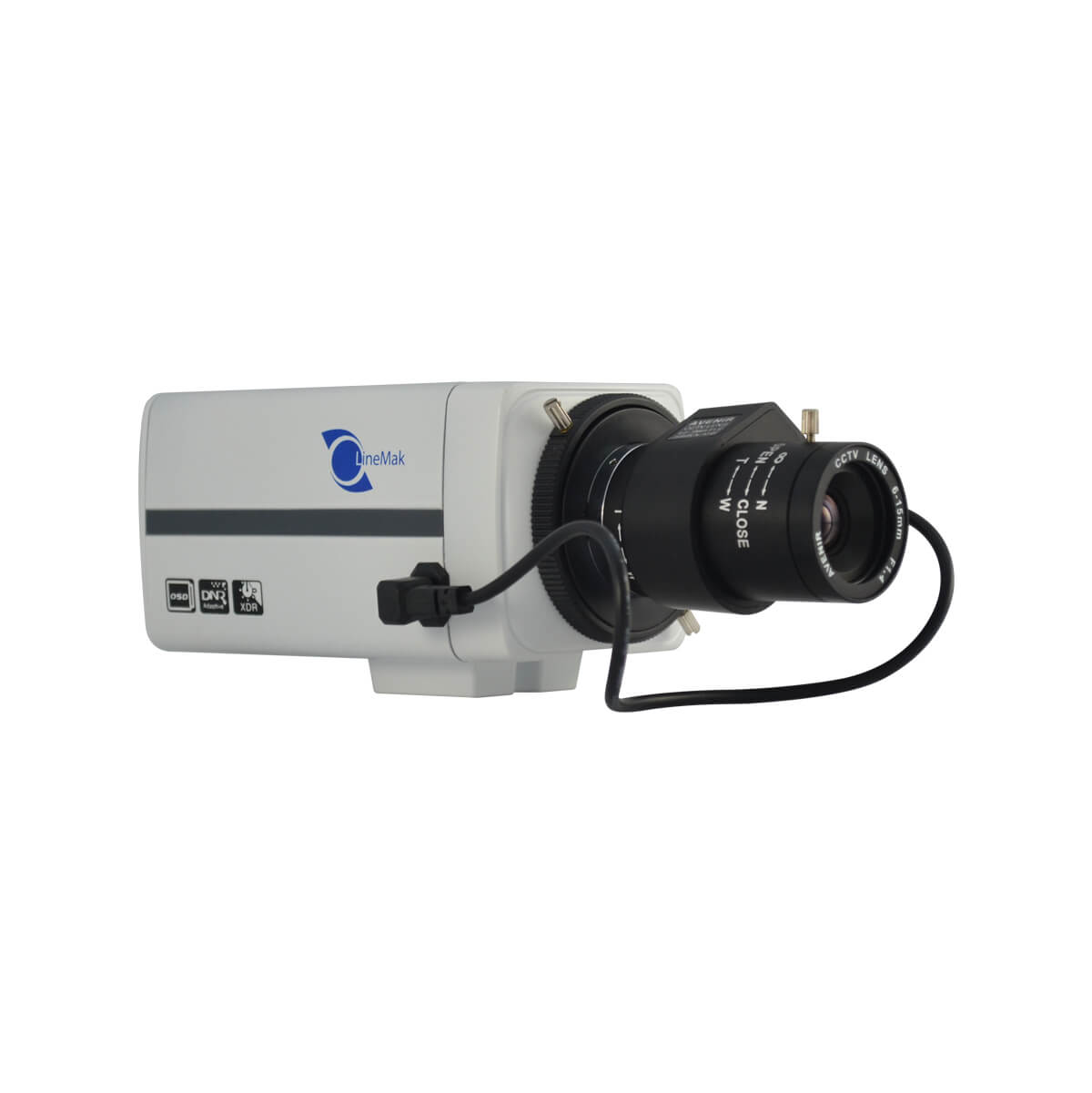

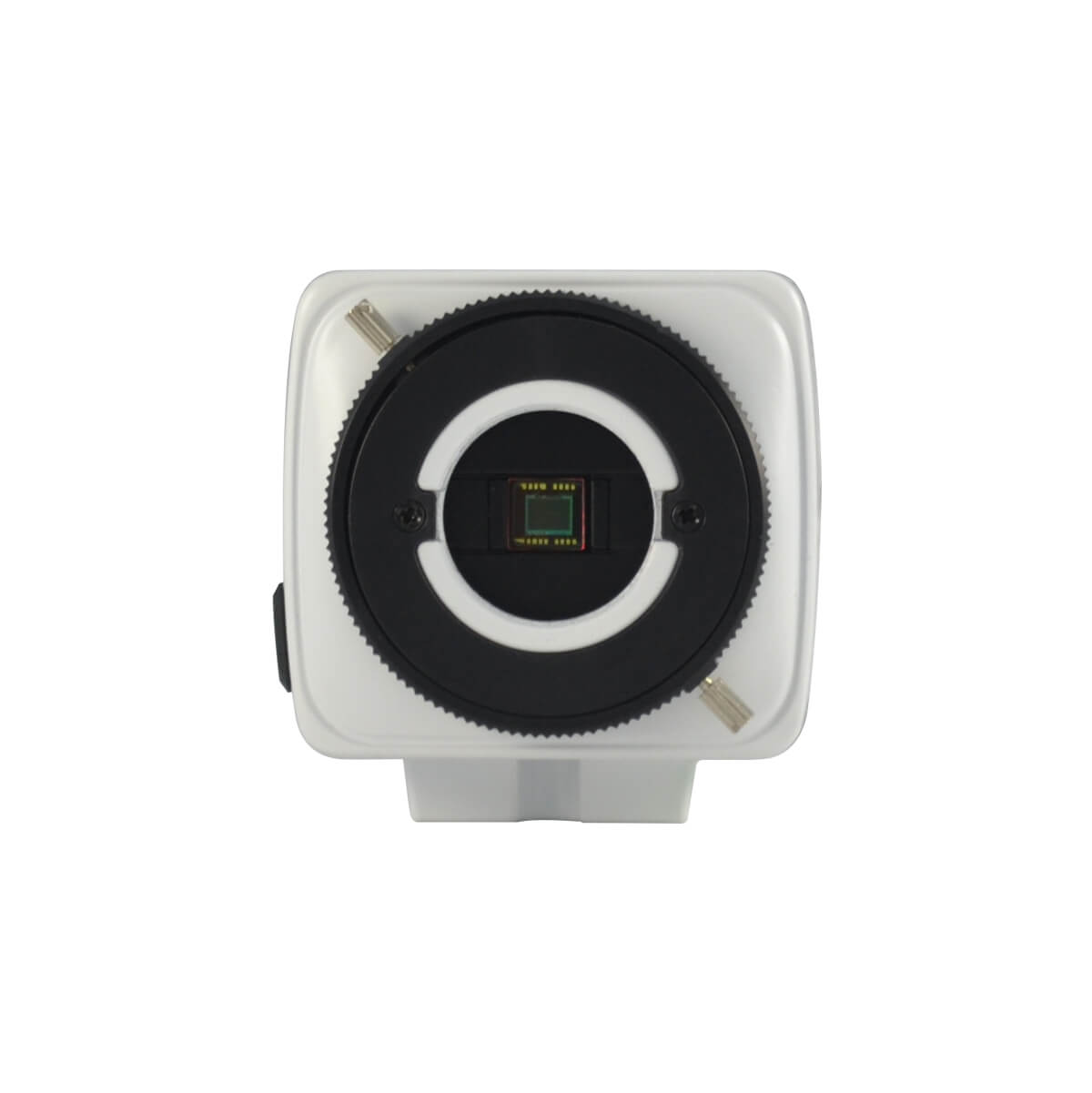

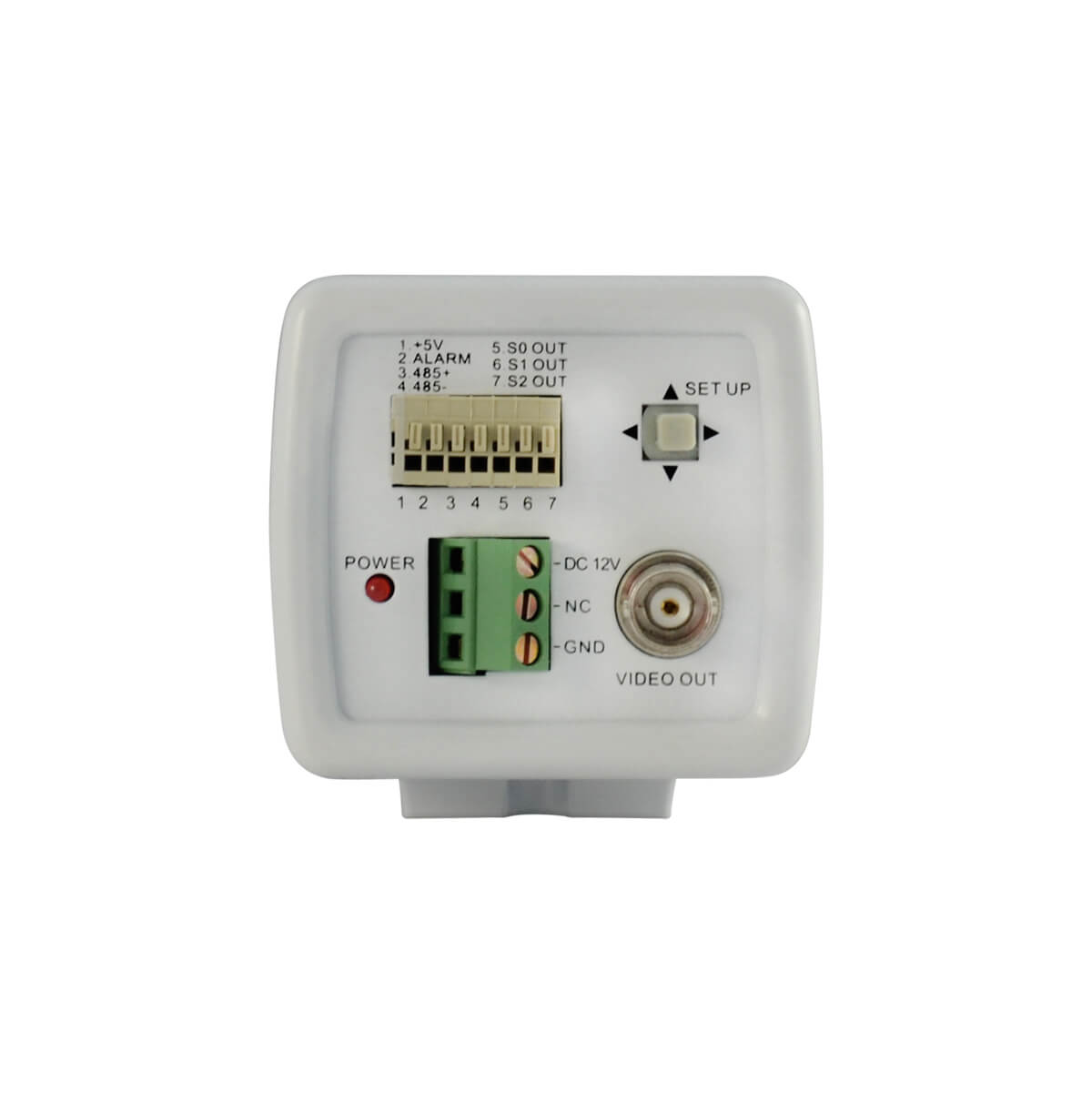

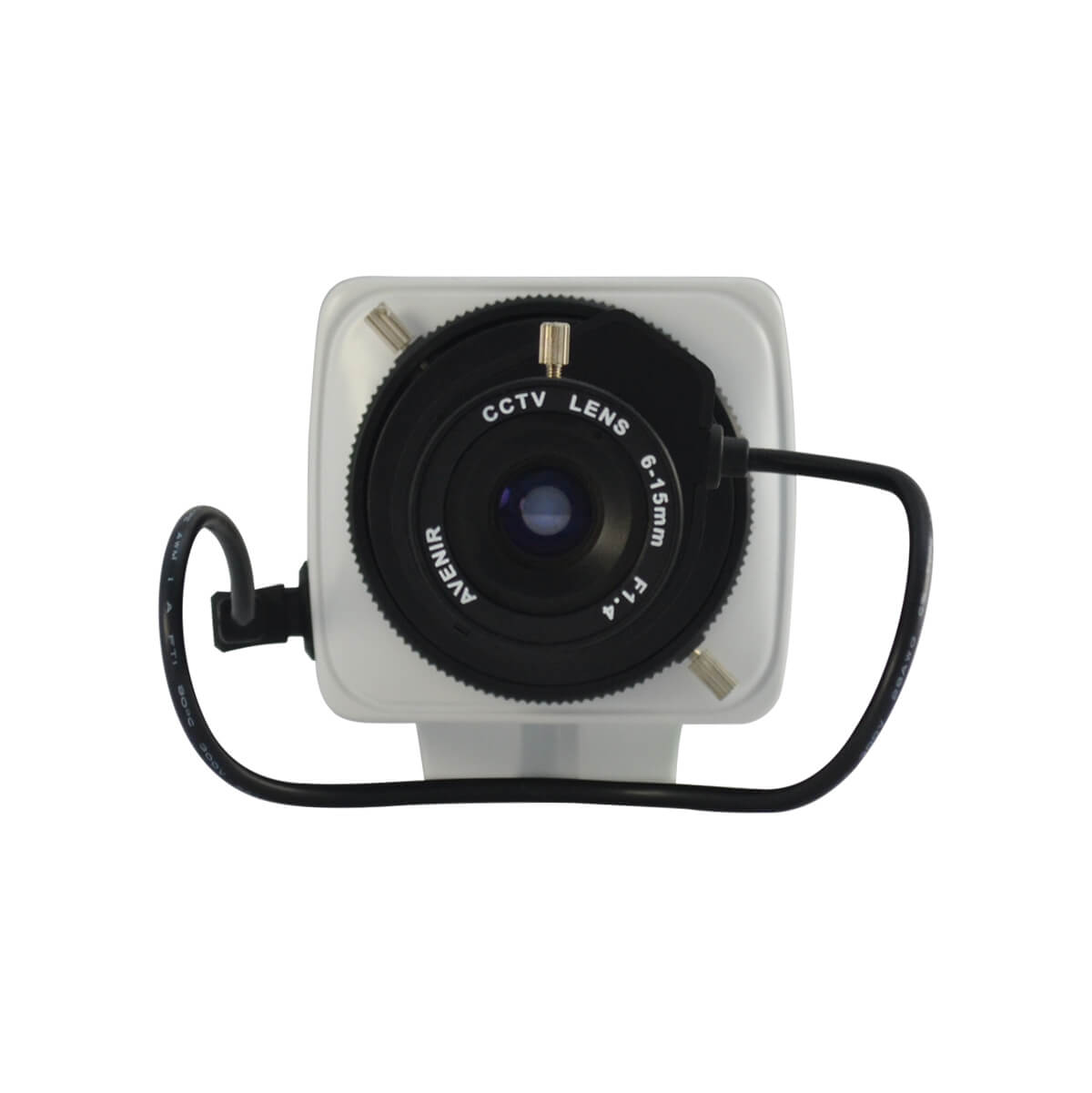

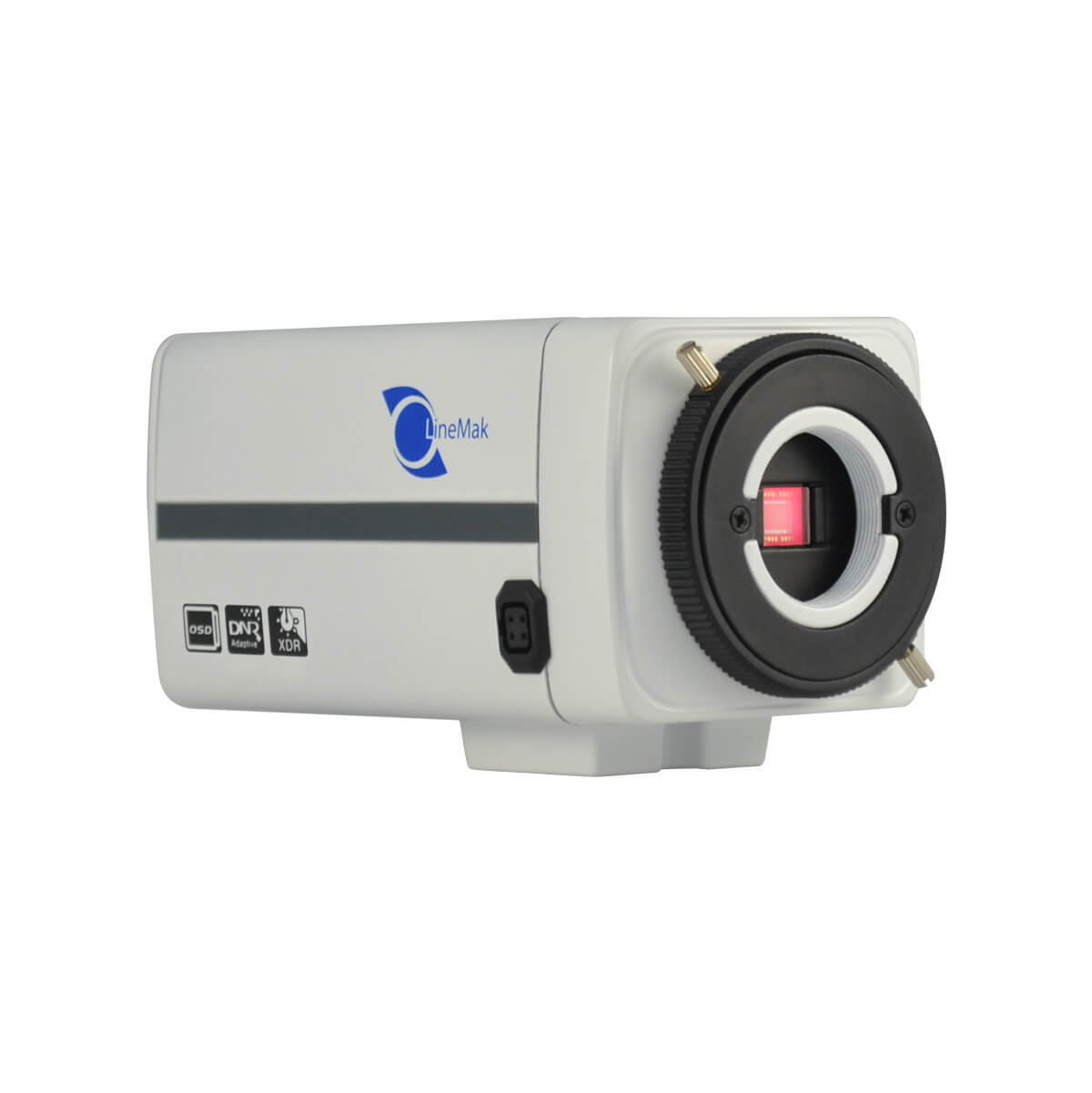

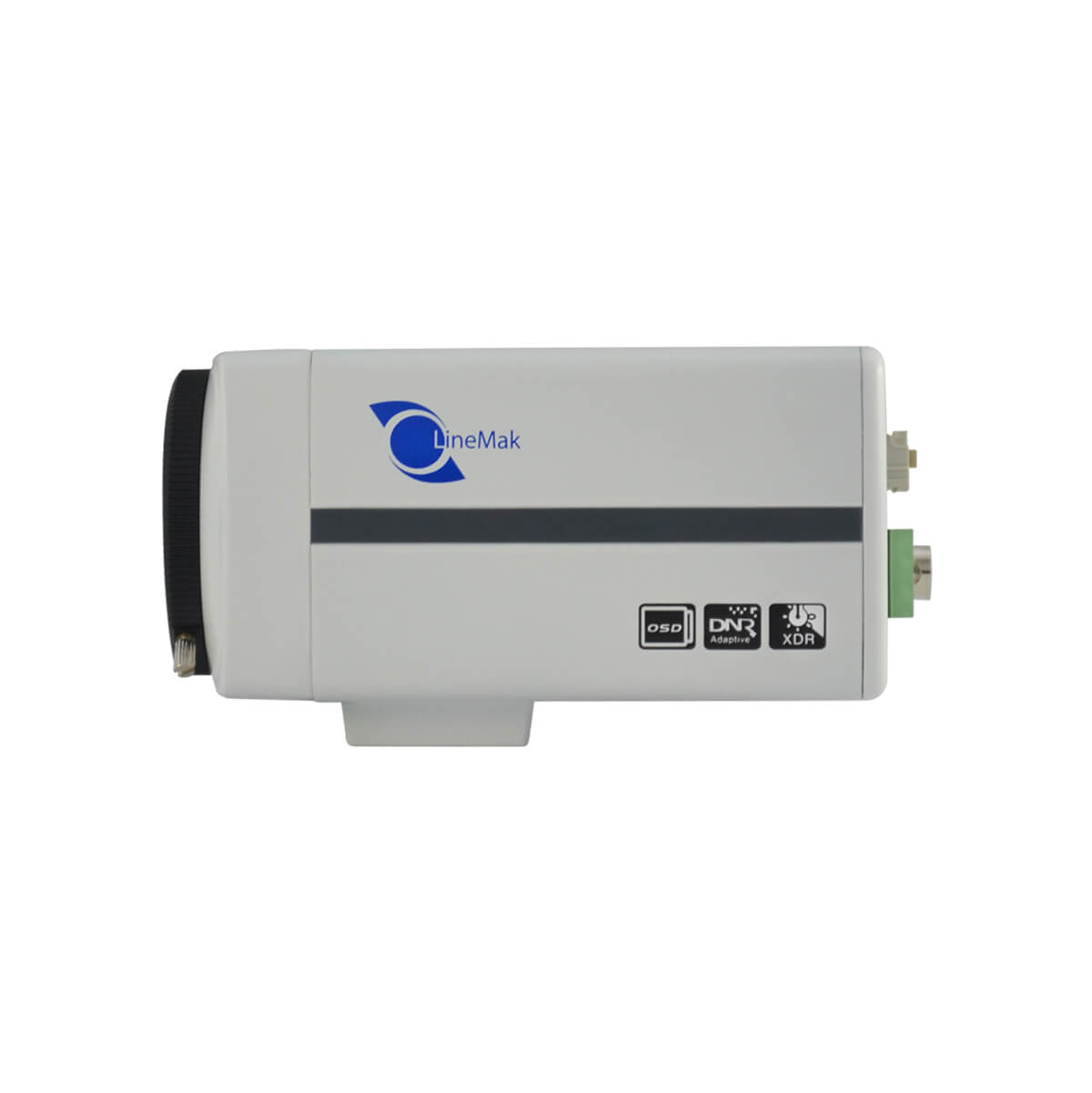

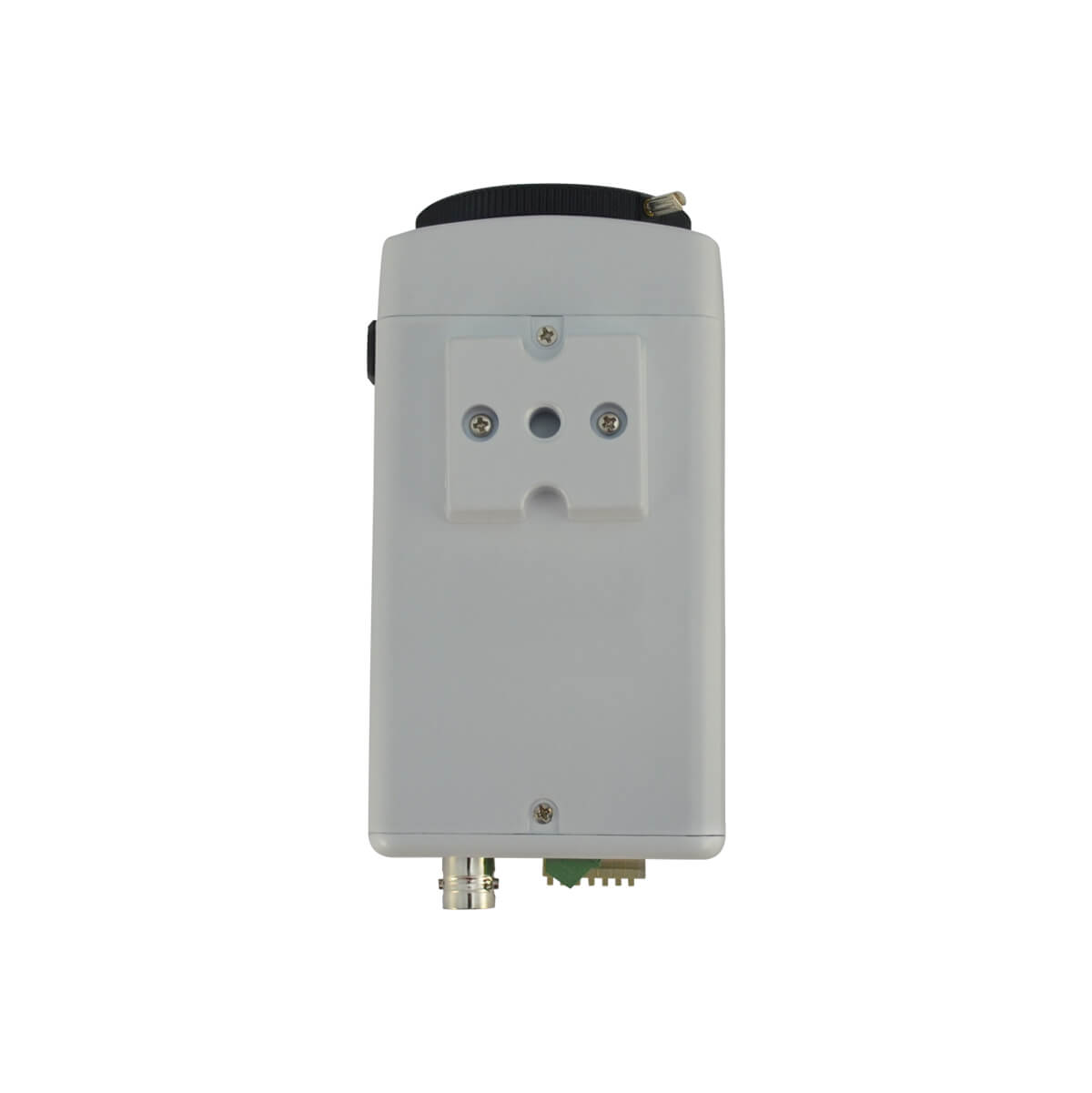

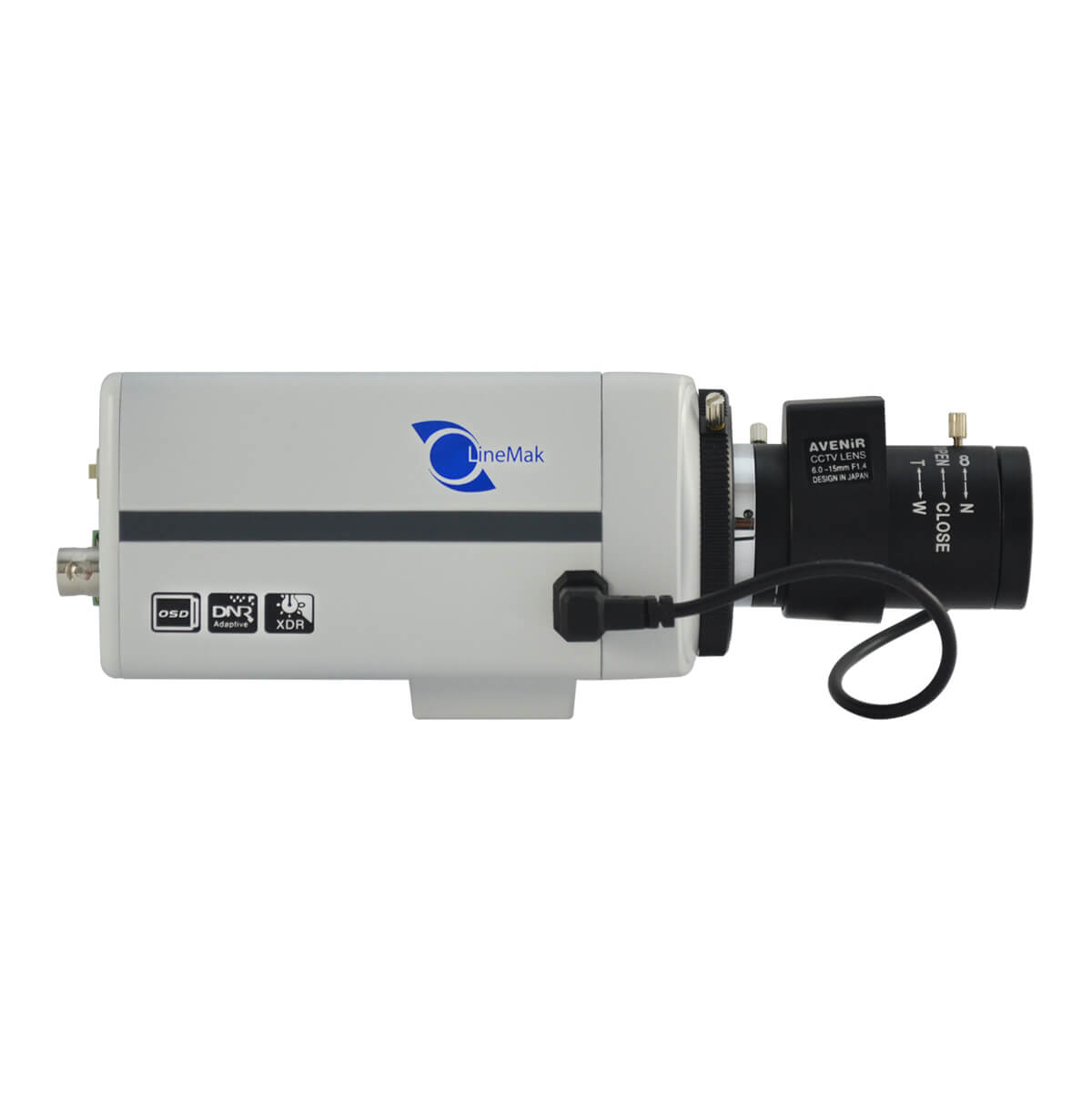

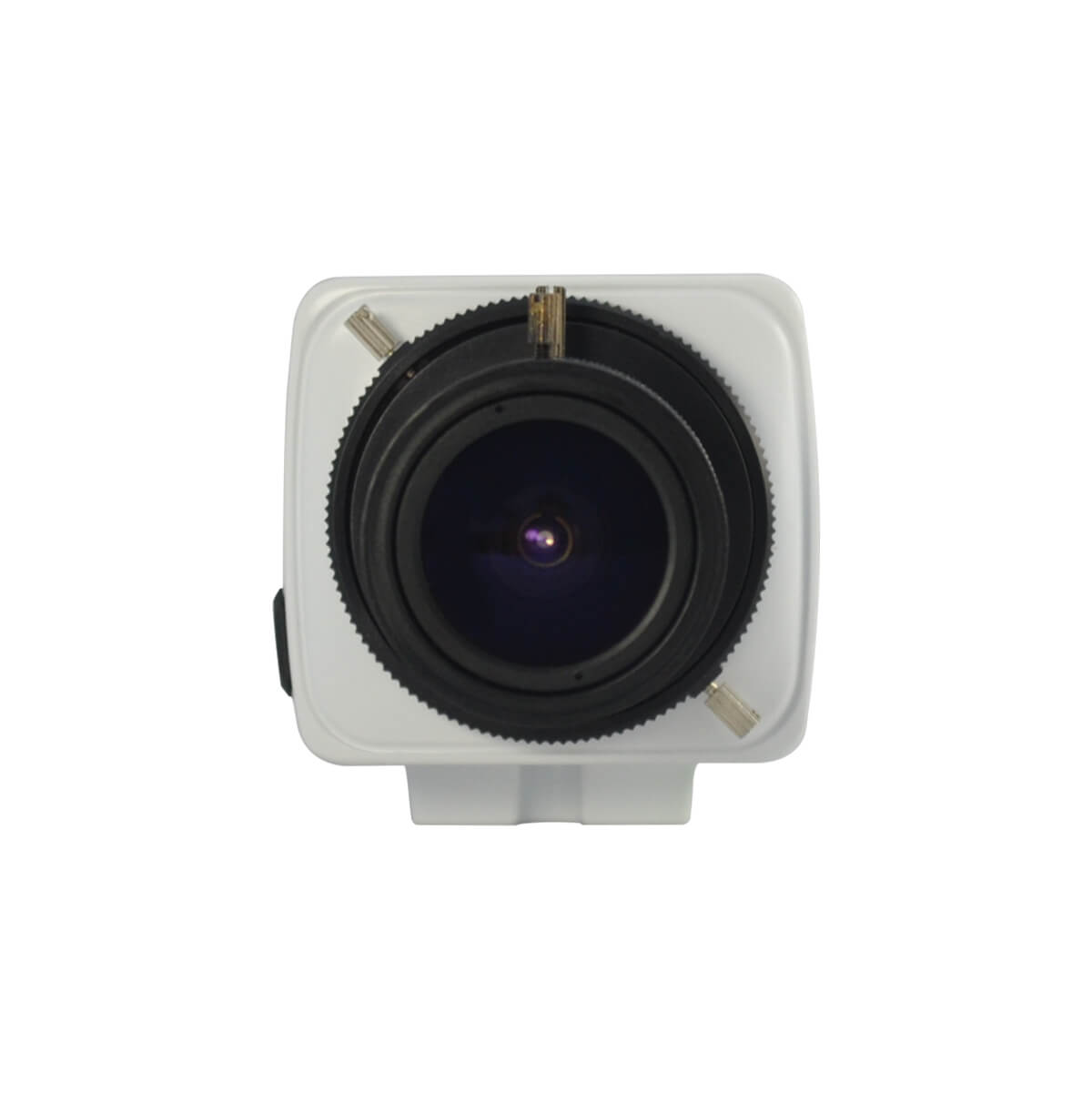

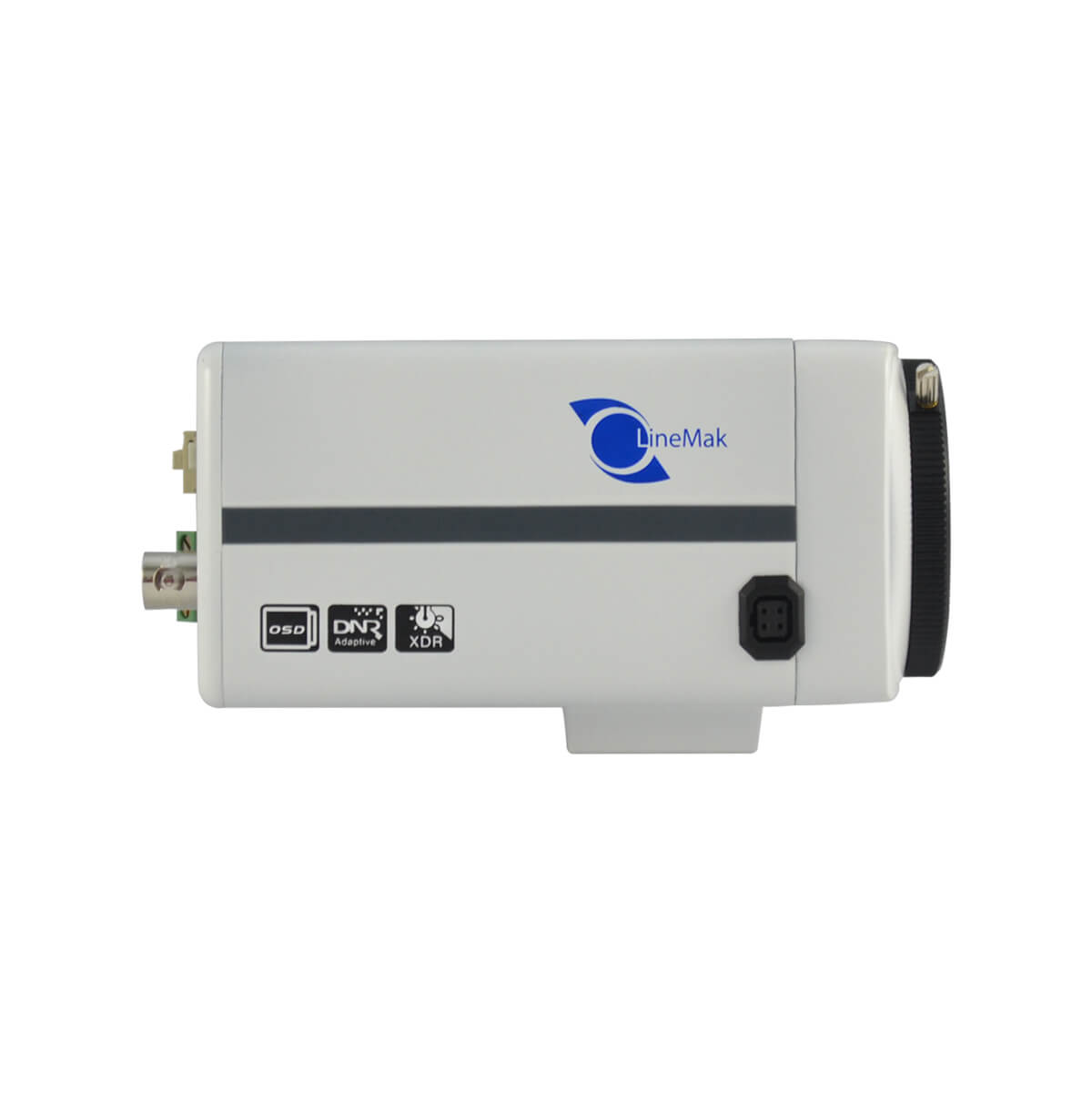

Metal high-resolution box camera with a lens CS mount.

Top of the line equipment regarding sensor and driver.

This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

Power adapter not included.
This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

Lens not included.
This camera does not include Lens since it depends on the requirement of the installer or consumer. We sell various types of Lens depending on the viewing angles you need. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

Main features:
- OSD menu and DNR function (Super Digital Noise Reduction).
- AWB support function: high color reproduction and real image.
- BLC support function: suitable for objects monitoring under backlight environment.
- AES support function: adapt to different monitoring environment.
- AGC support function: adaptive brightness.

Automatic Gain Control (AGC)

Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.

Automatic Electronic Shutter (AES)

To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.

Auto White Balance (AWB)

Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.

Back Light Compensation (BLC)

In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.

OSD Menu

Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.

Highlight Compensation (HLC)

Differently from BLC, stands for highlight compensation. Camera can detect the strong spots and then reduce the brightness of the strong spots to improve the overall images. This function is mainly designed so cameras capture vehicle plate license.

Digital Noise Reduction (DNR)

DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions. It makes images clearer and reduces video file size and reduces the visibility of the random noise during playback of the video.

Warranty: One (1) Year

Box camera, 1/3 SONY CCD Sensor, 700TVL, OSD menu.
General
Brand	LineMak
Model	LS-CB160A
Sensor
Resolution	700TVL
Sensor	1/3" SONY Effio Exview HAD CCD II
Effective pixels	PAL: 752582 NTSC:* 768*494
Video
Video format	PAL / NTSC
Video output	1.0Vp-p, 75ohm
Lens
Minimum illumination	0 Lux (with LED on)
Environment
Operation temperature	-20Â°C ~ 50Â°C -4Â°F ~ 122Â°F
Power
Power supply	DC 12V
Power consumption	500mA
Appearance
Color	White
Size	4.33 (L) * 2.36 (H) * 2.56 (W) inches
Weight	11.64 ounces
Special function
Back Light Compensation (BLC)	Yes
Auto White Balance (AWB)	Yes
Electronic shutter speed (AES)	PAL: 1/50~1/100,000s NTSC: 1/60~1/100,000s
Auto Gain Control (AGC)	Yes
Digital Noise Reduction (DNR)	Yes (2D-NR)
Wide Dynamic Range (WDR)	No
Mirror	No
Adaptive Tone Reproduction (ATR)	Yes
High Light Compensation (HLC)	Yes
Calling routing system (CRS)	Yes
Standard
Scanning system	2:1 Interlace
Synchronizing system	Internal
S/N Ratio	>48dB
Gamma correction	0.45
OSD Menu	Yes
